ID-FLX Lite & Telecom Global Guide
84

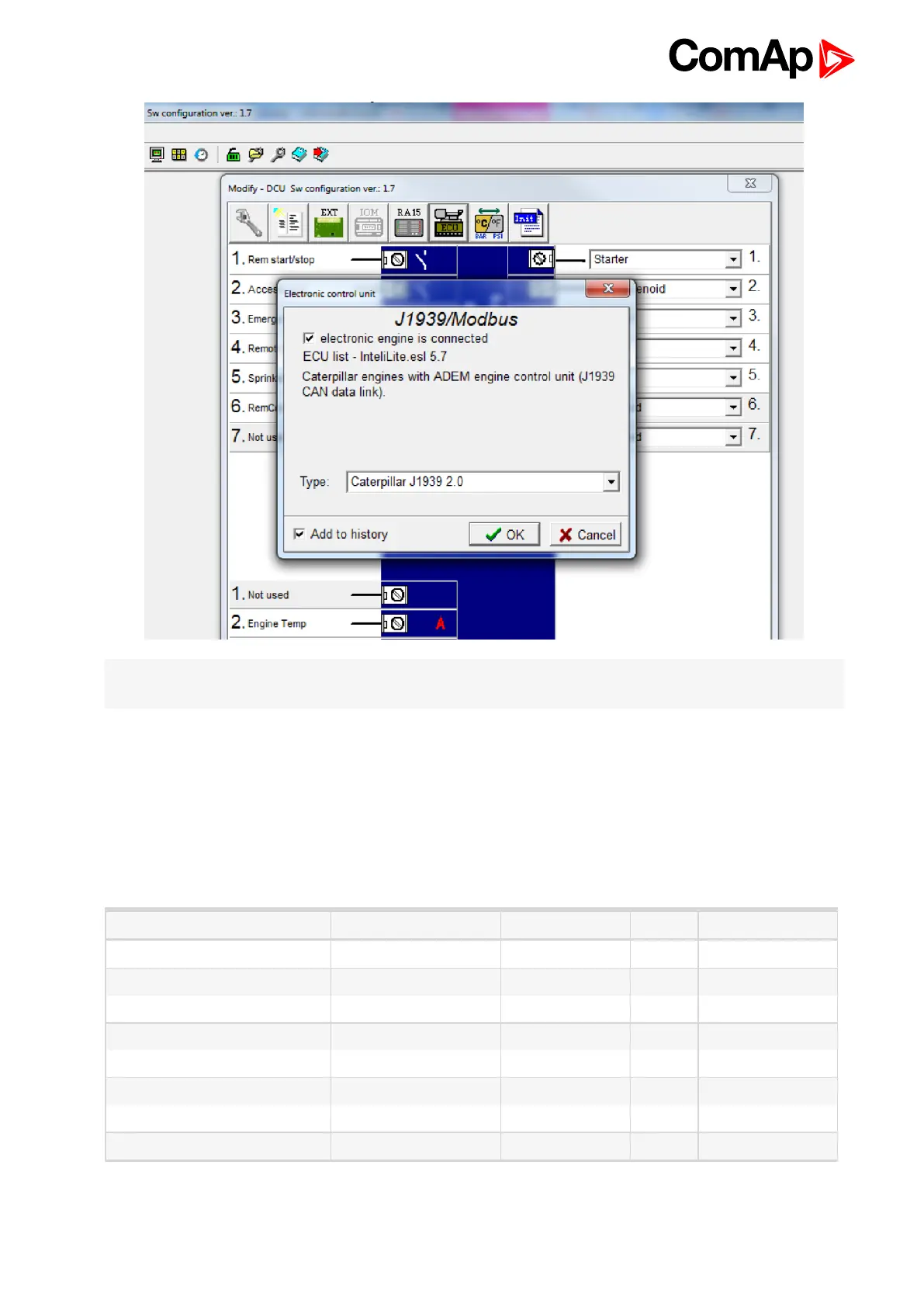

Note: If the connected engine is Cummins communicating via RS232, it is necessary to set the setpoint Basic
settings: COM1 mode (or COM2 mode if IL-NT RS232-485) = ECULINK.
Loss of communication causes shutdown of the running engine. On the contrary, the ECU can be switched off
at quiescent engine that means not-communicating ECU is in that moment normal situation. All values from
ECU shall show ####, but no alarm is displayed. The output ECU CommOK follows the real situation that
means it is not active anytime when the ECU does not communicate.
The ECU PWRRELAY (PAGE 215) closes at the beginning of prestart and opens if the engine shall be stopped.
The engine is started via standard contact output or via CAN bus.
Value name Short name Dimension Type Frame name
EngOil Filter Diff.Press OilDiffPres bar ANA DD
Amber Warning Lamp AmberWrnLamp - BIN DM1
Malfunction Lamp MalfunctLamp - BIN DM1
Protect Lamp ProtectLamp - BIN DM1
Red Stop Lamp RedStopLamp - BIN DM1
Engine speed RPM RPM ANA EEC1
Engine Oil Pressure EngOil Press bar ANA EFLP1
Coolant Temp Coolant Temp °C ANA AT1
Practical examples of values read from ECU
