DES-3028 DES-3028P DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
TOS Priority Settings
When using the TOS/DSCP priority mechanism, the packet is classified based on the TOS/DSCP field in the IP header. If
the tag is present, the packet is assigned to a programmable egress queue based on the value of the tagged priority. The
tagged priority can be designated to any of the available queues. When TOS is set to enable, DSCP cannot be used, and
when DSCP is set to enable, TOS cannot be used.
TOS Priority Settings can be specified on this window. Use the drop-down menus to select a value for TOS and Class ID.
In the CoS folder, click TOS Priority Settings, to view the window shown below:

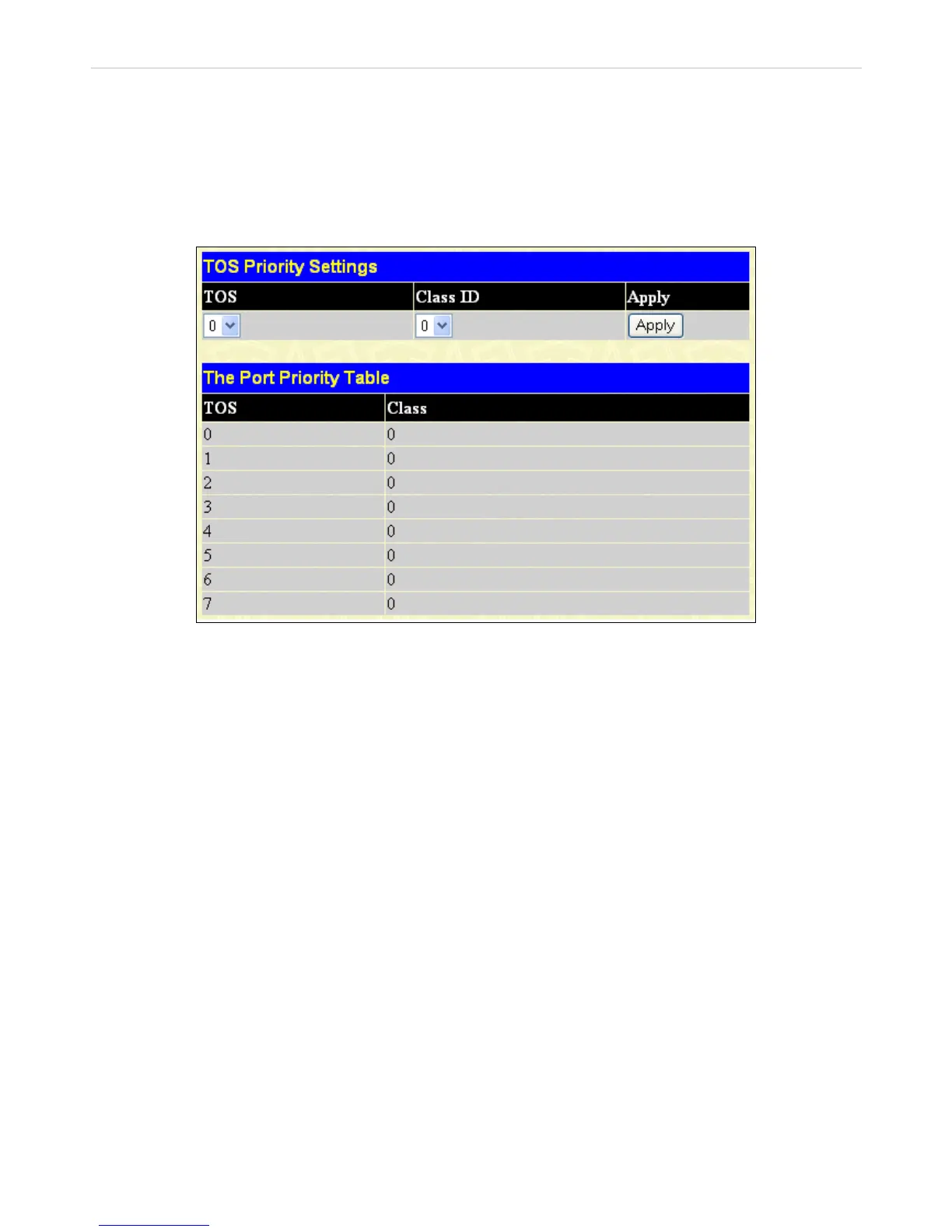

Figure 8- 8. TOS Priority Settings window
Click Apply to implement changes made.
107
