DES-3028 DES-3028P DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
Add to group - Add a candidate to a group. Clicking this option will reveal the following dialog for the user to enter
a password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter
the password or Cancel to exit the window.
•

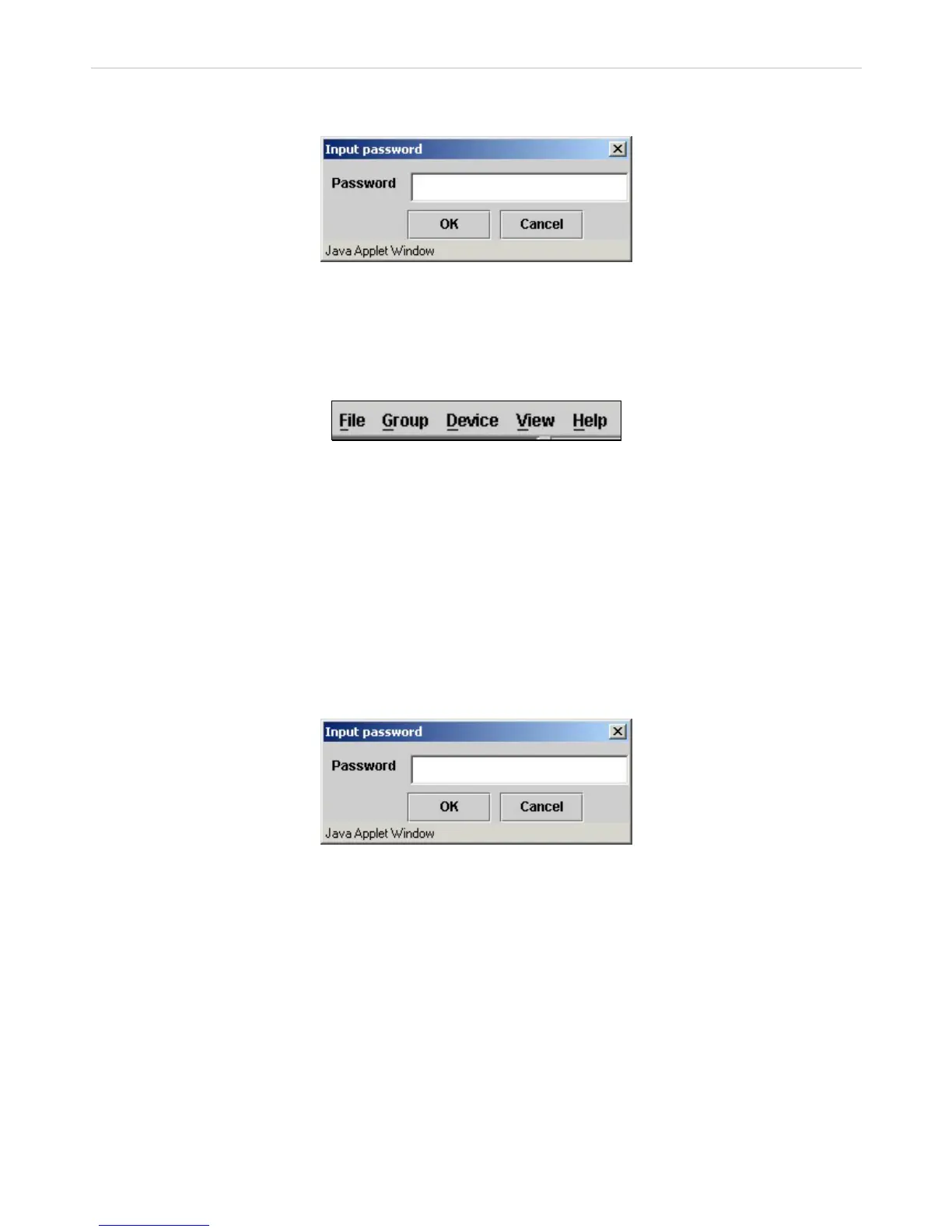

Figure 6- 54. Input password window
Property - To pop up a window to display the device information, as shown below. •
Menu Bar
The Single IP Management window contains a menu bar for device configurations, as seen below.
Figure 6- 55. Menu Bar of the Topology View
The five menus on the menu bar are as follows.
File
Print Setup - Will view the image to be printed. •
•
•
•
Print Topology - Will print the topology map.
Preference - Will set display properties, such as polling interval, and the views to open at SIM startup.
Group
Add to group - Add a candidate to a group. Clicking this option will reveal the following dialog for the user to enter
a password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter
the password or Cancel to exit the window.
Figure 6- 56. Input password window
Remove from Group - Remove an MS from the group. •
•
•
•
•
Device
Configure - Will open the web manager for the specific device.
View
Refresh - Update the views with the latest status.
Topology - Display the Topology view.
Help
About - Will display the SIM information, including the current SIM version.
68
