DES-3028 DES-3028P DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
Section 9
ACL
Time Range
Access Profile Table
CPU Interface Filtering
Time Range
The DES-3028/28P/52/52P Switches allow you to configure a time period durring each Access Profile will be active. Use the
window below to name the time range and then specify when the Access Profile that will be configured below will be active.

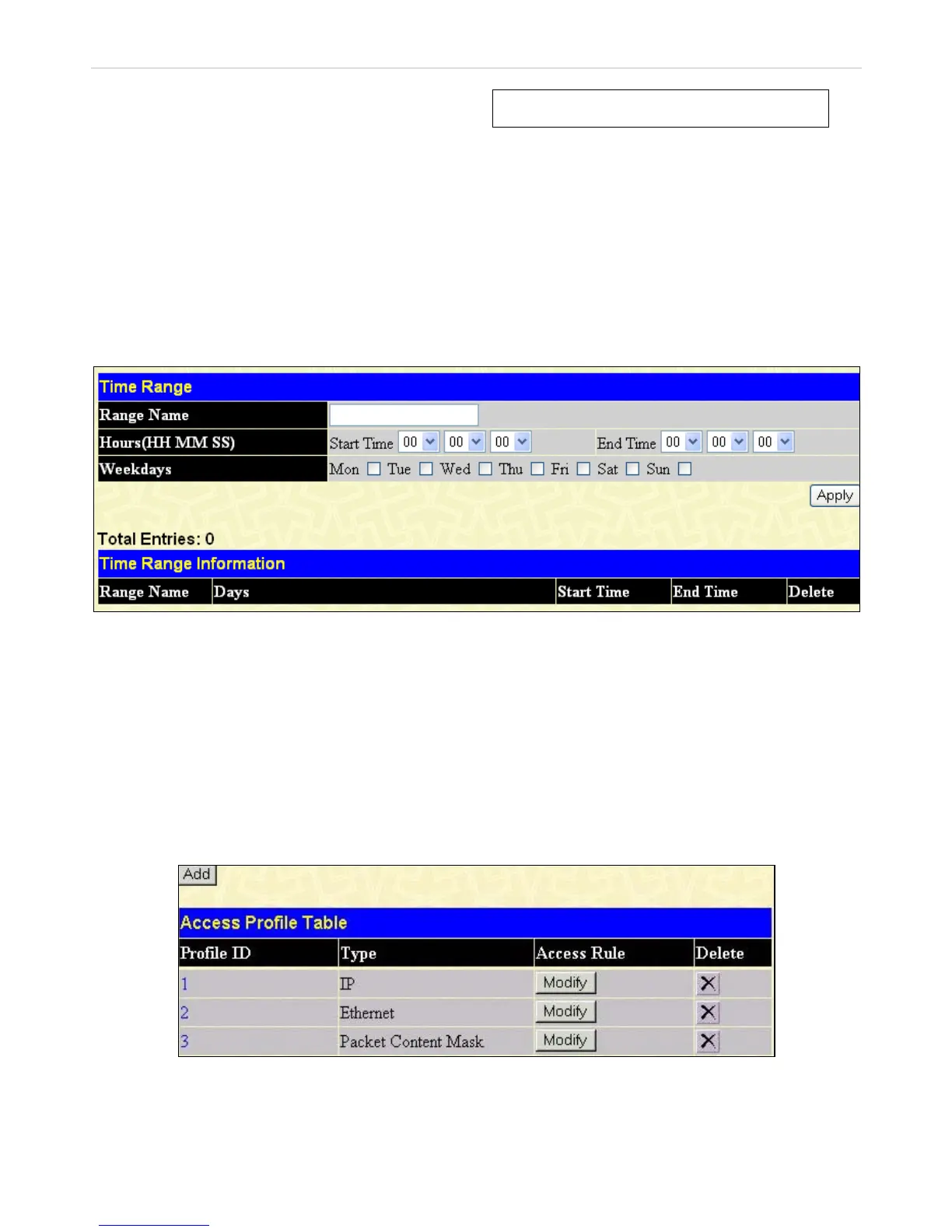

Figure 9- 1. Time Range window
Press the Apply button to make the time range current.
Access Profile Table
Access profiles allow you to establish criteria to determine whether or not the Switch will forward packets based on the
information contained in each packet's header.
Creating an access profile is divided into two basic parts. The first is to specify which part or parts of a frame the Switch will
examine, such as the MAC source address or the IP destination address. The second part is entering the criteria the Switch will use
to determine what to do with the frame.
To display the currently configured Access Profiles on the Switch, open the Configuration folder and click on the Access Profile
Table link. This will open the Access Profile Table window, as shown below.
Figure 9- 2. Access Profile Table window
To add an entry to the Access Profile Table, click the Add Profile button. This will open the Access Profile Configuration
window, as shown below. There are three Access Profile Configuration windows; one for Ethernet (or MAC address-based)
profile configuration, one for IP address-based profile configuration and one for the Packet Content Mask. You can switch
112
