D-Link DES-3052P User Manual

DES-3028 DES-3028P DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
DSCP Priority Settings
When using the DSCP/TOS priority mechanism, the packet is classified based on the DSCP/TOS field in the IP header. If the tag
is present, the packet is assigned to a programmable egress queue based on the value of the tagged priority. The tagged priority
can be designated to any of the available queues. When DSCP is set to enable, TOS cannot be used, and when TOS is set to
enable, DSCP cannot be used
DSCP Priority Settings can be specified on this window. Enter a DSCP value and select a Class ID between 0 and 3.
In the CoS folder, click DSCP Priority Settings, to view the window shown below:

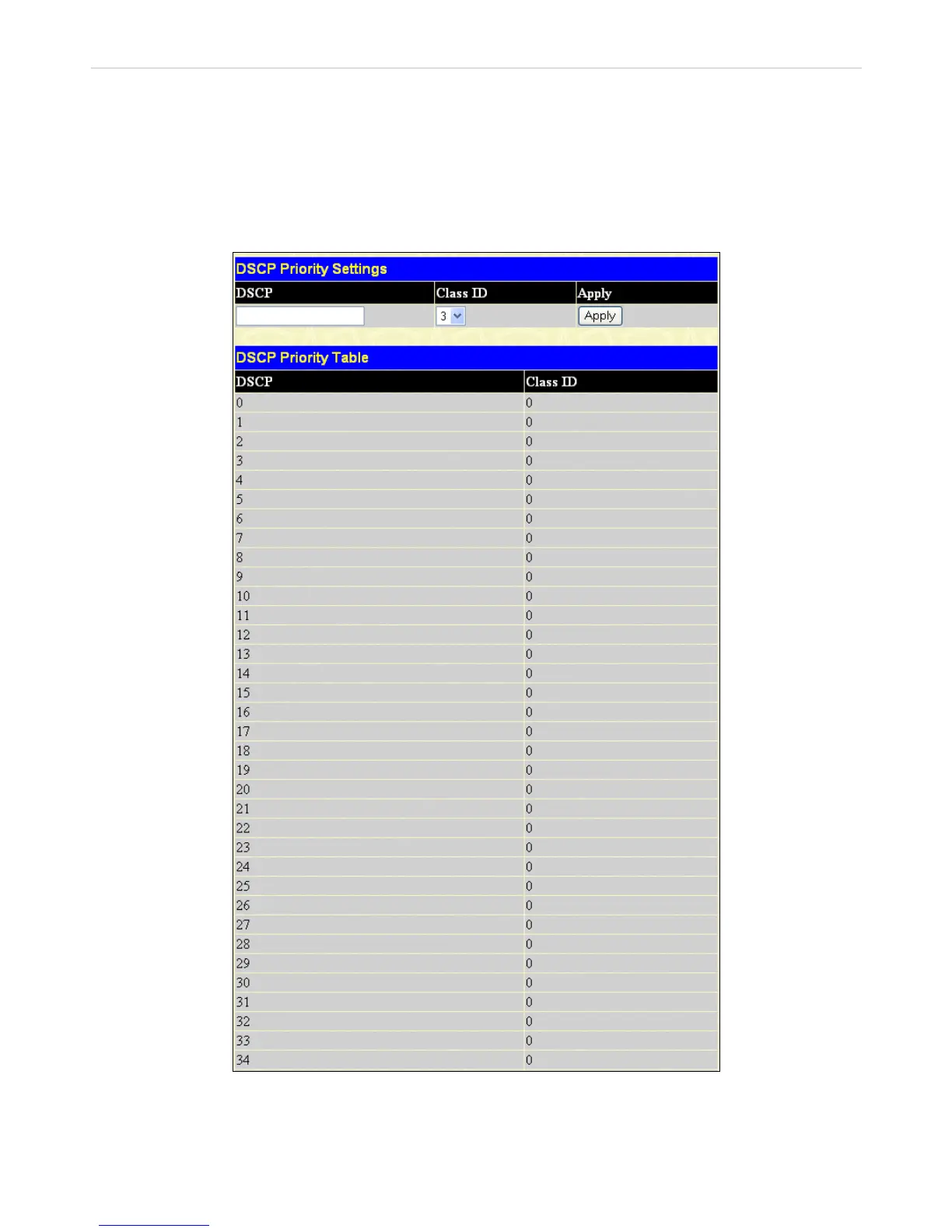

Figure 8- 9. DSCP Priority Settings window
Click Apply to implement changes made.
108

D-Link DES-3052P Specifications

General

PoE	Yes
PoE Budget	370W
MAC Address Table	8K entries
Jumbo Frame Support	Yes
Dimensions (W x D x H)	440 x 44 x mm
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Power Consumption	Max 400W
Input Voltage	100 to 240 VAC, 50/60 Hz
Ports	48 x 10/100 Mbps PoE ports, 4 x 10/100/1000 Mbps uplink ports
