DES-3028 DES-3028P DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch

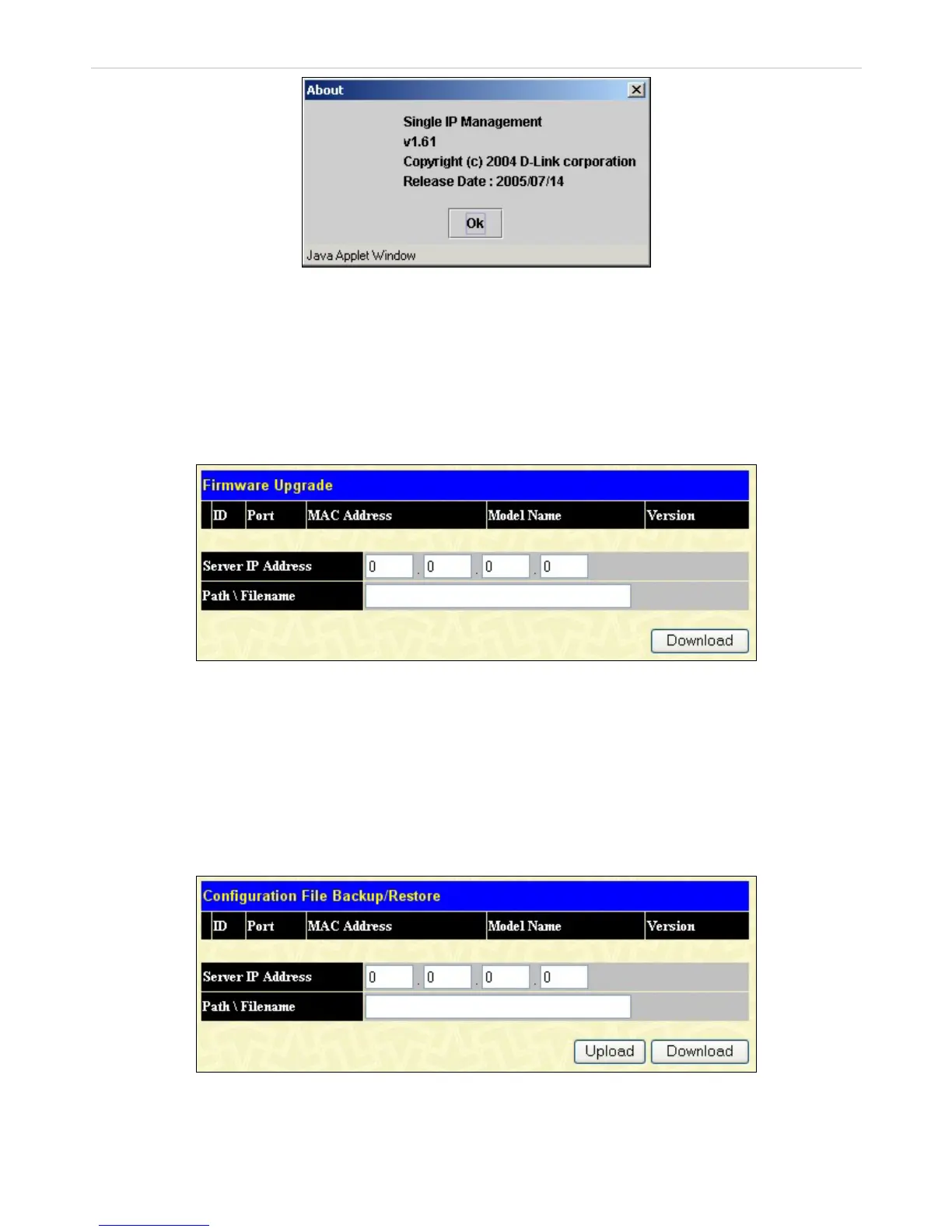

Figure 6- 57. About window
Firmware Upgrade
This screen is used to upgrade firmware from the Commander Switch to the Member Switch. To access the following window,
click Administration > Single IP Management Settings > Firmware Upgrade. Member Switches will be listed in the table and
will be specified by Port (port on the CS where the MS resides), MAC Address, Model Name and Version. To specify a certain
Switch for firmware download, click its corresponding check box under the Port heading. To update the firmware, enter the
Server IP Address where the firmware resides and enter the Path/Filename of the firmware. Click Download to initiate the file
transfer.
Figure 6- 58. Firmware Upgrade window
Configuration Backup/Restore
This screen is used to upgrade configuration files from the Commander Switch to the Member Switch using a TFTP server.
Member Switches will be listed in the table and will be specified by Port (port on the CS where the MS resides), MAC Address,
Model Name and Version. To specify a certain Switch for upgrading configuration files, click its corresponding radio button
under the Port heading. To update the configuration file, enter the Server IP Address where the file resides and enter the
Path/Filename of the configuration file. Click Download to initiate the file transfer from a TFTP server to the Switch. Click
Upload to backup the configuration file to a TFTP server. To access the following window, click Administration > Single IP
Management Settings > Configuration Backup/Restore.
Figure 6- 59. Configuration File Backup/Restore window
69
