Clicking this button clears all statistics counters on this window.
Packets
The Web Manager allows various packet statistics to be viewed as either a line graph or a table. Six windows are offered.
Received (RX)
Click the Received (RX) link in the Packets folder of the Monitoring menu to view the following graph of packets received on
the Switch. To select a port to view these statistics for, use the Port pull-down menu. The user may also use the real-time graphic
of the Switch at the top of the web page by simply clicking on a port.

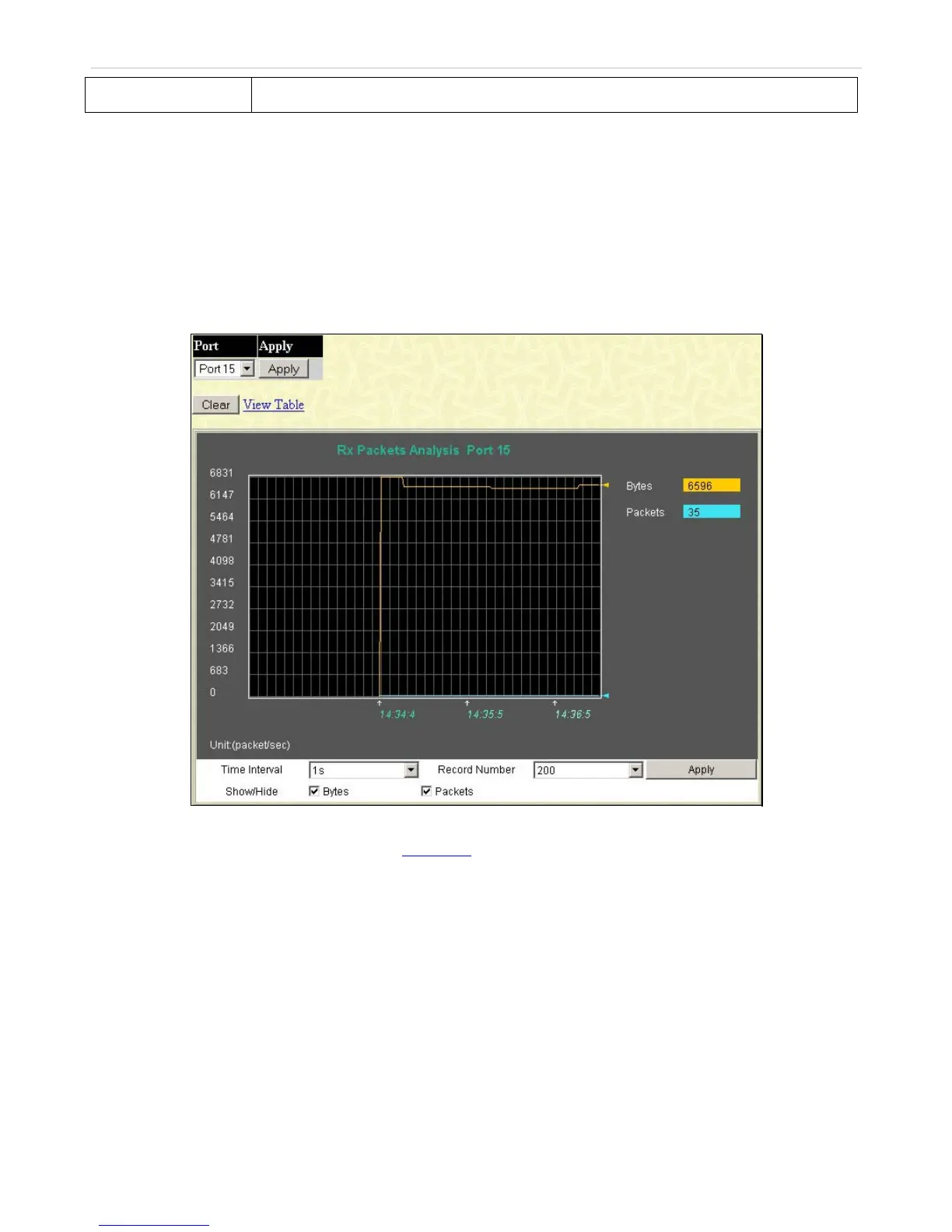

Figure 11- 3. Rx Packets Analysis window (line graph for Bytes and Packets)
To view the Received Packets Table, click the link View Table
, which will show the following table:
