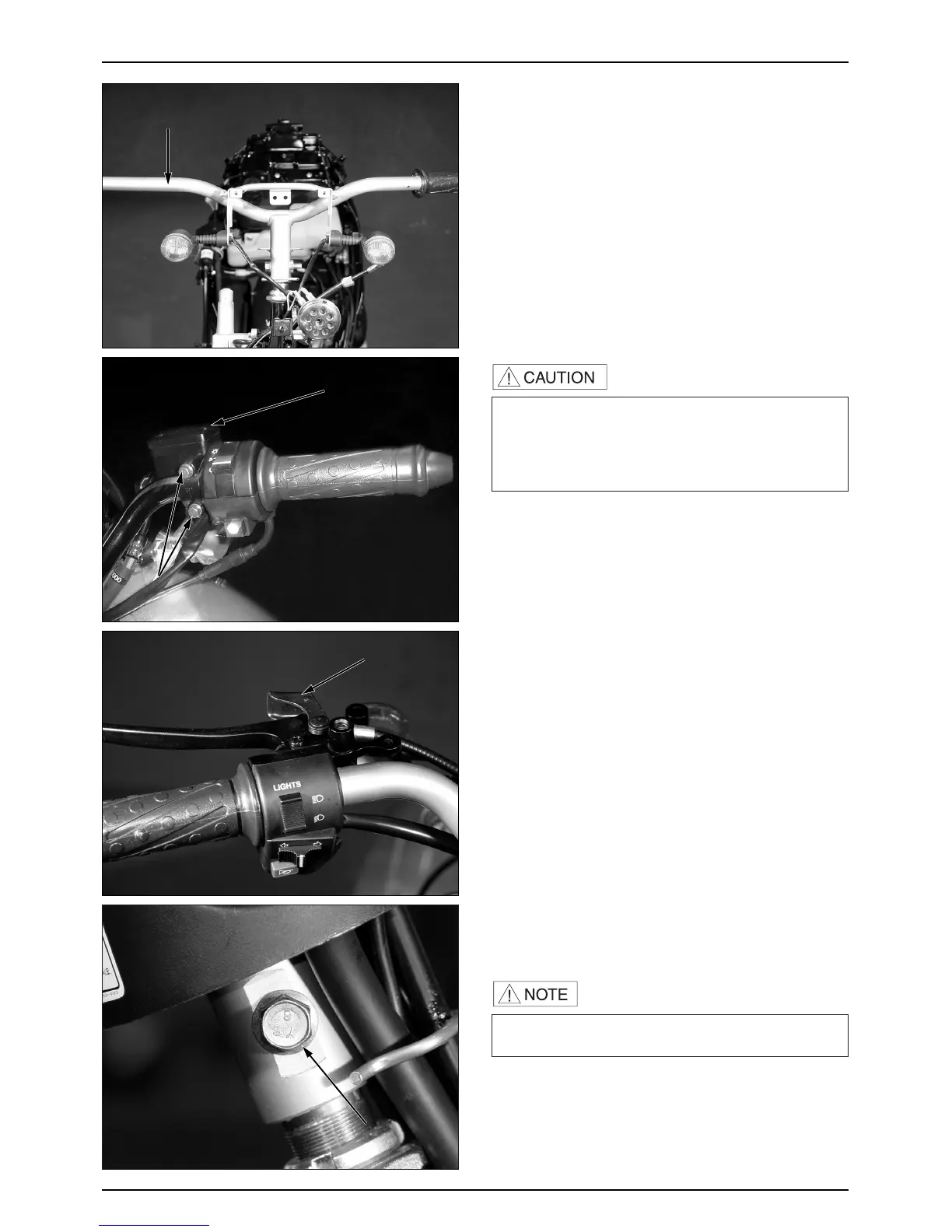

FRONT WHEEL/FRONT FORK/STEERING

STEERING HANDLE

● Remove

- Wind screen.

- Front cover.

- Wire coupler

● Loosen

- Throttle housing fixing pin screw.

● Remove

- Throttle upper/under housing.

- Throttle grip.

● After fixing the master cylinder and then loosen the

two flange bolts, remove the master cylinder.

·Support master cylinder properly to prevent brake

fluid from leaking.

·If the master cylinder is dropped upside down, air

may enter the hydraulic system. Fix it to the vehicle

while maintaining the correct assembled location.

● Loosen the handle bracket fixing washer bolt.

● Remove

- Handle bracket bend.

- Handle bracket.

- L. handle grip.

● Loosen the handle setting U-nut, remove the handle set

collar and flange bolt.

● Remove the rear brake cable, front brake hose,

speedometer cable, handle cable from the guide.

● Remove the steering handle from the steering stem.

INSTALLATION

● Install steering handle to the steering stem.

● Install the handle setting bolt, U-nut, handle set collar.

·When installing the handle setting collar, match it

with the groove accurately.

TORQUE VALUE : 5.0kgf

MASTER CYLINDER

HANDLE BRACKET

HANDLE SETTING BOLT

FLANGE BOLT

STEERING HANDLE
