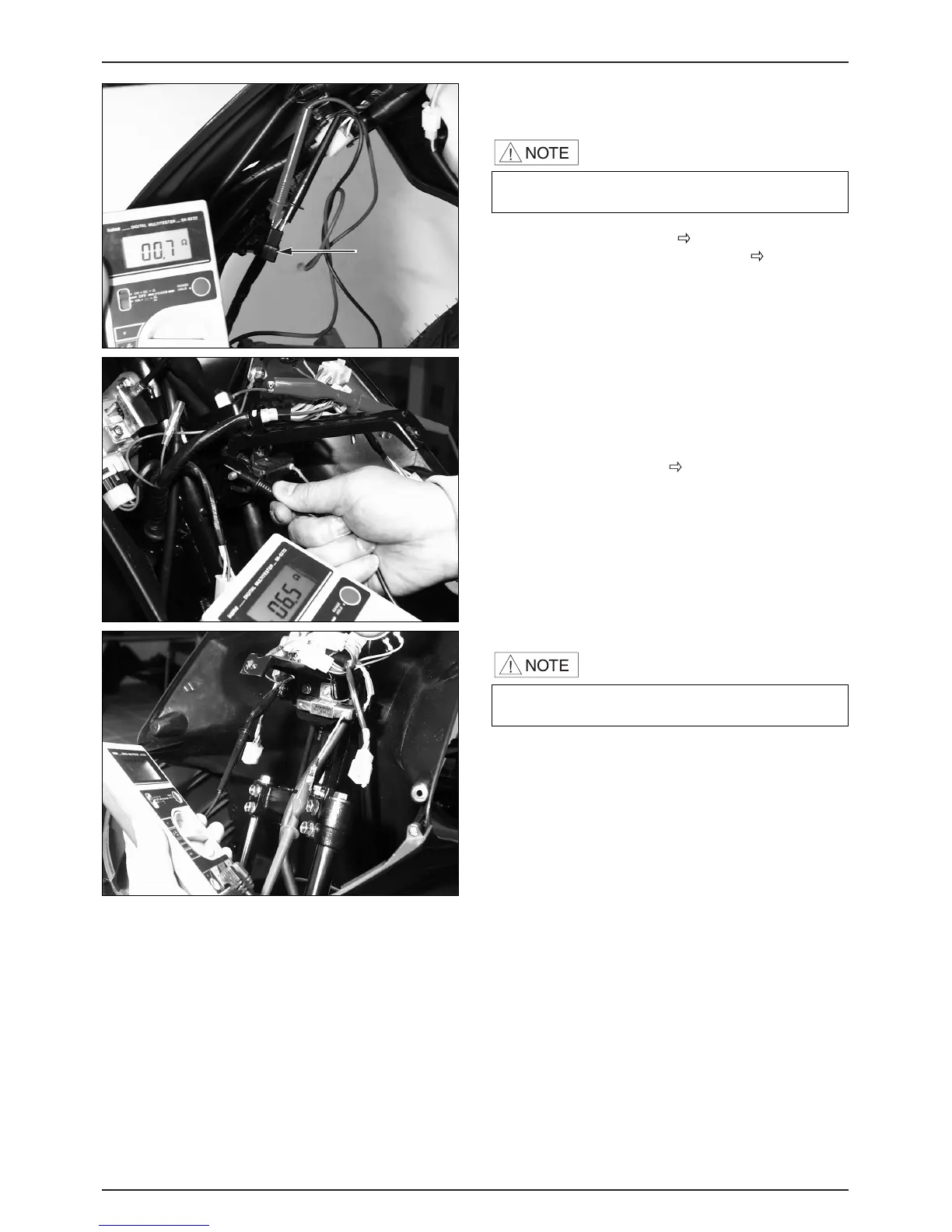

A.C. GENERATOR(CHARGING COIL)
INSPECTION
·This test is done with the starter mounted to the
engine.
● Remove the luggage box. (
3-3 )
● Disconnect the AC generator coupler. (
3-3 )
● Measure the resistance of the charging coil (between
the white wire and ground) and the lighting coil
(between the yellow wire and ground).
STANDARD RESISTANCE (20
℃
)
BETWEEN WHITE WIRE AND GROUND : 0.3~1.2
Ω
BETWEEN YELLOW WIRE AND GROUND : 0.1~1.0
Ω
RESISTER INSPECTION
● Remove the front cover. ( 3-5 )
● Measure the resistance between the register lead wire
and ground.
STANDARD VALUE (20
℃
)
RESISTER (6.7
Ω
5W) GREEN/BLACK/BODY GROUND
: 6.3~7.1
Ω
RESISTER (5.9
Ω
30W)
PINK/BODY GROUND
: 5.6~6.5
Ω
·Problems with the resister are caused by operational
problems of the starter.
13-9
CHARGING SYSTEM/A.C.GENERATOR
