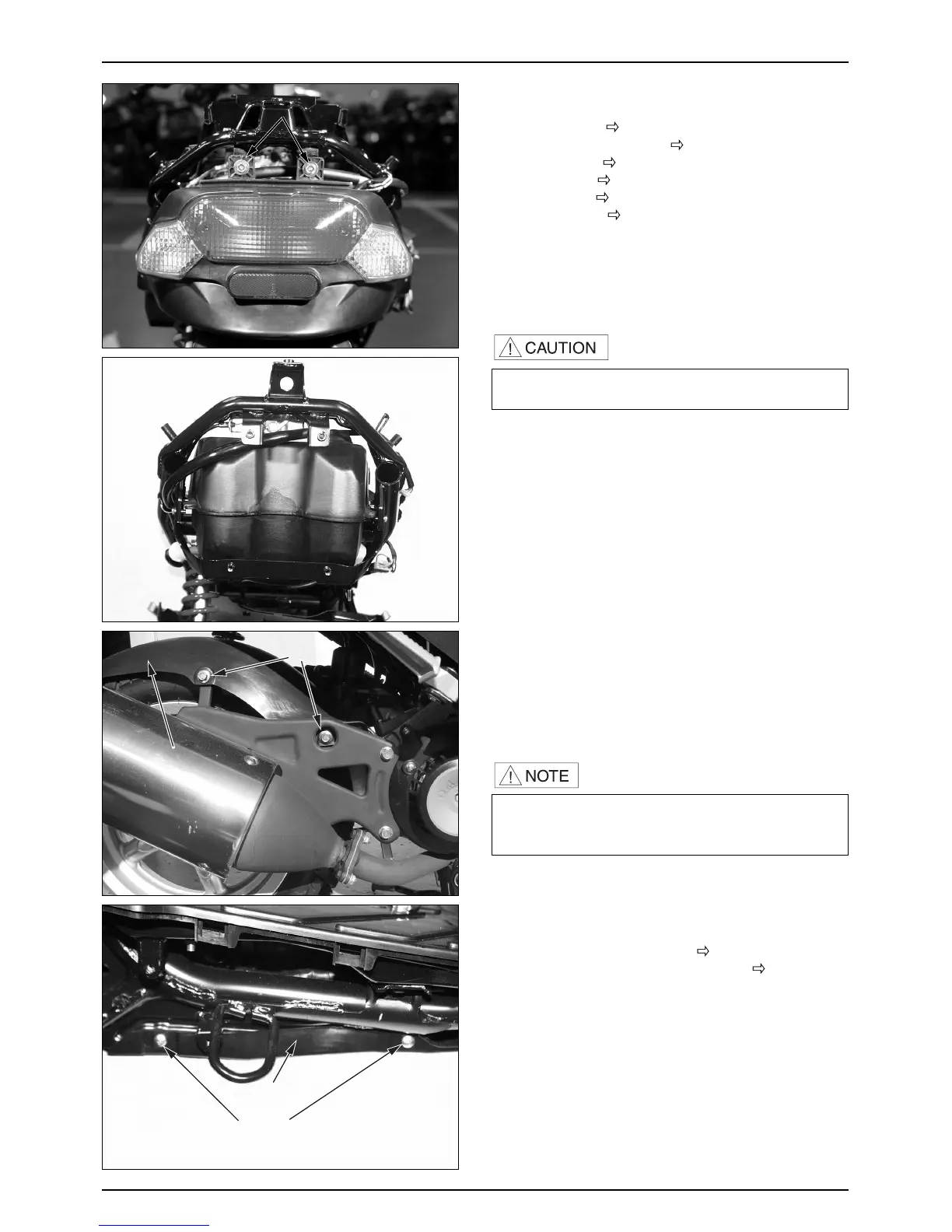

EXTERNAL PARTS
REAR FENDER
● Luggage box. ( 3-3)
● Plug maintenance cover. (
3-3)
● Center cover. (
3-3)
● Rear carrier. (
3-3)
● Body cover. (
3-3)
● Taillight base. (
3-4)
● Remove the 2 washer bolts securing the fuel tank
support stay.
● Draw the rear part of the rear fender from the bracket in
the frame.
●
Loosen the rear cushion under bolt, remove the rear fender.
•If removal is difficult, recheck each connection and
try removing again.
● Install in the reverse order of removal.
REAR WHEEL MED GUARD
● Loosen the 2 flange bolts securing the EX muffler.
● Loosen the flange bolt securing the air cleaner.
● Loosen the flange bolt securing the inlet pipe.
● Remove the rear wheel mud guard.
● Install in the reverse order of removal.
•Never perform the maintenance of the muffler right
after stopping the vehicle because the muffler is
extremely hot.
UNDER COVER
● Remove the floor side cover. ( 3-4)
● Remove the engine hanger side cover. (
3-5)
● Loosen the 2 R/L setting screws securing the frame.
● Remove the under cover.
● Install in the reverse order of removal.
