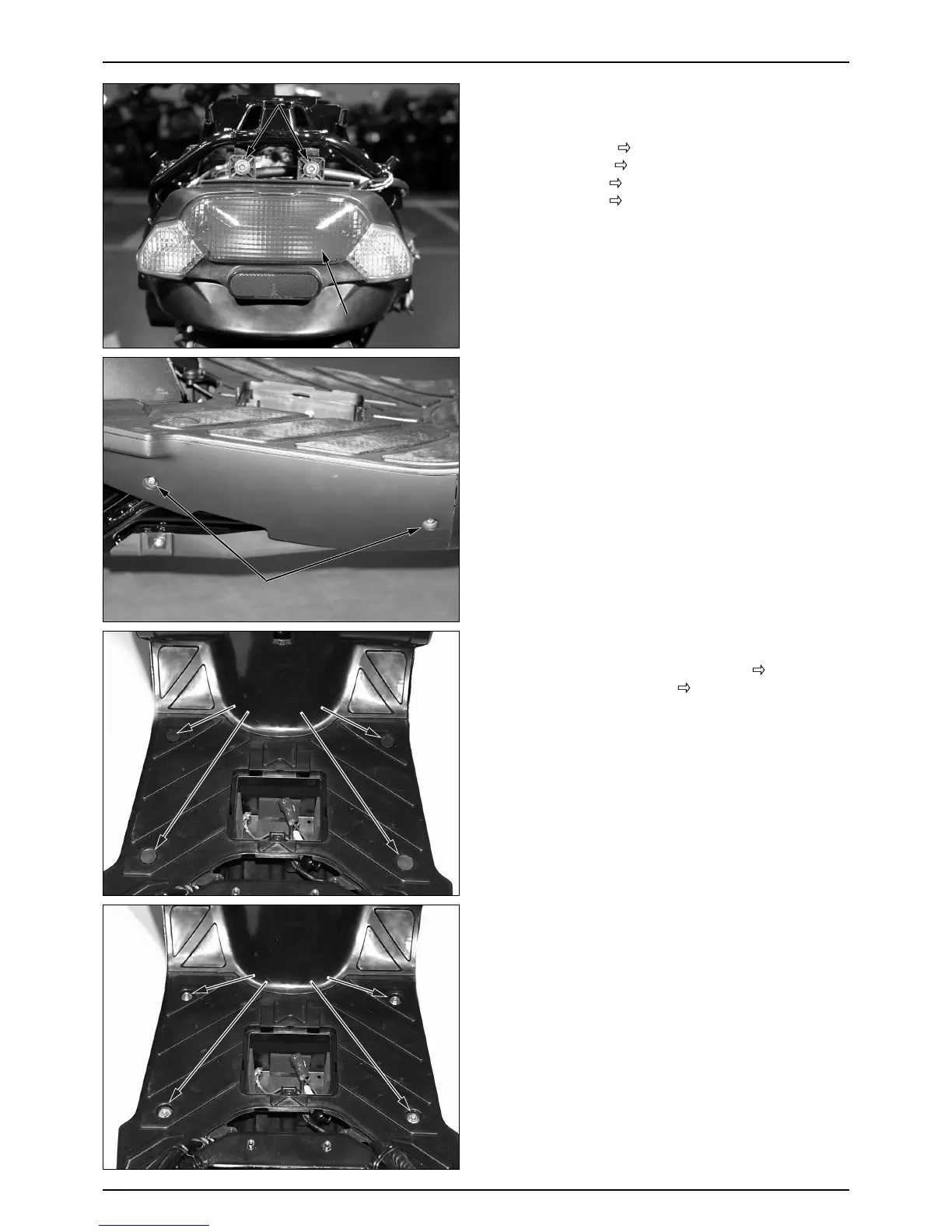

FLOOR PANEL CAP

WASHER BOLT

3-4

EXTERNAL PARTS

TAILLIGHT BASE

● Remove

-Luggage box. (

3-3)

-Center cover. (

3-3)

-Rear carrier. (

3-3)

-Body cover. (

3-3)

● Loosen 2 washer bolt securing the frame.

● Loosen 2 body cover clip securing the rear fender.

● Disconnect the taillight wiring.

● Remove the taillight base.

● Install in the reverse order of removal.

FLOOR SIDE COVER

● Loosen the 2 washer screw located in the side of the

R,L floor side cover.

● Loosen the tapping screw (R/L) securing the lower and

rear end of the floor panel.

● Pull the front part of the floor side cover to remove the

floor panel.

● Remove the floor side cover.

● Install in the reverse order of removal.

FLOOR PANEL

● Remove the plug maintenance cover. ( 3-3 )

● Remove the center cover. (

3-3)

● Loosen the tapping screw securing the battery cover to

remove the battery cover.

● Disconnect the battery wiring to remove the battery.

● Remove the floor side cover.

● Remove the floor panel cap A and B.

● Loosen the 4 washer bolts securing the floor panel.

● Remove the floor panel from the connecting groove of

the inner box by lifting the rear part of the panel

slightly.

● Draw the floor panel moving it to the right and left to

remove it.

● Install in the reverse order of removal.

WASHER BOLT

TAILLIGHT BASE

WASHER SCREW
