FUEL SYSTEM

FLANGE BOLT

WASHER BOLT

WASHER

SCREW

AIR CLEANER ELEMENT

CONNECTING

BEND

CARBURETOR

INSULATOR

FLANGE BOLT

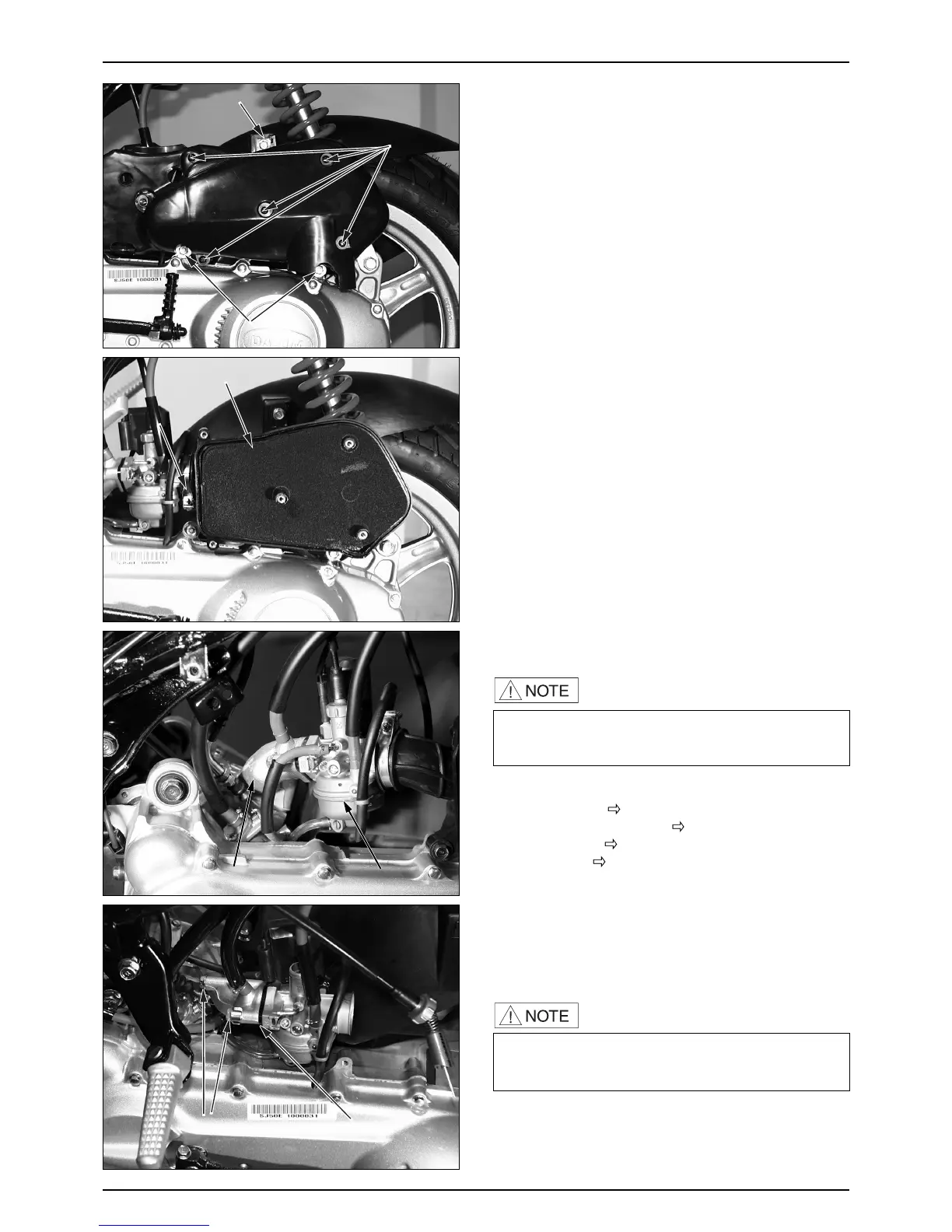

AIR CLEANER REMOVAL

● Loosen the air cleaner connecting bend screw pin.

● Loosen the 2 bottom air cleaner washer bolts.

● Loosen the top rear fender flange bolt.

● Remove the air cleaner from the carburetor.

● Install in the reverse order of removal.

AIR CLEANER ELEMENT DISASSEMBLY

● Loosen the 5 air cleaner cover washer screws.

● Remove the air cleaner cover.

● Remove the air cleaner element.

● Install in the reverse order of disassembly.

CARBURETOR REMOVAL/INSTALLATION

•Fire is strictly prohibited.

•Open the drain screw to drain the gasoline in the

carburetor chamber.

● Remove

- Luggage box. (

3-3)

- Plug maintenance cover. (

3-3)

- Center cover. (

3-3)

- Air cleaner. (

5-4)

- Wiring coupler of the auto by starter.

- Oil pass tube.

- Throttle valve set.

- 2 flange bolts securing the inlet pipe.

- Carburetor insulator.

- Carburetor.

● Install in the reverse order of removal.

•Install the carburetor after aligning the throttle valve

cutaway and the throttle stop screw.

•Tighten the top set correctly so that it is not released.

CARBURETOR INSULATOR

CARBURETOR
