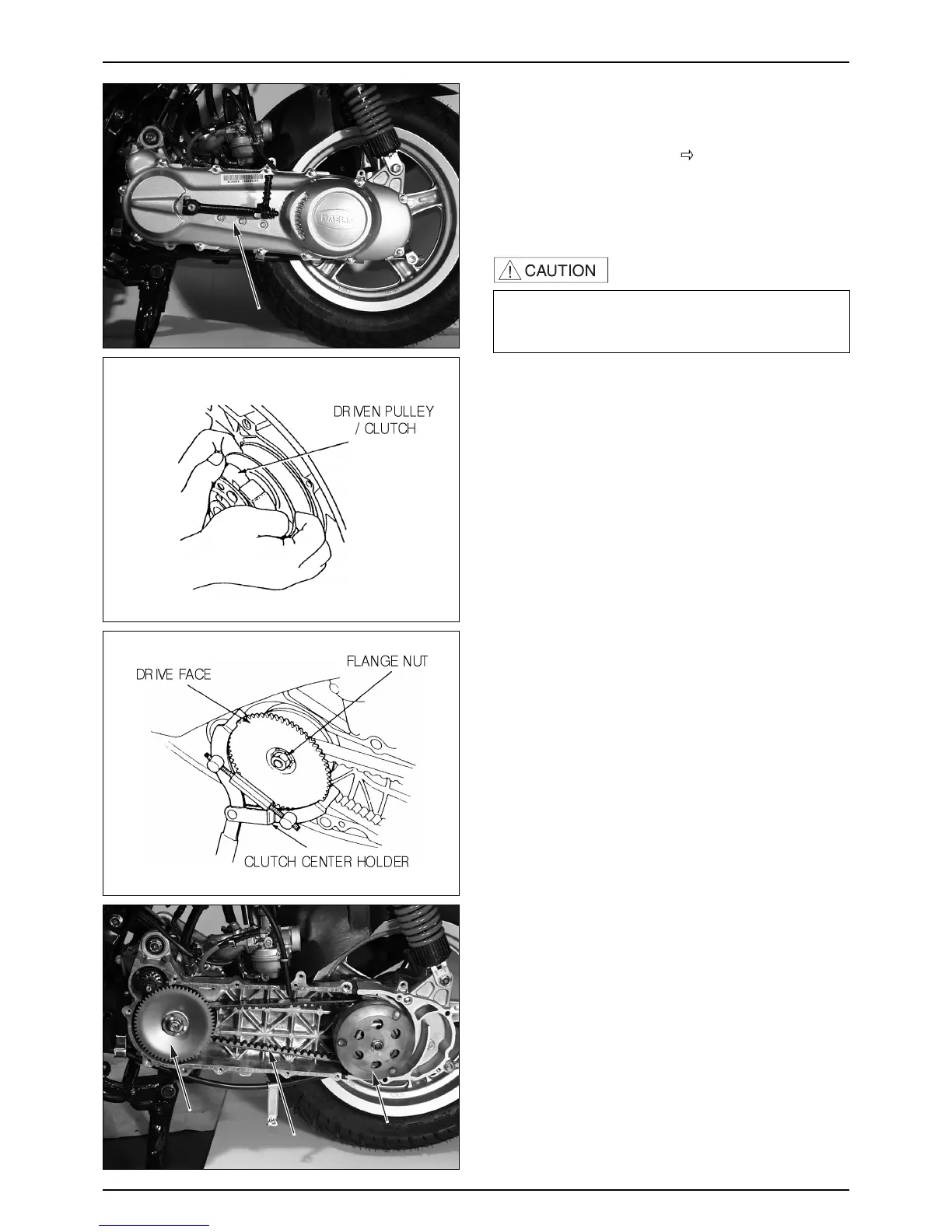

DRIVE BELT
REMOVAL
● Remove the L. side cover. ( 7-2 )
● Hold the clutch outer using the universal holder and
remove the nut.
● Remove the clutch outer.
TOOL: UNIVERSAL HOLDER
·Use the special tool when loosening the lock nut.
Holding the rear wheel or rear brake will damage the
final reduction system.
● Squeeze the drive belt into the pulley groove as shown
so that it slackens enough to remove the driven pulley
from the drive shaft.
● Loosen the drive face setting nut 12mm with the clutch
center holder.
TOOL: CLUTCH CENTER HOLDER
REMOVE
● Driven pulley/ clutch with the drive belt in place.
● Drive belt from the driven pulley groove and drive
pulley groove.
7-4
KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
