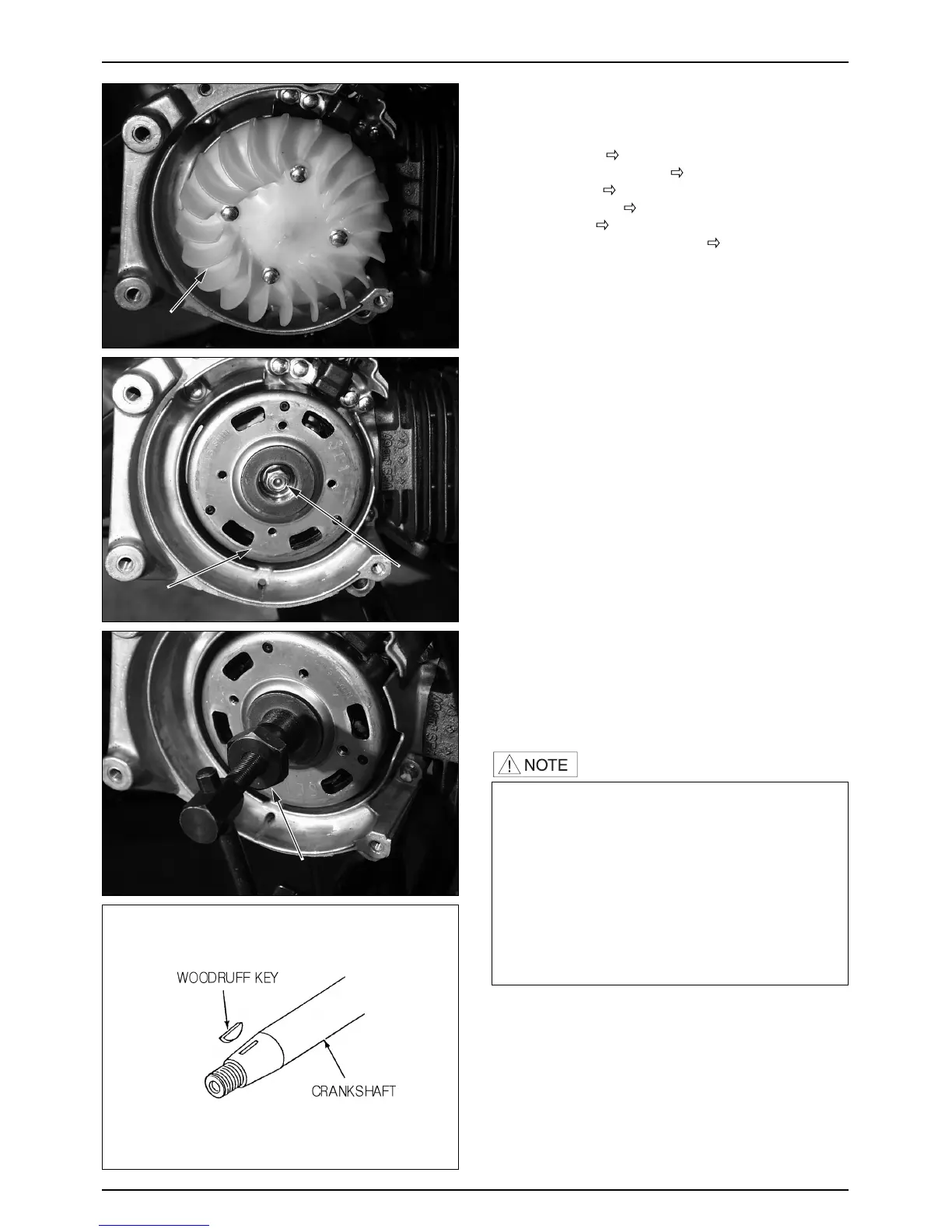

A.C. GENERATOR
REMOVE
● Luggage box. ( 3-3 )
● Plug maintenance cover. (
3-3 )
● Center cover. (
3-3 )
● Floor side cover. (
3-4 )
● Floor panel. (
3-4 )
● Engine hanger side RH. cover. (
3-5 )
● Plug cap.
● Loosen the 3 washer screws, remove the fan cover and
the fan cover element A,B.
● Remove the fan cover rubber.
● Loosen the 2 flange bolts, remove the fan cover.
● Loosen the 4 cooling fan fixing flange bolts, remove
the cooling fan.
● Hold the flywheel with a universal holder.
TOOL : UNIVERSAL HOLDER
● Remove the flywheel with a ACG rotor puller.
TOOL : ACG ROTOR PULLER 0750-00004
● Remove the connector/coupler on the wire harness or
starter motor. Remove the ground wires.
● Loosen the 2 pulse generator fixing flange bolts,
remove the pulse generator.
● Loosen the 2 stator fixing flange bolts.
● Remove the grommet from the crankcase cover.
● Remove the stator.
·Insert the puller shaft and remove the flywheel after
inserting the ACG rotor puller and securing it with
spanner.
·The flywheel may easily removed if you rotate the
puller while tapping the roller shaft with metal
hammer.
·Always use a holder and a puller to remove the
flywheel. Do not try to remove the flywheel by
hammering directly on it. The crankshaft or
components could be damaged.
·Remove the woodruff key with care not to lose it.
13-7
CHARGING SYSTEM/A.C.GENERATOR
