10-14
FRONT WHEEL/FRONT FORK/STEERING
·For tubeless tires, you may hear a loud sound as the
bead seats onto the rim. This is normal.
·For tubeless tires, if air leaks out from between the
rim and bead, let the wheel stand with the valve at
the bottom and put air in while pushing down on the
tire.

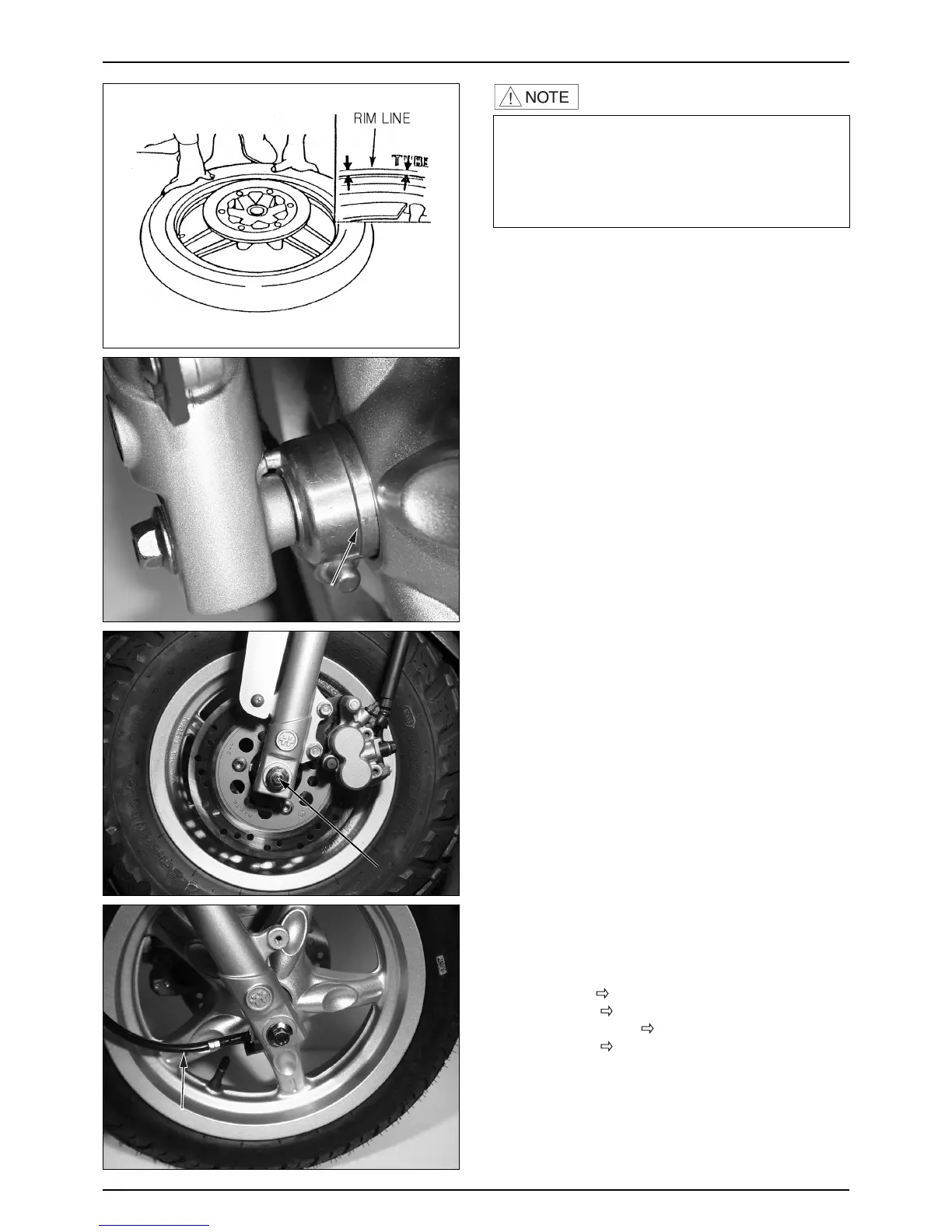

● Check that the tire bead seats on the tire rim securely
and the rim line of the tire is concentric with the rim.
● Adjust the tire pressure to the specified pressure.
● Check the wheel balance.
FRONT WHEEL INSTALLATION
● Insert the front wheel between the front forks.
● Insert the disk, taking precautions not to damage the
pad, and assemble the wheel.
● Align the slots of the speedometer gear with the tangs
of the left fork slider.
● Insert the front axle into the speedometer gear box and
the wheel hub.
● Install the axle nut.
● Assemble the speedometer cable, and tighten with
screws.
● Place the front wheel on the ground, and tighten the
axle nut to the prescribed torque.
TORQUE VALUE : 6.0kgf
·
m
FRONT FORK
REMOVAL
● Remove
- Front cover. (
3-5 )
- Front fender. (
3-5 )
- Front brake caliper. (
12-7 )
- Front wheel. (
10-5 )
● Loosen the front brake hose stay bolt, remove the L.
fork.
● Speedometer cable from R. fork speedometer cable
guide.
● Loosen the R. fork securing bolt, remove the
speedometer cable and guide.
To Next Page
