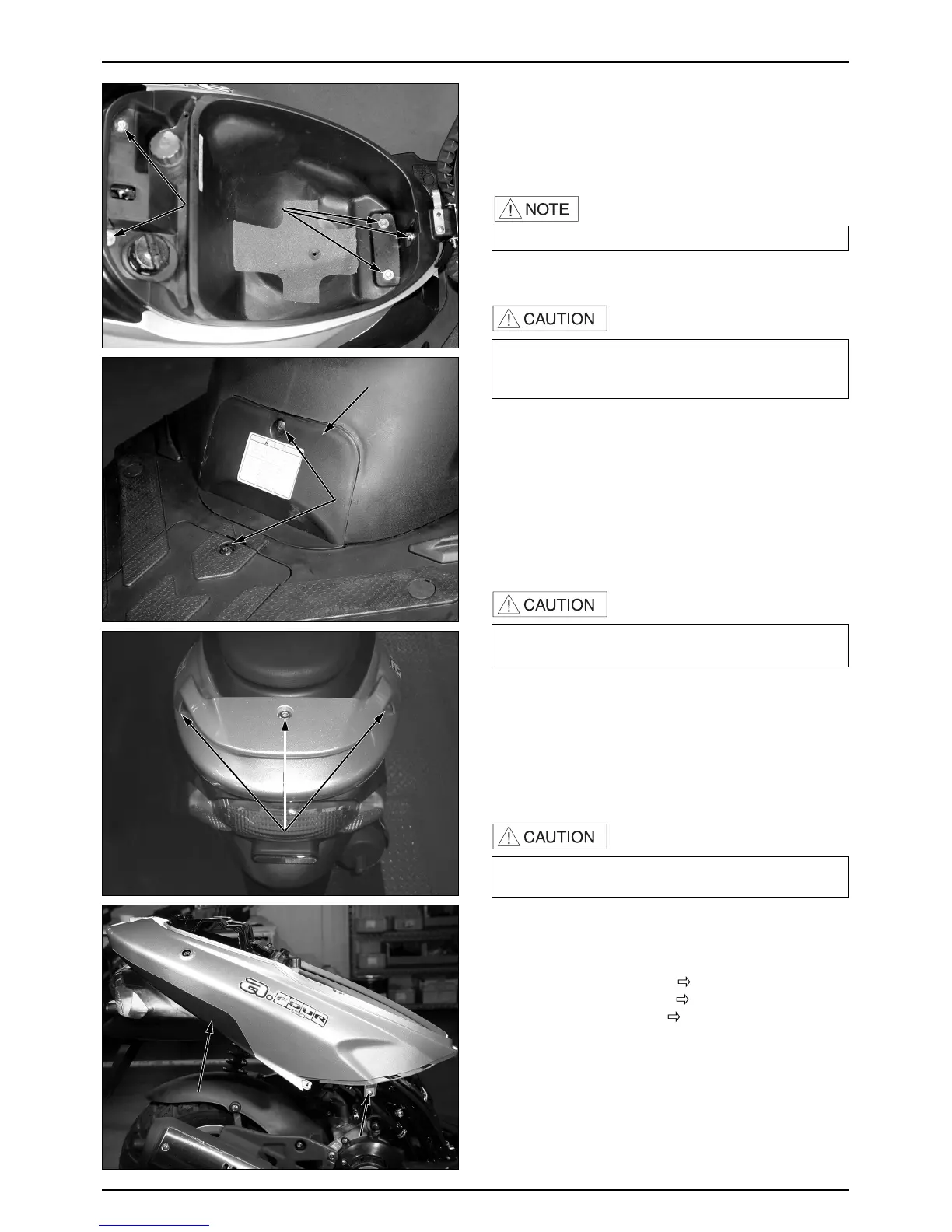

EXTERNAL PARTS

LUGGAGE BOX

● Release the seat lock using the main key to open the

seat.

● Loosen 4 washer bolts and 2 flange bolts.

● Remove the oil tank cap and the fuel tank cap.

•Luggage box can be removed with the seat.

● Remove the luggage box.

● Install in the reverse order of removal.

•Install the oil tank cap and the fuel tank cap

temporarily to prevent the foreign material from

entering after removing the luggage box.

PLUG MAINTENANCE COVER/CENTER COVER

● Release the seat lock using the main key to open the

seat.

● Loosen the washer bolt securing the luggage box.

● Loosen the special screw to remove the plug

maintenance cover.

● Loosen 2 tapping screw securing the floor panel.

● Loosen 2 special screw (R/L) securing the body cover.

● Remove the center cover.

•If removal is difficult, recheck each connection and

then try removing again.

● Install in the reverse order of removal.

REAR CARRIER

● Loosen 3 special bolts securing the top of the body

cover.

● Remove the rear carrier.

● Install in the reverse order of removal.

•Pay attention not to break of damage the rear carrier

when installing or removing.

BODY COVER

● Remove the luggage box. ( 3-3)

● Remove the center cover. (

3-3)

● Remove the rear carrier. (

3-3)

● Loosen 2 special screw (R/L) securing the frame body.

● Loosen 2 body cover clip (R/L) securing the tail light

base.

● Remove the body cover.

● Install in the reverse order of removal.

FLANGE BOLT

PLUG MAINTENANCE COVER

SCREW

SPECIAL BOLT

SPECIAL SCREW

BODY COVER CLIP
