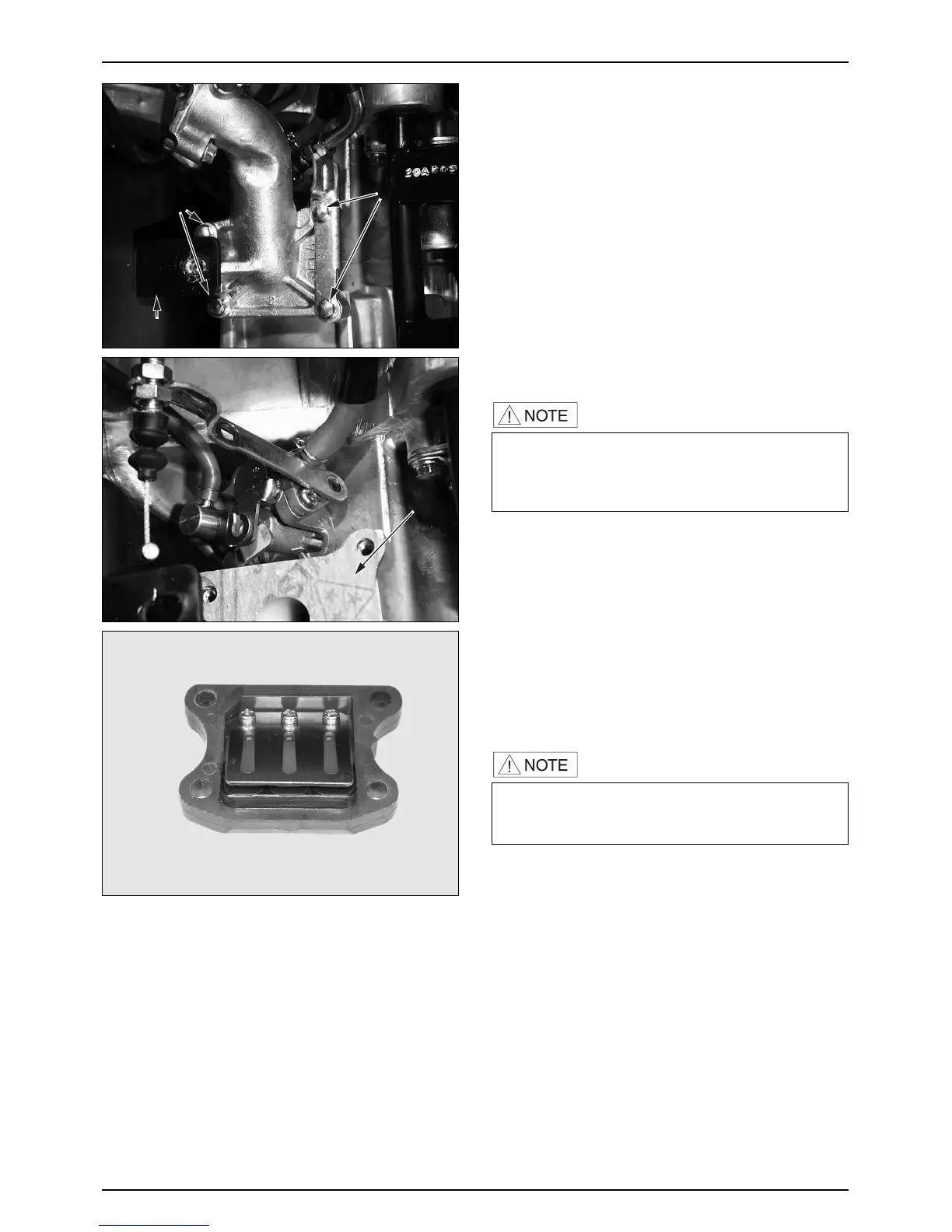

INLET PIPE•REED VALVE
REMOVAL/INSTALLATION
● Remove
- Luggage box. (⇨3-3)
- Air cleaner. (⇨5-4)
- Carburetor. (⇨5-4)
- Negative pressure tube connected to the inlet pipe.
- Oil pump cable. (⇨4-3)
- Rear wheel mud guard. (⇨3-8)
- Inlet pipe securing 4 flange bolts connected to the L
crank case.
- Oil pump anchor plate.
- Inlet pipe.
- Reed valve.
● Install in the reverse order of removal.
•Do not remove the reed valve and replace the
assembly if necessary.
•Keep the foreign material from entering into the
engine by cleaning around the needle valve.
INSPECTION
● Check the reed valve for fatigue or damage and replace
the reed valve assembly if necessary.
● Check the reed valve seat for cracks, damage and
clearance from the reed and replace the reed valve
assembly if necessary.
•Be sure to replace the reed valve as an assembly.
Disassembling or bending the reed stopper will cause
engine trouble.
