Dahua NVR100 series User Manual

100
Icon
Port Name
Function
MIC OUT
Audio output port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
1～4
Alarm input port
1～4
 They are to receive the signal from the external
alarm source. There are two types; NO (normal
open)/NC (normal close).
 When your alarm input device is using external
power, please make sure the device and the
NVR have the same ground.
GND
Alarm input ground port.
N1,N2
Alarm output port
1～2
 2 groups of alarm output ports.（group 1：port
NO1～C1, group 2：port NO2～C2）. Output
alarm signal to the alarm device. Please make
sure there is power to the external alarm device.
 NO：Normal open alarm output port.
 C：Alarm output public end.
C1～C2
A
RS-485
communication
port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
2.2.13 NVR44/44-8P/44-16P Series

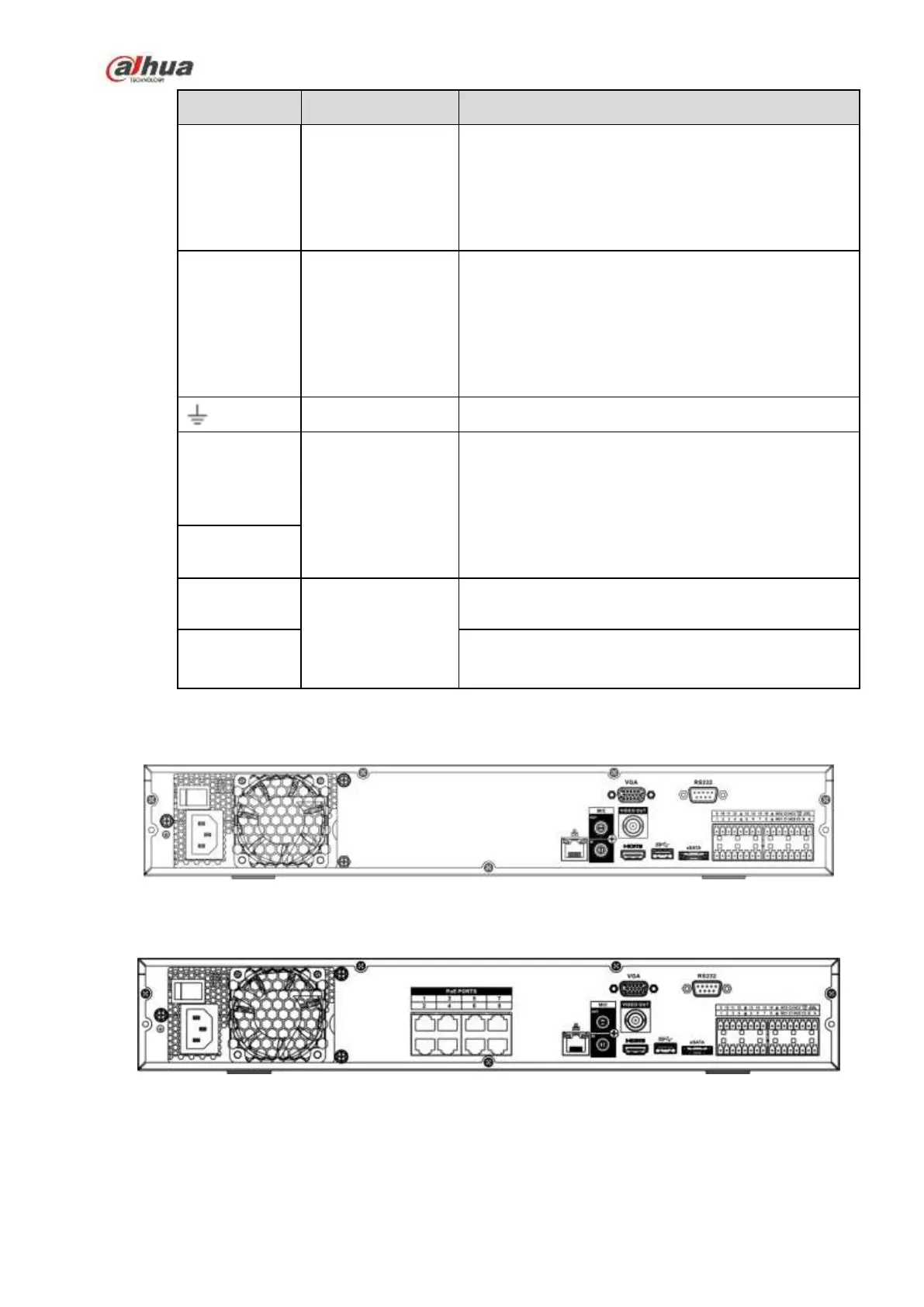

The NVR44 series rear panel is shown as below. See Figure 2-49.
Figure 2-49
The NVR44-8P series rear panel is shown as below. See Figure 2-50.
Figure 2-50
The NVR44-16P series rear panel is shown as below. See Figure 2-51.
