Dahua NVR100 series User Manual

131
Name
Function
B
port
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
CTRL 12V
/
Controller 12V power output. It is to control the
on-off alarm relay output. It can be used to control
the device alarm output. At the same time, it can
also be used as the power input source of some
devices such as the alarm detector.
+12V
/
+12V power output port. It can provide the power to
some peripheral devices such as the camera or the
alarm device. Please note the supplying power
shall be below 1A.
Network port
10M/100M/1000Mbps self-adaptive Ethernet port.
Connect to the network cable.
eSATA
eSATA port
External SATA port. It can connect to the device of
the SATA port. Please jump the HDD when there is
peripheral connected HDD.
USB2.0 port
USB2.0 port. Connect to mouse, USB storage
device, USB burner and etc.
RS-232
RS232 debug
COM.
It is for general COM debug to configure IP address
or transfer transparent COM data.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the
display device. HDMI version is 1.3
VGA
VGA video output
port
VGA video output port. Output analog video signal.
It can connect to the monitor to view analog video.
PoE
PORTS
PoE port
Built-in Switch. Support PoE.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.30 NVR48-4KS2/48-16P-4KS2

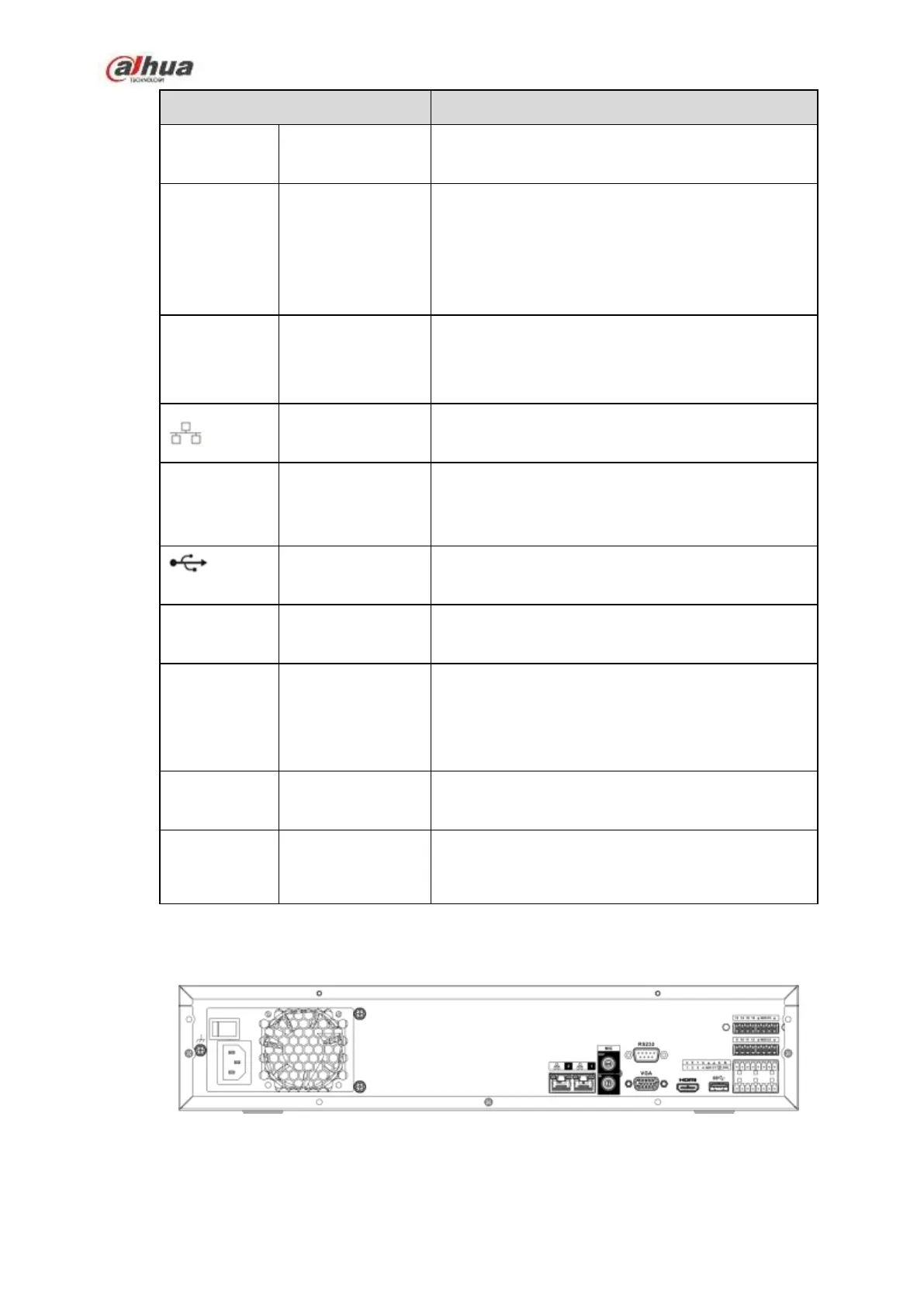

The NVR48-4KS2 series rear panel is shown as below. See Figure 2-80.
Figure 2-80
The NVR48-16P-4KS2 series rear panel is shown as below. See Figure 2-81.
