340

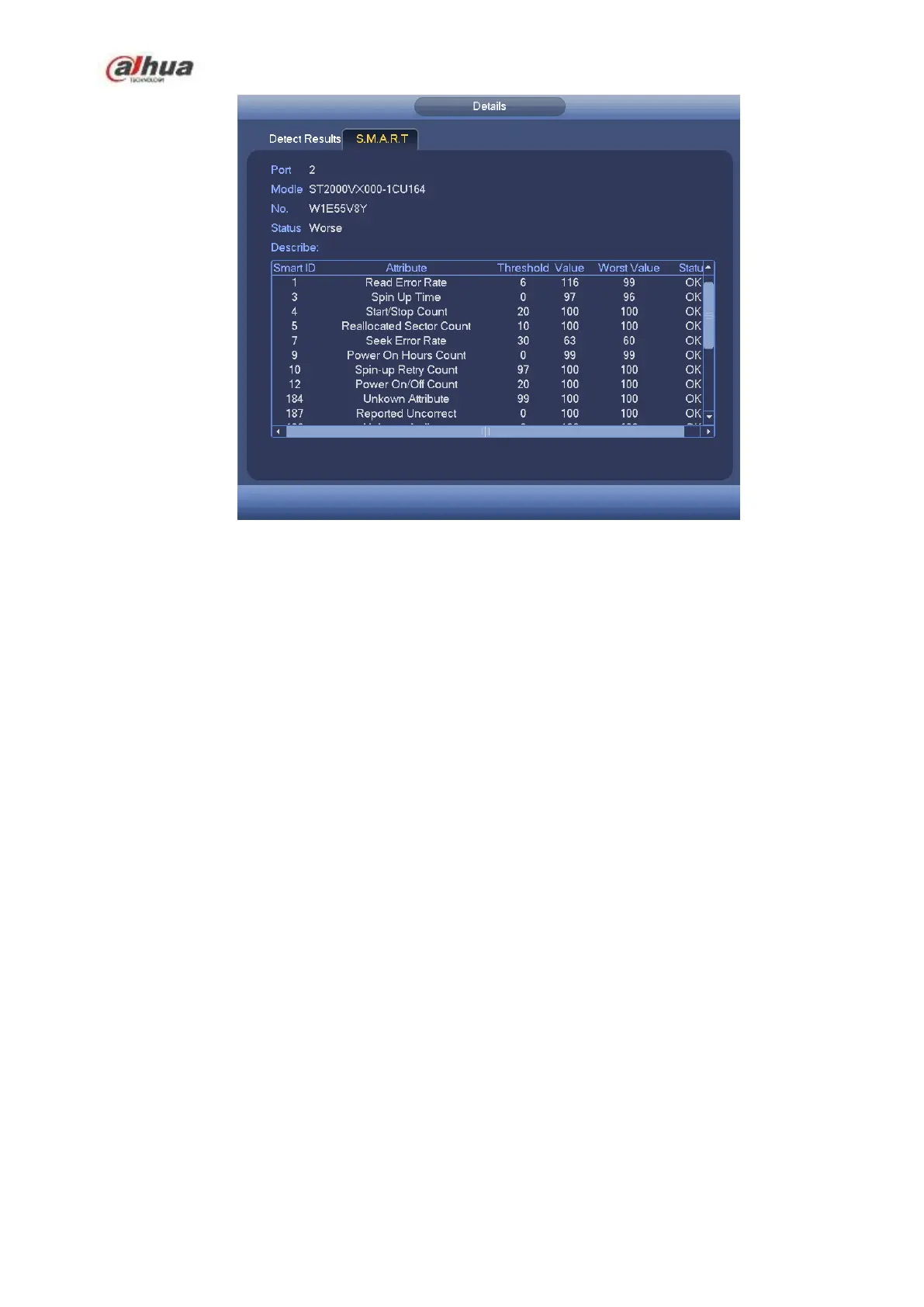

Figure 4-198
4.9.5 RAID Manager
Important
Please make sure your purchased product support the RAID function, otherwise you cannot see
the following interface.
Right now, RAID supports Raid0, Raid1, Raid5, Raid6, and Raid10. Local hotspare supports Raid1,
Raid5, Raid6, and Raid10.
4.9.5.1 RAID Config
It is for you to manage RAID HDD. It can display RAID name, type, free space, total space, status and etc.
Here you can add/delete RAID HDD.
Click Add button to select RAID type and then select HDDs, click OK button to add. See Figure 4-199.
To Next Page
