Dahua NVR100 series User Manual

146

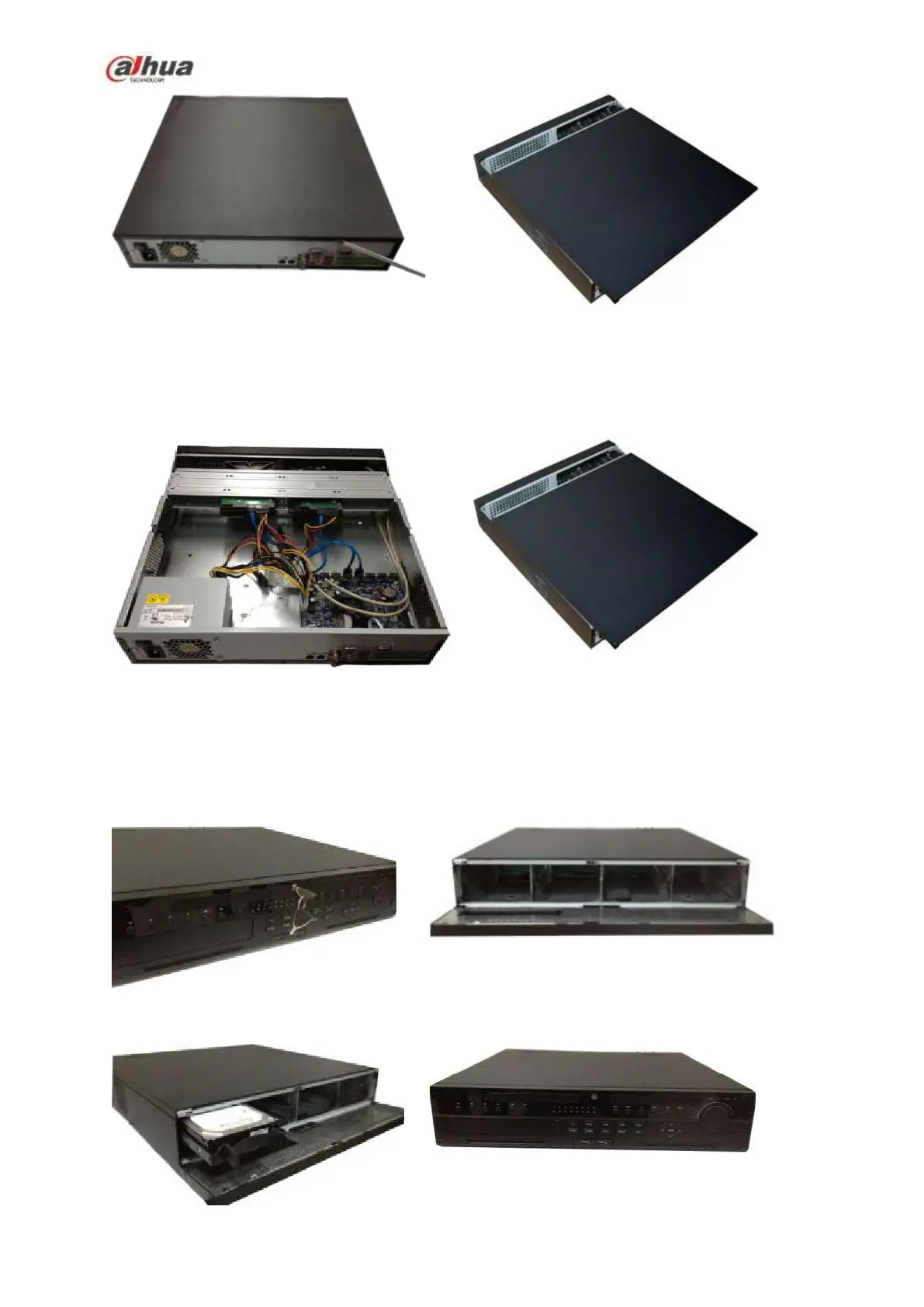

① ①Use the screwdriver to loose the screws
of the rear panel and then remove the front
cover.
② ②Put the HDD to the HDD bracket in
the chassis and then line up the four
screws to the four holes in the HDD.
Use the screwdriver to fix the screws
firmly to secure HDD on the HDD
bracket
③Connect to the HDD data cable to the main board
and the HDD port respectively. Loosen the power cable
of the chassis and connect another end of the power
cable to the HDD port.
④After connect the cable, put the front cover
back to the device and then fix screws of the rear
panel.
3.4.7 NVR78-RH Series
①Turn the key into the hole in the front
panel.
②Open the front panel.
