Dahua NVR100 series User Manual

110
Name
Function
MIC OUT
Audio output port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
2.2.18 NVR74 Series

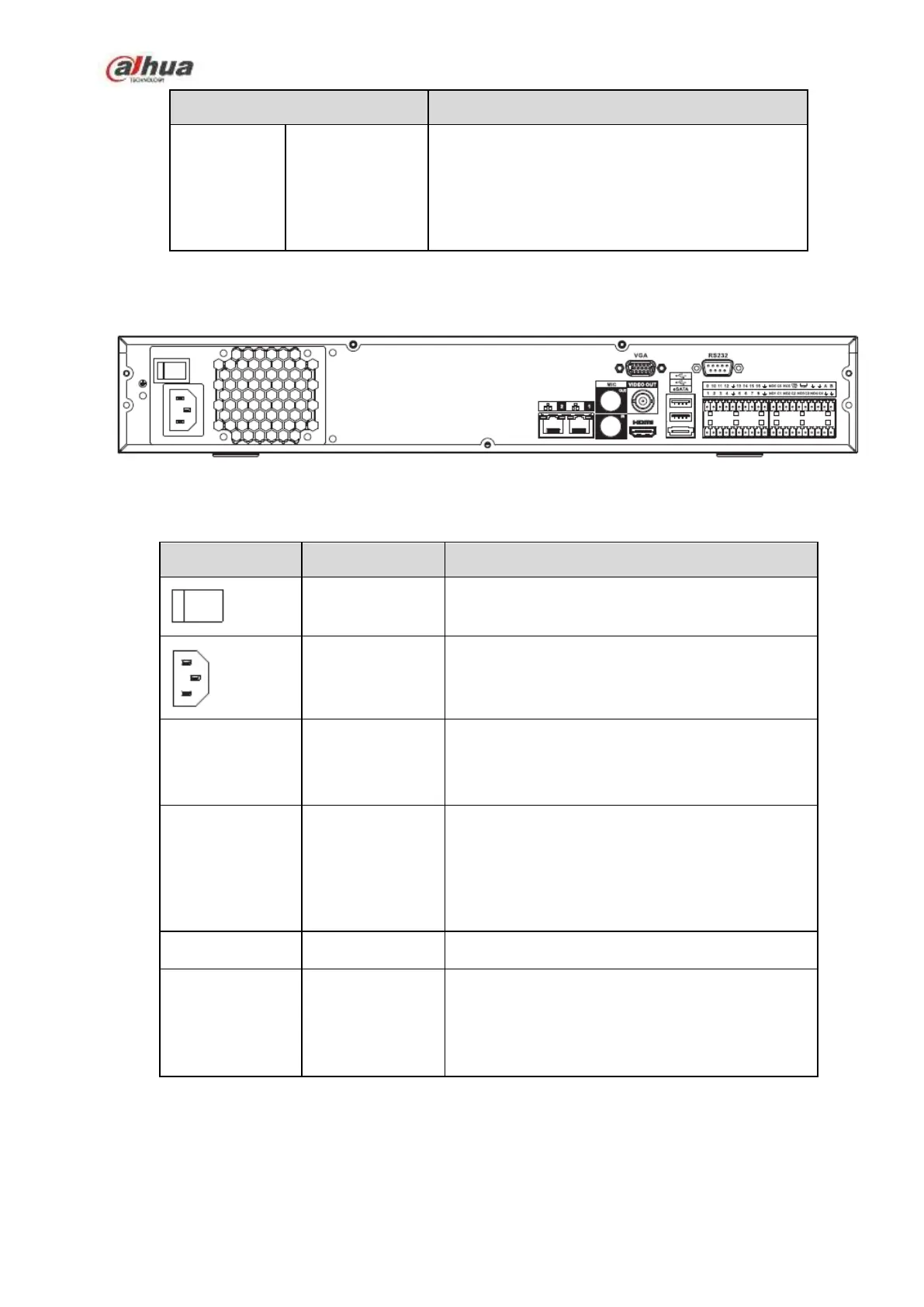

The NVR74 series rear panel is shown as below. See Figure 2-59.
Figure 2-59
Please refer to the following sheet for detailed information.
Icon
Name
Function
Power switch
Power on/off button.
Power input port
Input AC 100~240V.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
MIC OUT
Audio output port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
VIEDEO OUT
Video output port
CVBS output.
HDMI
High Definition
Media Interface
High definition audio and video signal output port.
It transmits uncompressed high definition video
and multiple-channel data to the HDMI port of the
display device. HDMI version is 1.3.
