Dahua NVR100 series User Manual

69
Please refer to the following sheet for detailed information.
Icon
Name
Function
NET
Network status
indicator light
The red light becomes on when the network
connection is abnormal.
PWR
Power indicator
light
The red light becomes on when the power
connection is OK.
HDD
HDD status
indictor light
The red light becomes on when HDD is abnormal.
IR
Remote control
receiver
It is to receive signal from the remote control.
2.1.3 NVR11HS Series

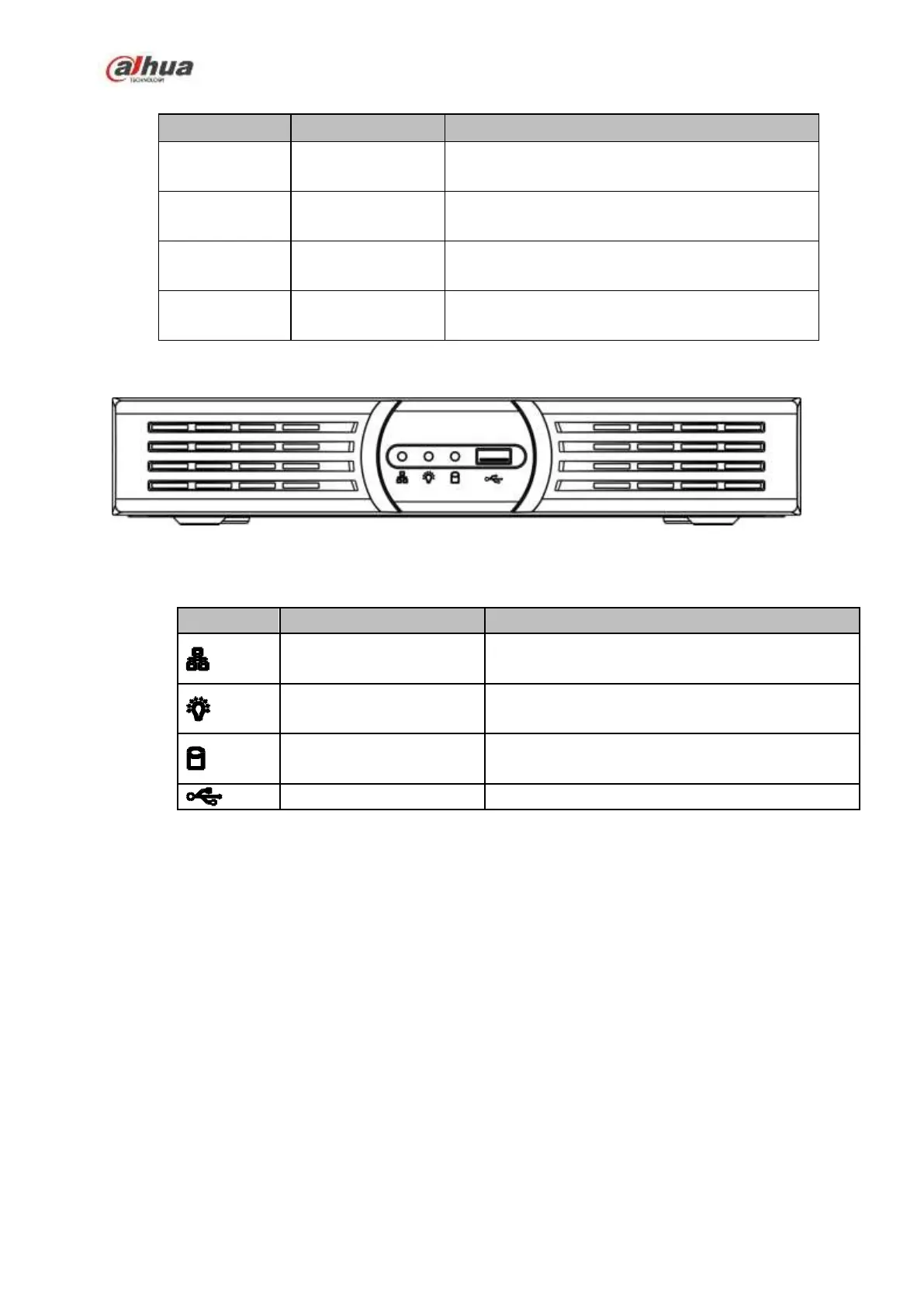

The front panel is shown as below. See Figure 2-3.
Figure 2-3
Please refer to the following sheet for detailed information.
Icon
Name
Function
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
Power status indicator
light
The red light becomes on when the power
connection is OK.
HDD status indicator light
The red light becomes on when the HDD is
abnormal.
USB port
Connect to USB mouse,USB devices and etc.
2.1.4 NVR41HS-W-S2 Series
The front panel is shown as below. See Figure 2-4.

Dahua NVR100 series Specifications

General

Brand	Dahua
Model	NVR100 series
Category	Network Hardware
Language	English
