378

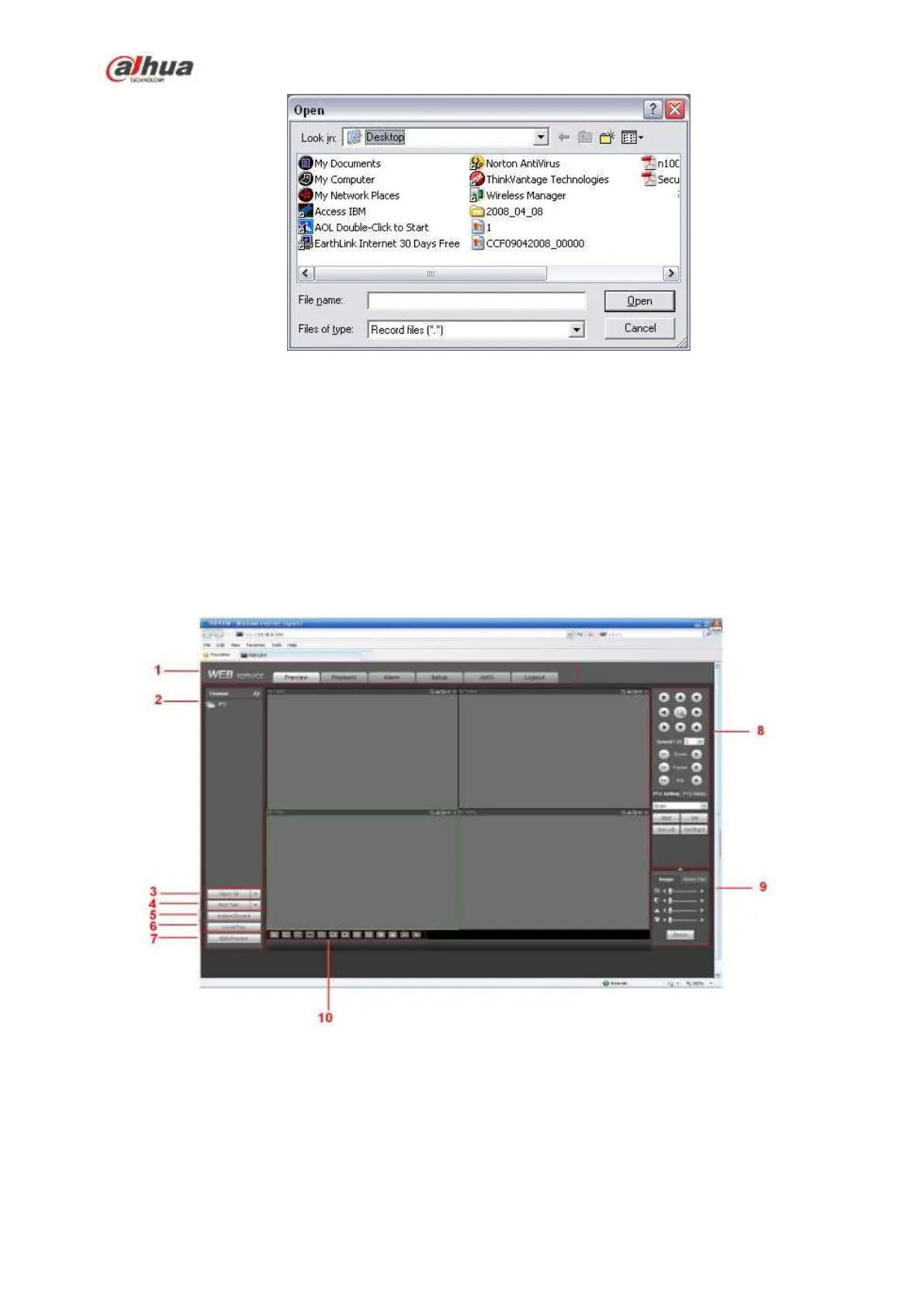

Figure 5-12
Section 7: Zero-channel encoding. Please refer to chapter 5.8 for detailed information.
Section 8: PTZ operation panel. Please refer to chapter 5.6 for detailed information.
Section 9: Image setup and alarm setup. Please refer to chapter 5.7 for detailed information.
Section 10: From the left to the right ,you can see video quality/fluency/ full
screen/1-window/4-window/6-window/8-window/9-window/13-window/16-window/20-window/25-win
dow/36-window.. You can set video fluency and real-time feature priority.
Figure 5-13
5.5 Real-time Monitor
In section 2, left click the channel name you want to view, you can see the corresponding video in current
window.
On the top left corner, you can view device IP(172.11.10.11), channel number(1), network monitor bit
