Dahua NVR100 series User Manual

105
Name
Function
PoE PORTS
/
Bult-in Switch. Support PoE.
The 16 PoE series product supports total 150W.

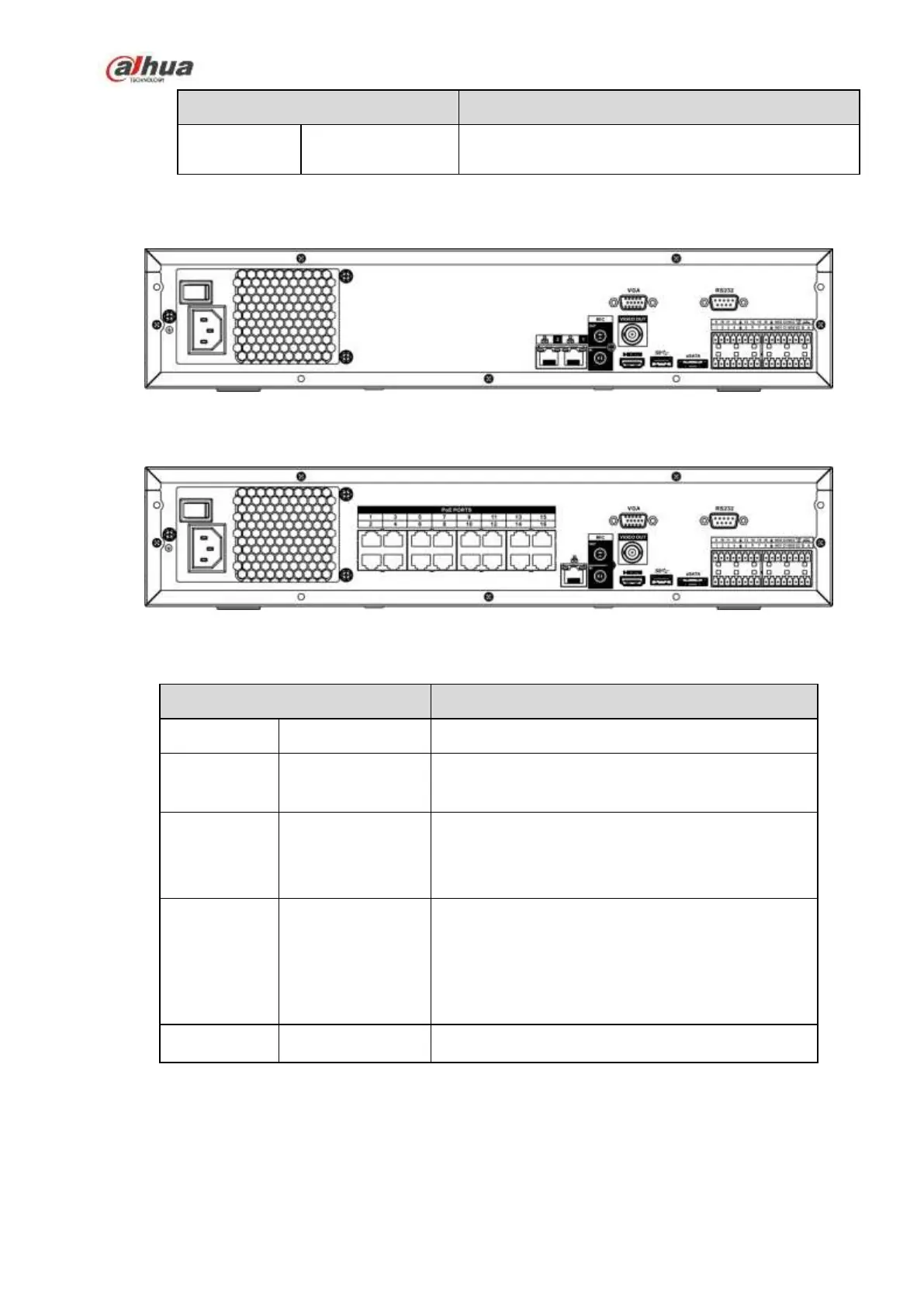

2.2.15 NVR48/48-16P Series
The NVR48 series rear panel is shown as below. See Figure 2-55.
Figure 2-55
The NVR48-16P series rear panel is shown as below. See Figure 2-56.
Figure 2-56
Please refer to the following sheet for detailed information.
Name
Function
Power switch
/
Power on-off button
Power input
port
/
Input AC 100~240V.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
MIC OUT
Audio output port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
VIEDEO OUT
Video output port
CVBS output.
