④Connect the HDD cable and power
cable.
⑤Put the cover in accordance with
the clip and then fix the screws on the
rear panel and side panel.
3.4.5 NVR44/44-8P/44-16P/74/74-8P/74-16P/44-4K/54-4KS2/54-16P-4KS2/44-4KS2/44-
16P-4KS2/5424-24P-4KS2 Series

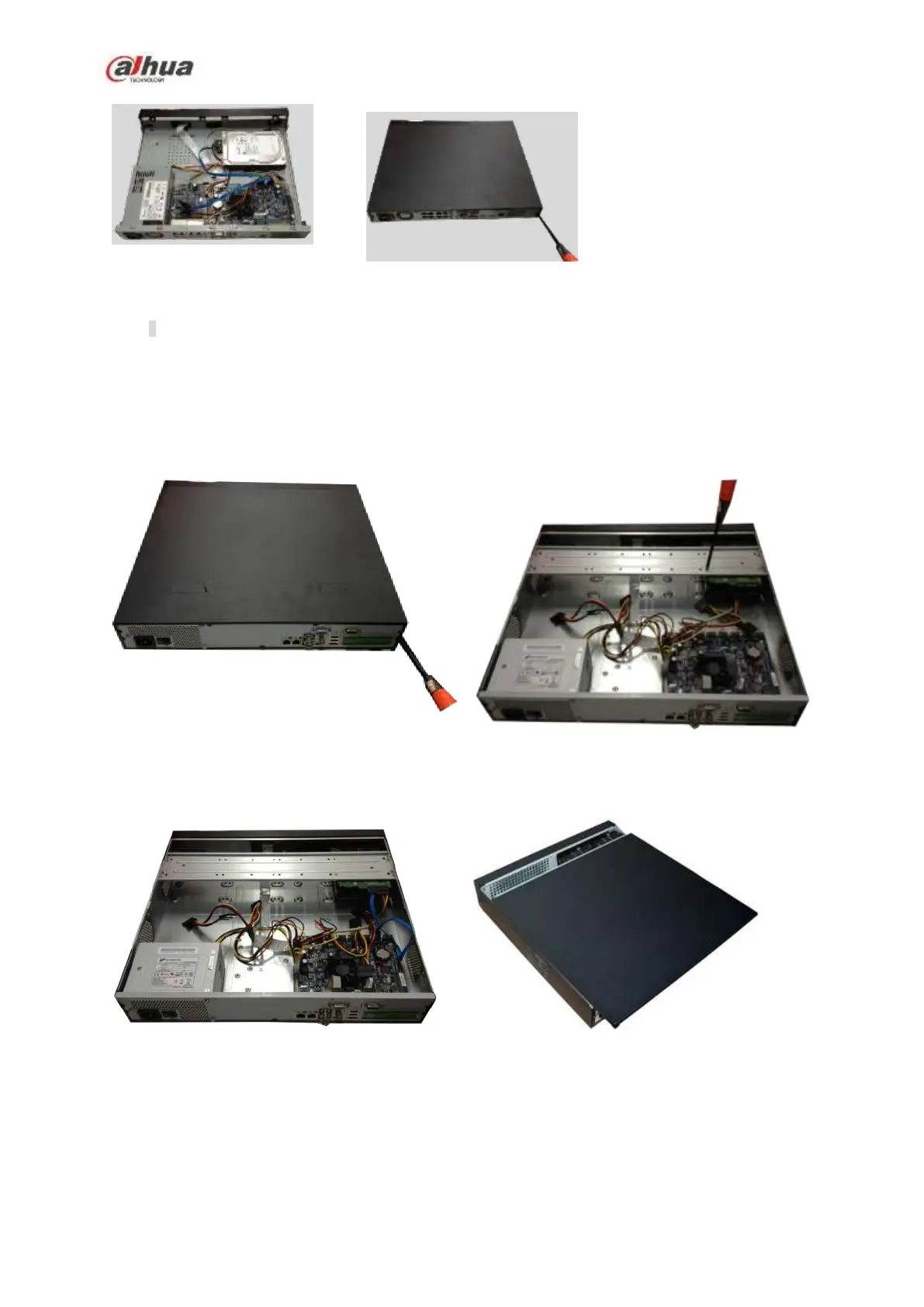

① Use the screwdriver to loose the screws of the rear
panel and then remove the front cover.
② Put the HDD to the HDD bracket in the chassis
and then line up the four screws to the four holes
in the HDD. Use the screwdriver to fix the screws
firmly to secure HDD on the HDD bracket
③ Connect to the HDD data cable to the main board
and the HDD port respectively. Loosen the power
cable of the chassis and connect another end of the
power cable to the HDD port.
④ After connect the cable, put the front cover back to
the device and then fix screws of the rear panel.
3.4.6 NVR48/48-16P/NVR78/78-16P/48-4K/58-4KS2/58-16P-4KS2/48-4KS2/48-16P-4KS
2 Series
The following figures are based on the NVR78 series.
