Dahua NVR100 series User Manual

107
Name
Function
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the
display device. HDMI version is 1.3.
VGA
VGA video output
port
VGA video output port. Output analog video signal.
It can connect to the monitor to view analog video.
PoE
PORTS
16 PoE ports
Built-in Switch. Support PoE. The 16 PoE ports
series products supports total 150W power. One
PoE port max supports 15W.
2.2.16 NVR72 Series

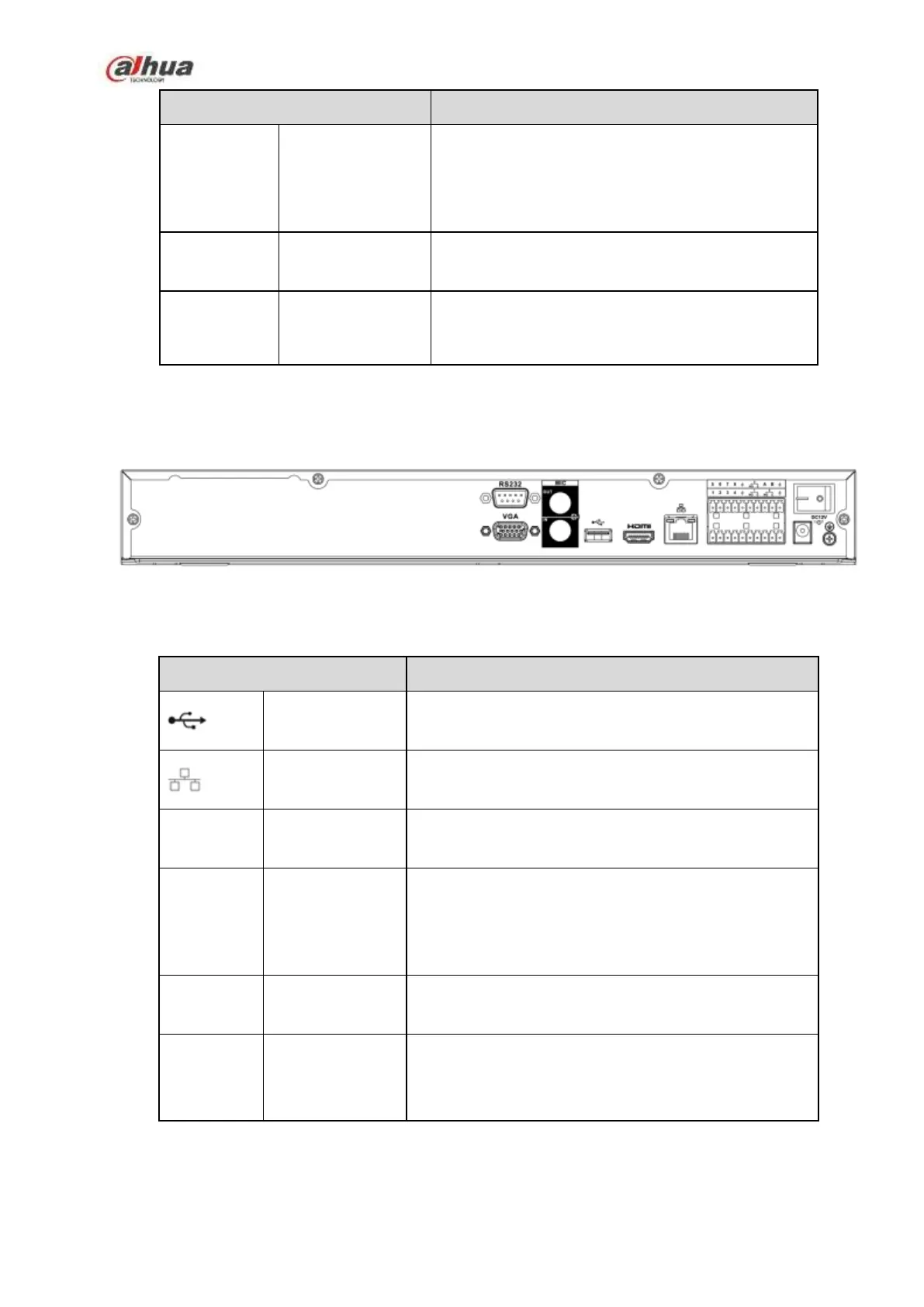

The NVR72 series rear panel is shown as below. See Figure 2-57.
Figure 2-57
Please refer to the following sheet for detailed information.
Name
Function
USB2.0 port
USB2.0 port. Connect to mouse, USB storage device,
USB burner and etc.
Network port
10M/100M/1000Mbps self-adaptive Ethernet port.
Connect to the network cable.
RS-232
RS-232 debug
COM.
It is for general COM debug to configure IP address or
transfer transparent COM data.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
VGA
VGA video
output port
VGA video output port. Output analog video signal. It
can connect to the monitor to view analog video.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the analog
audio signal output from the devices such as
microphone, pickup.
