Danfoss PVED-CLS User Manual

© Danfoss | August 2018 AQ00000211 | 109
ENGINEERING TOMORROW

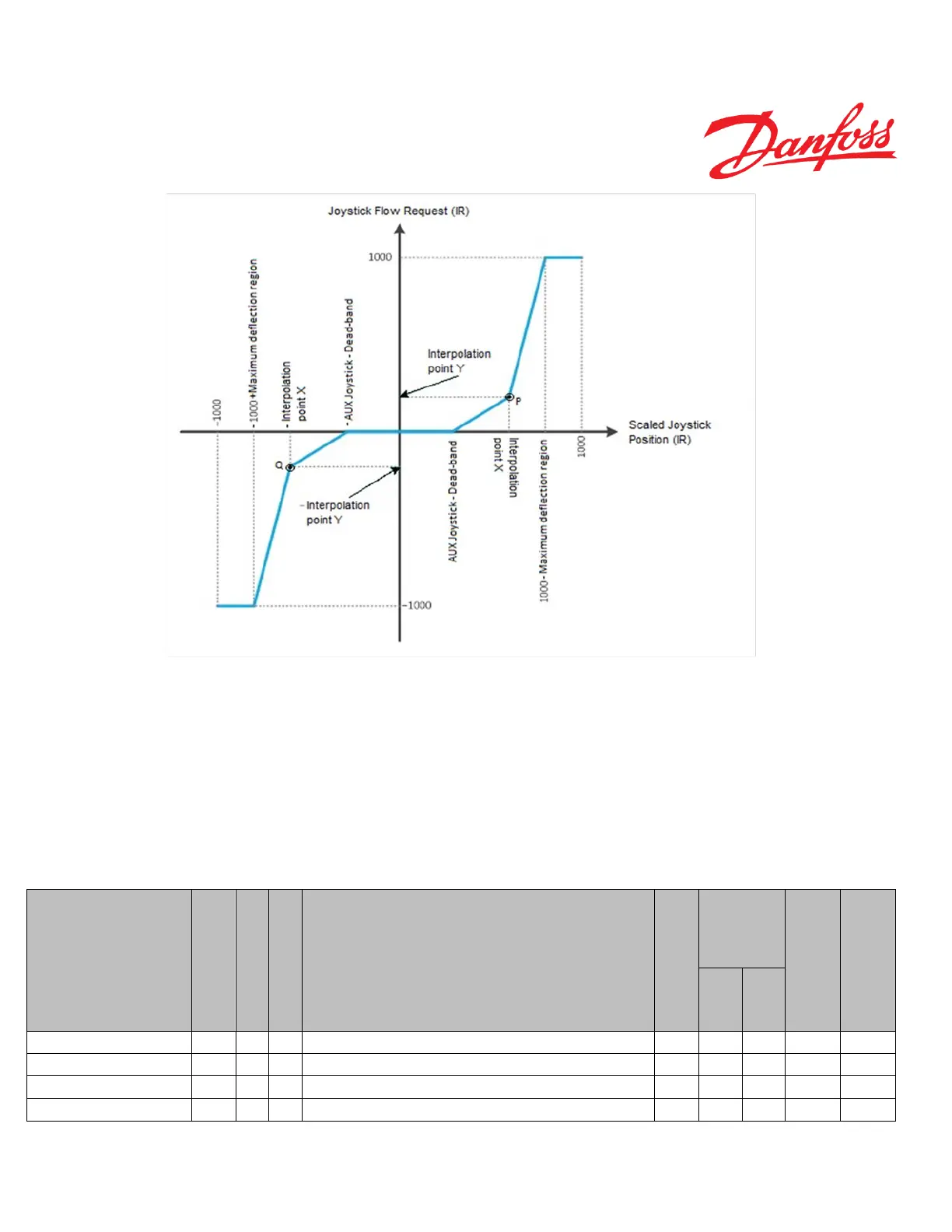

Figure 56
The open loop transfer function applies for all open loop joysticks and allows joystick flow request scaled to the internal
resolution, using piecewise linear conversion, based on slope values defined by parameters P3734 to P3740, of the scaled
joystick position limited by following rules-
• P3734 i.e. ‘AUX joystick-Maximum deflection region offset’ is less than or equal to (1000 IR – P3738 i.e. ‘AUX
joystick-Interpolation point X for open loop joystick transfer function’).
• P3740 i.e. ‘AUX joystick - Interpolation point Y for open loop joystick transfer function’ shall be greater than 0
and less than or equal to 1000 IR.
• P3736 i.e. ‘AUX joystick - Dead-band region’ shall be less than or equal to P3738.
PVED-CLS will enter safe state if these rules are not followed.
Name
Address
Data type
Unit
Description of parameter
User
Range
Danfoss default value
Safety critical parameters ‘S’
Min.
Max.
AUX joystick - Maximum deflection
region offset
P3734 U16 IR
AUX joystick - Maximum joystick deflection region offset from scaled MAX position
1000 IR
OEM 0 1000 0
AUX joystick - Dead-band region P3736 U16 IR AUX joystick - Neutral dead-band region for open loop transfer function OEM 0 1000 0
AUX joystick - Interpolation point X
for open loop joystick transfer function
P3738 U16 IR AUX Joystick - Interpolation point X for open loop Joystick transfer function OEM 0 1000 1000
AUX joystick - Interpolation point Y
for open loop joystick transfer function
P3740 U16 IR AUX Joystick - Interpolation point Y for open loop Joystick transfer function OEM 0 1000 1000
Table 47
