3.4 AUX STEERING STATE MACHINE

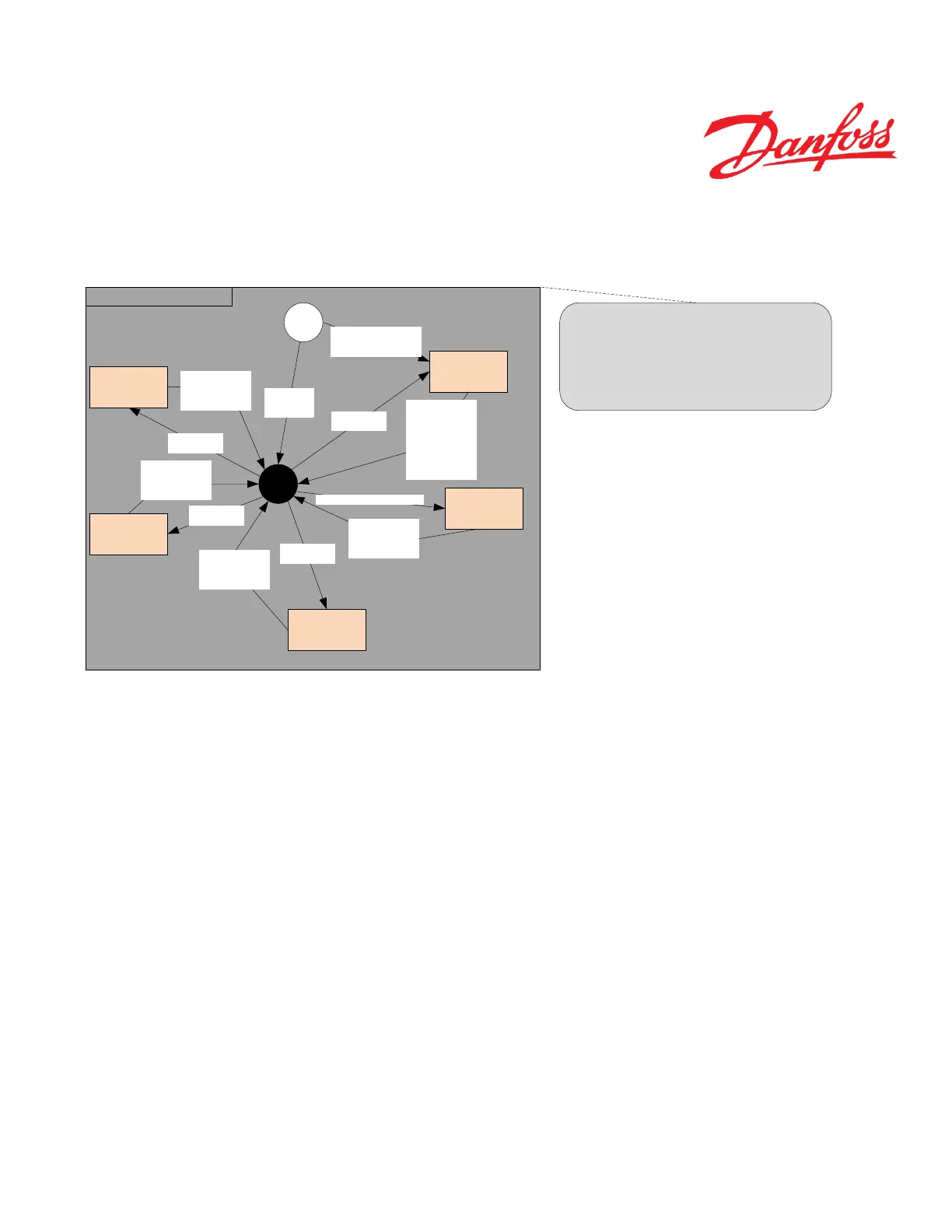

Figure shows the AUX steering device state machine. When the AUX device is configured to be a steering wheel,
PVED-CLS offers 5 individually configurable steering programs. If the AUX device is configured to be a joystick, only
1 program is available. Find more information regarding AUX devices and the configuration in chapter 11.
Entry
Point
AUX type is a
Steering wheel
(P3240 = 2)
Entry
Point
AUX Program 1
AUX Program 2
AUX Program 3
AUX Program 4
AUX Program 5
MMI request for
AUX Program 1
MMI request for
AUX Program change
AND
PRG_CHANGE_EN
AND
AUX type is a
Steering wheel
(P3240 = 2)
MMI request for AUX Program 2
MMI request for
AUX Program change
AND
PRG_CHANGE_EN
MMI request for
AUX Program 3
MMI request for
AUX Program change
AND
PRG_CHANGE_EN
MMI request for
AUX Program 4
MMI request for
AUX Program change
AND
PRG_CHANGE_EN
MMI request for
AUX Program 5
MMI request for
AUX Program change
AND
PRG_CHANGE_EN
Output State
EH Valve: ON
Cut-off Valve: ON
Operation Status message
Operation status: AUX Program 1-5
Lockout for EH-Steering functionality: EH-Steering functionality allowed
Lockout for steering device changes: Controlled by P3250 and Vehicle speed
Lockout for Program changes: Controlled by P3251 and Vehicle speed
AUX State machine
AUX type is a Open Loop or
Closed Loop Joystick
(P3240 = 0 or P3240 = 1)
Figure 7
3.5 AUTO-GUIDANCE STEERING STATE MACHINE
When the Auto-guidance device is mapped and enabled, PVED-CLS offers configurable risk mitigation functions that
will be shared by both GPS and GPS2, except for gain-parameters which are separate for GPS and GPS2. Find more
information regarding auto-guidance devices and the configuration in chapter 12.
Below Figure , Figure and Figure 10 shows auto-guidance steering state machine. The auto-guidance state machine
ensures that the selected auto-guidance controller follows the agreed protocol and to provide the auto-guidance
controller with the required status information. State transitions are triggered by information from:
• The selected auto-guidance controllers
• MMI controller
• Steering wheel sensor (for OSPE, EHi-E and EHPS)
• Internal Monitoring Disengage (for EHi-H)
• AUX device
