Following example is valid for OSPE with internal priority valve with 7 bar spring and 1.0 mm dynamic orifice and @ 60
l/min pump flow. For OSPE without internal priority valve, the curves are valid in combination with external priority
valve OLS 80, P/N:152B8269 @ 60 l/min pump flow:

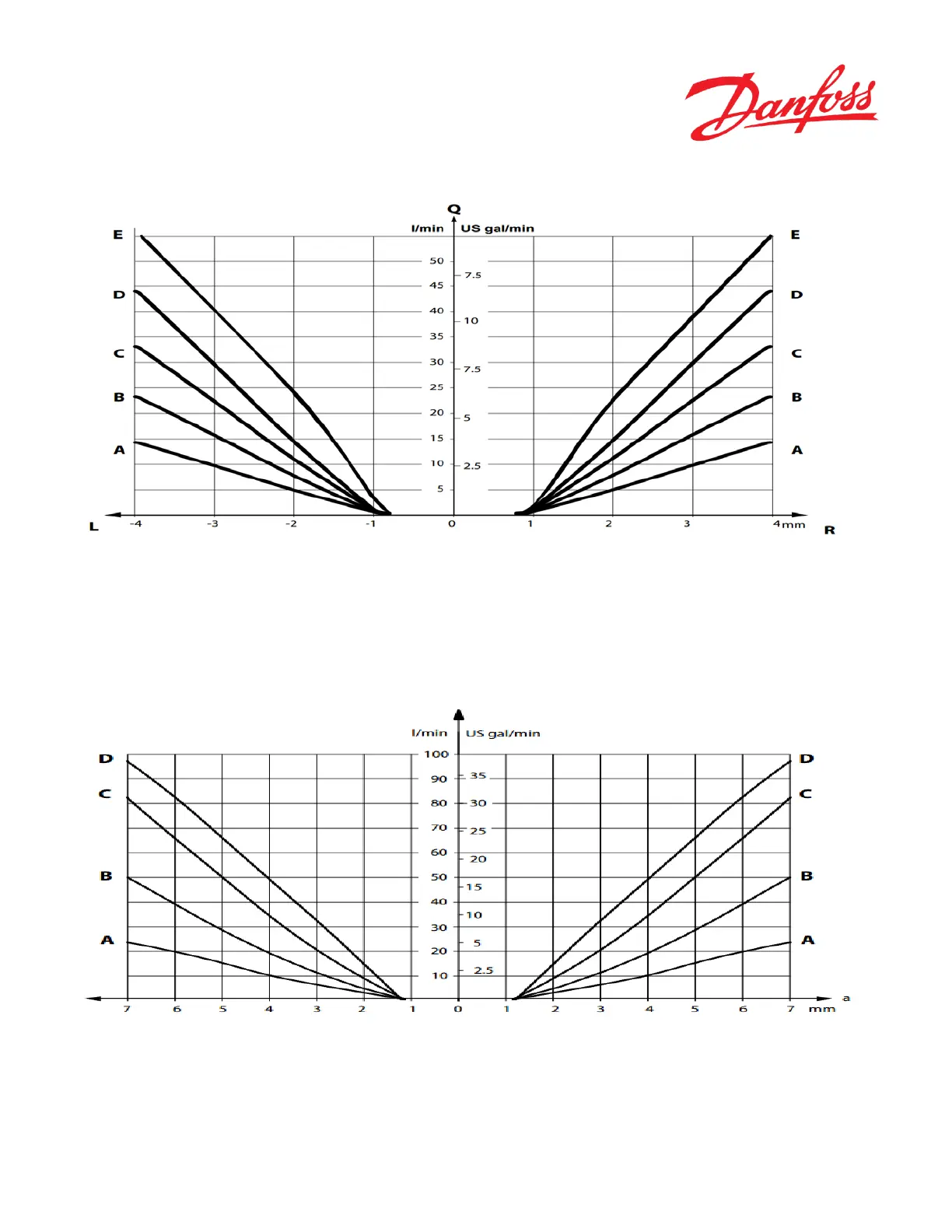

Figure 15 (a)
A: valid for spools for nominal cylinder flow CQ = 12 l/min
B: valid for spools for nominal cylinder flow CQ = 20 l/min
C: valid for spools for nominal cylinder flow CQ = 30 l/min
D: valid for spools for nominal cylinder flow CQ = 40 l/min
E: valid for spools for nominal cylinder flow CQ = 50 l/min
For EHPS following spools are available
Figure 15 (b)
A: valid for spools for nominal cylinder flow CQ = 20 l/min
B: valid for spools for nominal cylinder flow CQ = 40 l/min
C: valid for spools for nominal cylinder flow CQ = 60 l/min
D: valid for spools for nominal cylinder flow CQ = 80 l/min
