50 | Ā© Danfoss | August 2018 AQ00000211
(P3428)Ā° (P3426)Ā°
R
WB
Ī Ī

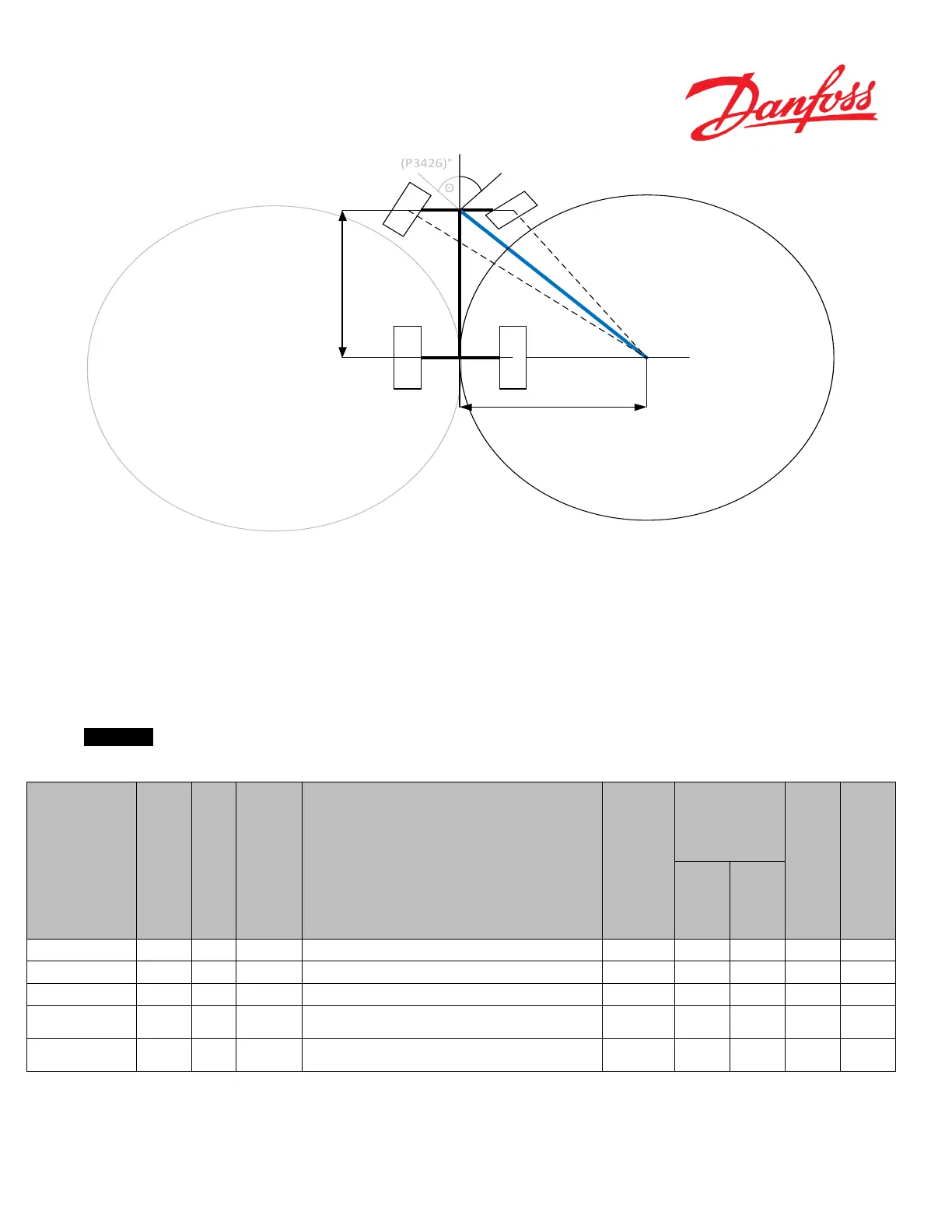

Figure 17
For most vehicles, the max steering angle, left and right, would be the same (as the vehicle has the same turning radius,
left and right). For those vehicles, the value for parameters P3426 and P3428 will be the same. But some vehicles have
different turning radii left versus right, hence the exercise of steering into the smallest circle possible must be done to
both left and right, for obtaining the two Ī-angles.
For an articulated vehicle, the maximum steer angle (left and right) is the maximum steer angle from the joint-sensor,
given in degrees, each with reference to straight ahead. If two sets of joint angle sensors are mounted, then use the values
from the primary joint angle sensor.
Important
For articulated model, if steering sensor is placed in steering cylinder, only consider the angle in the articulation point!
Name
Description of parameter
Range
Safety critical
parameters āSā
Vehicle steering type P3421 U8 -
Vehicle steering type
Valid Values: 1 (TWO WHEEL/ACKERMANN); 2 (ARTICULATED)
OEM, Dealer 1 2 1
Wheel base A P3422 U16 mm
Distance between the axles (front or rear wheel steered vehicle only) or
between an axle and the articulation point (articulated vehicles only)
OEM, Dealer 1000 10000 4000
Wheel base B P3424 U16 mm
Distance between the other axle and the articulation point (articulated
vehicles only)
OEM, Dealer 1000 10000 4000
Maximum steer angle,
left
P3426 U16 Deg
Maximum steer angle to left side
Note: Writing values >89 will force to use automatic adjusted
maximum steer angle, Left-value on WAS calibration
OEM, Dealer 0 65535 35
Maximum steer angle,
right
P3428 U16 Deg
Maximum steer angle to right side
Note: Writing values >89 will force to use automatic adjusted
maximum steer angle, Right-value on WAS calibration
OEM, Dealer 0 65535 35
Table 20
