CD820 Instant Issuance System User’s Guide 23

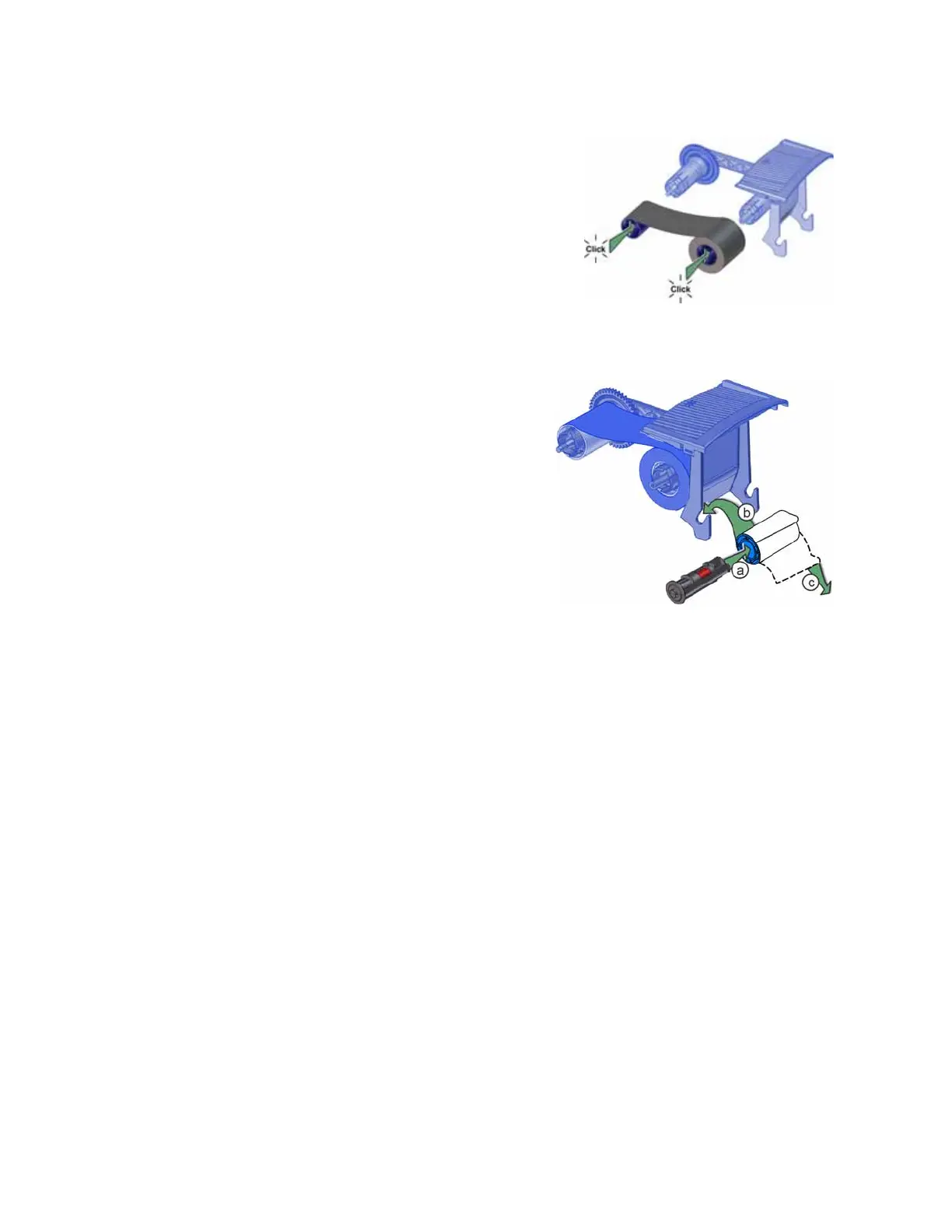

4. Load a full roll of print ribbon (the blue spool) onto
the spindle closest to the cartridge handle until it
clicks into place.
5. Place the silver take-up spool on the spindle with the
black gear until it clicks into place.
6. Wind the take-up spool counterclockwise one full
turn.
Load the Cleaning Sleeve
Load a new cleaning sleeve when you load a new roll
of print ribbon, when you notice debris on the
printed cards, or when the cleaning sleeve is no
longer sticky.
1. Remove the cleaning roller spindle with the used
cleaning sleeve from the ribbon cartridge.
2. Remove the used cleaning sleeve from the
spindle and discard it.
3. Slide the spindle into a new cleaning sleeve (a).
4. Place the spindle with the cleaning sleeve onto
the ribbon cartridge (b).
5. Remove the protective wrapper from the cleaning sleeve (c).
