EX300 disk drives
Describes the disk drives that are integrated into the server chassis of the EX300 appliance.
EX300 nodes contain twelve 3.5 inch SATA front-accessible, hot-swappable drives in slots 0 to 11. Disk size can be 1 TB, 2 TB, 4
TB, 8 TB, or 16 TB. All drives within a node must be of the same drive size, but there can be nodes of differing drive sizes within
a rack. In PCIe slot 1 of each node there is a 480 GB Boot Optimized Storage Subsystem (BOSS) controller card with one M.2
stick.

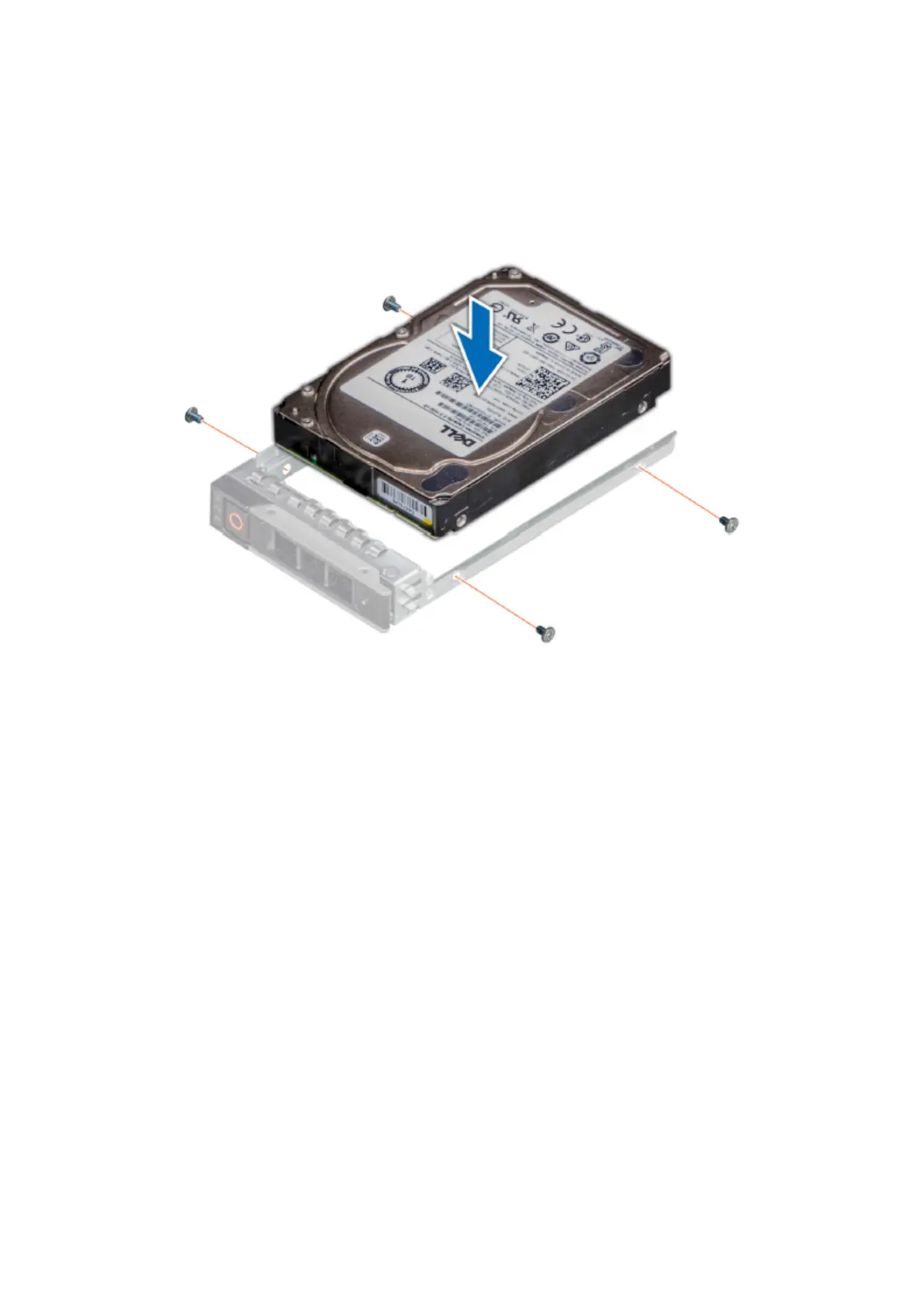

Figure 79. EX300 disk drive in carrier
EX300 power cabling
Provides EX300 ECS appliance cabling diagrams for single-phase AC power and three-phase delta and wye AC power.
Use the power and weight calculator to refine the power and heat values to more-closely match the hardware configuration for
your system. The calculator contains the latest information for power and weight planning.
