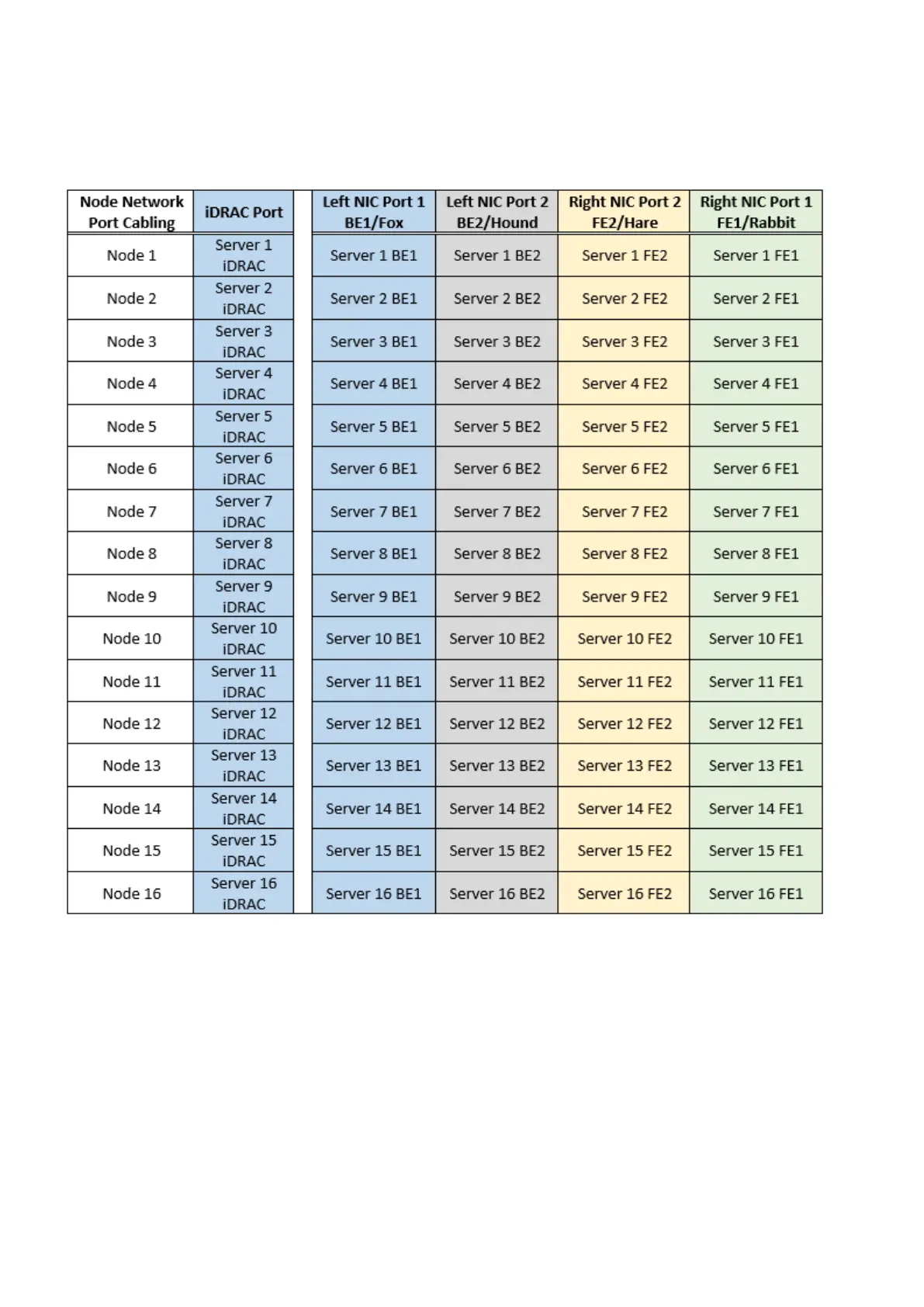

The EX500 node port to the iDRAC, back-end switch, and front-end switch port connections are listed in the following table.

Figure 61. EX500 node network port cabling connections

EX500 Platform 87
