The EX300 node port to the iDRAC, back-end switch, and front-end switch port connections are listed in the following table.

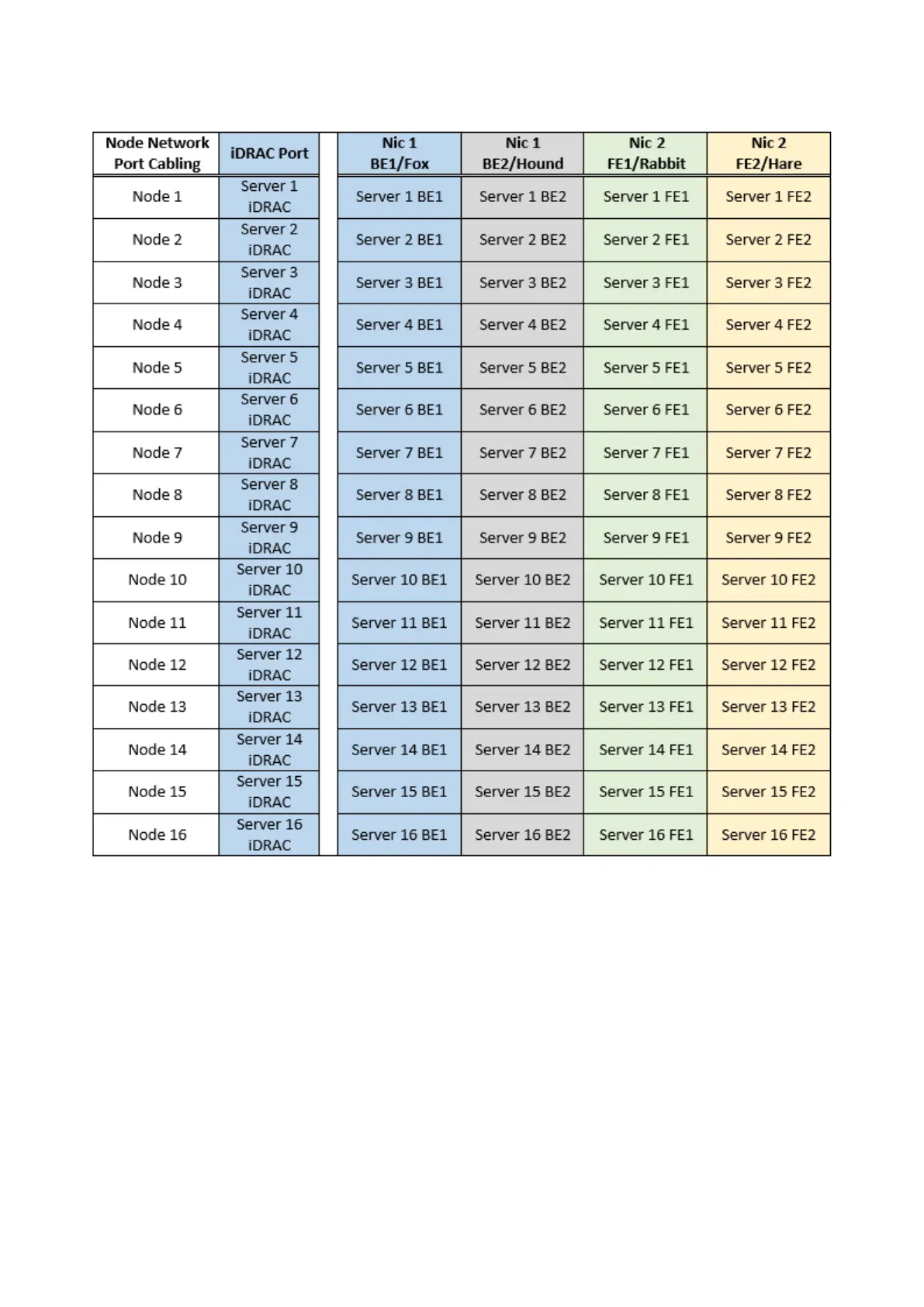

Figure 92. EX300 node network port cabling connections
EX300 Platform
115
