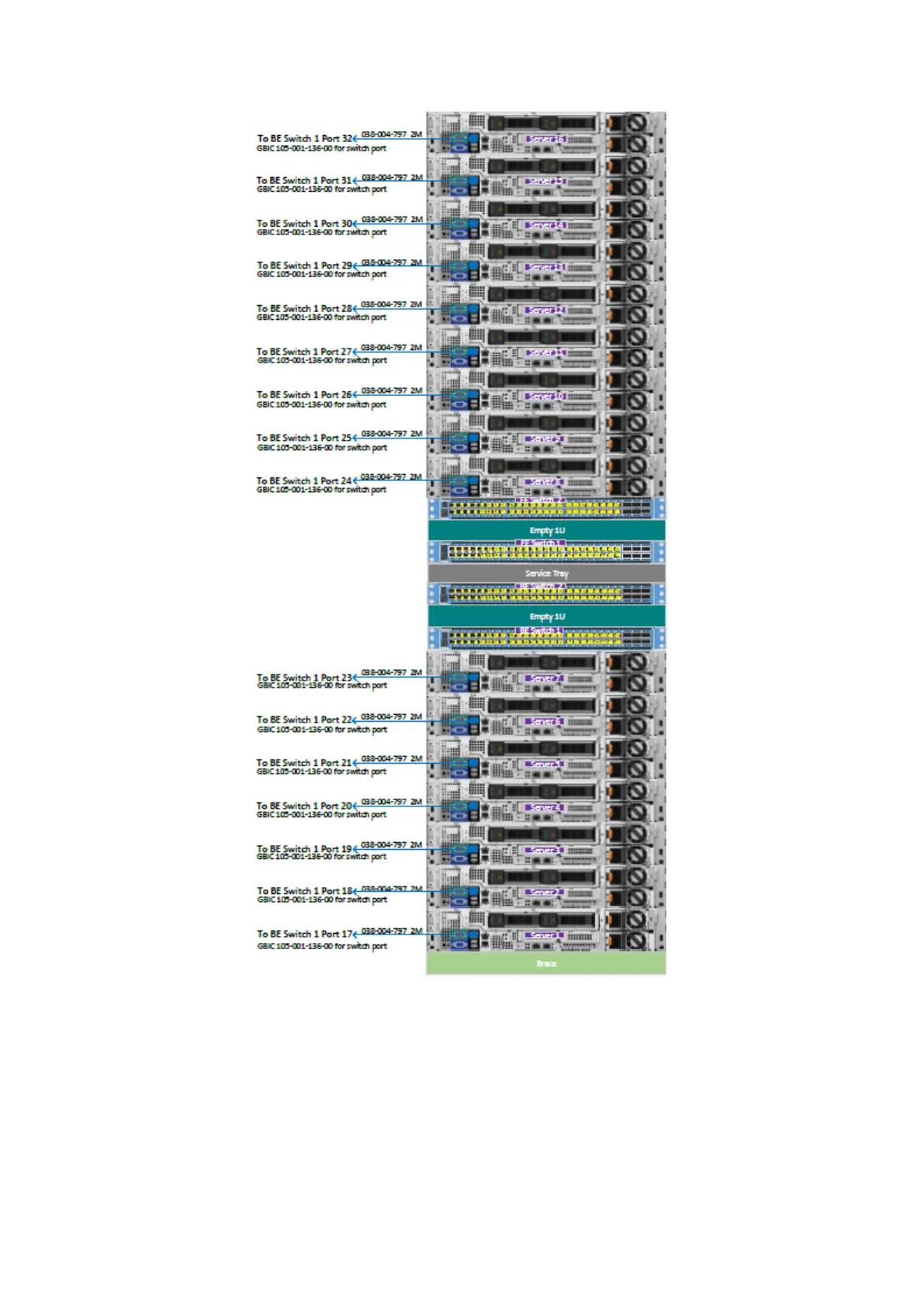

Figure 56. iDRAC cabling
EX500 network cabling
The network cabling diagrams apply to the EX500 appliance in a Dell EMC or customer-provided rack.
Customers connect to an EX500 appliance by way of 25GbE ports on the front-end switches. For an EX500 appliance, the
25GbE ports run at 25GbE. Customer configurations can include 25GbE front-end switches provided by Dell EMC or customers
may provide their own front-end switches.
To distinguish between the two front-end switches and the two back-end switches, each switch has a nickname:
82
EX500 Platform
