Dell ECS EX Series User Manual

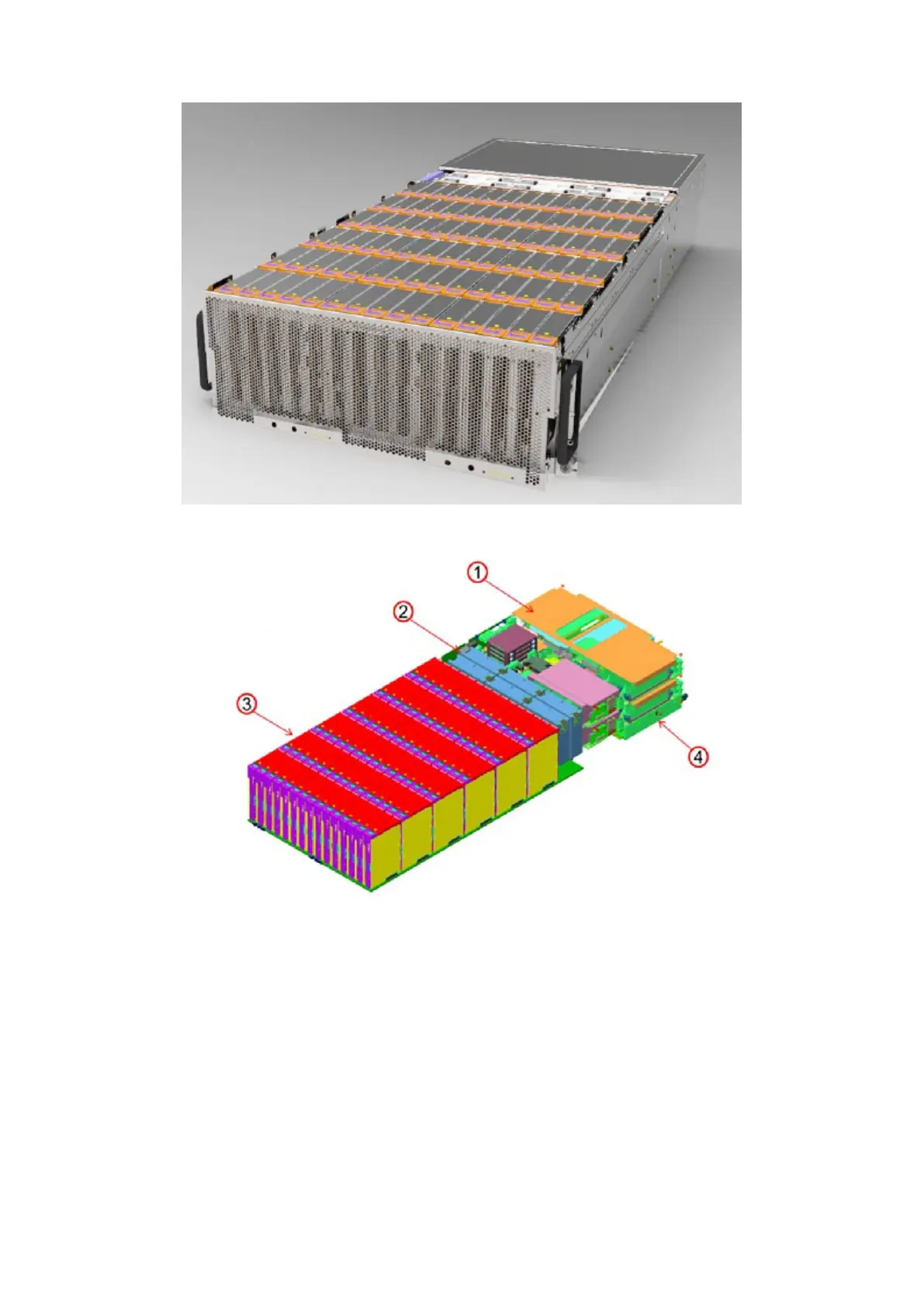

Figure 106. EX3000 external chassis view
Figure 107. EX3000 internal chassis view
1. Server sled (one or two depending on whether the EX3000 system is single- or dual-node chassis configuration)
2. Fan module (6)
3. 3.5-inch HDDs (up to 90)
4. PSU unit (2 for an EX3000S single node and 4 for an EX3000D dual node)
EX3000 Platform
129
