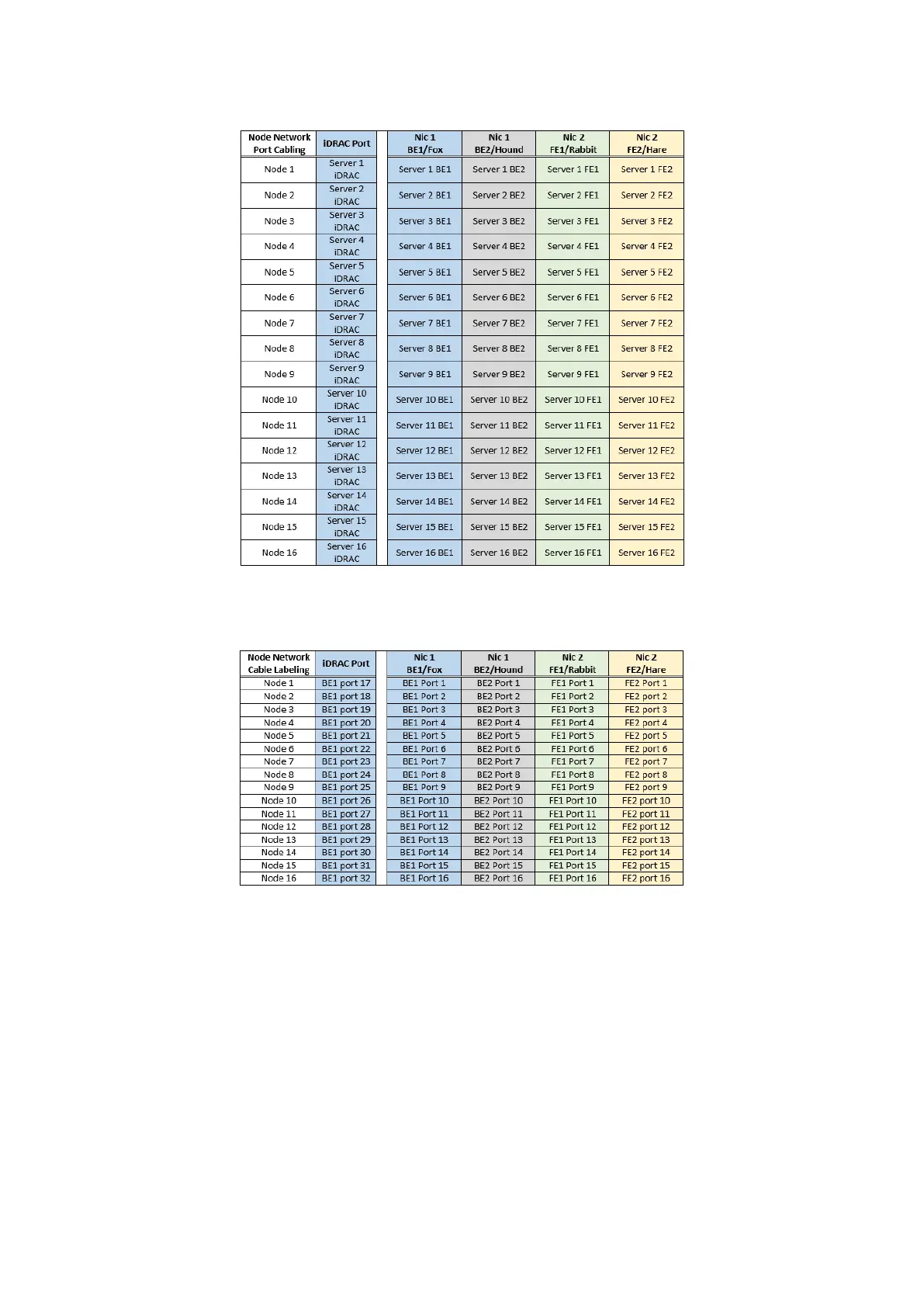

The EXF900 node port to the iDRAC, back-end switch, and front-end switch port connections are listed in the following table.
Figure 39. EXF900 node network port cabling connections
The EXF900 node network cable labeling is listed in the following table.
Figure 40. EXF900 node network cable labeling
56
EXF900 Platform

Dell ECS EX Series Specifications
