Delta ASDA-B2-F Series User Manual

ASDA-B2-F Control Mode of Operation
September, 2015 6-13
6
Command End Low-pass Filter
It is usually used to eliminate the unwanted high-frequency response or noise. It also can smooth
the command.
Relevant Parameters (Please refer to Chapter 7 for detailed description):
Parameter Abbr. Function
P1-06 SFLT
Acceleration/Deceleration Smooth Constant of Speed
Command (Low-pass Filter)

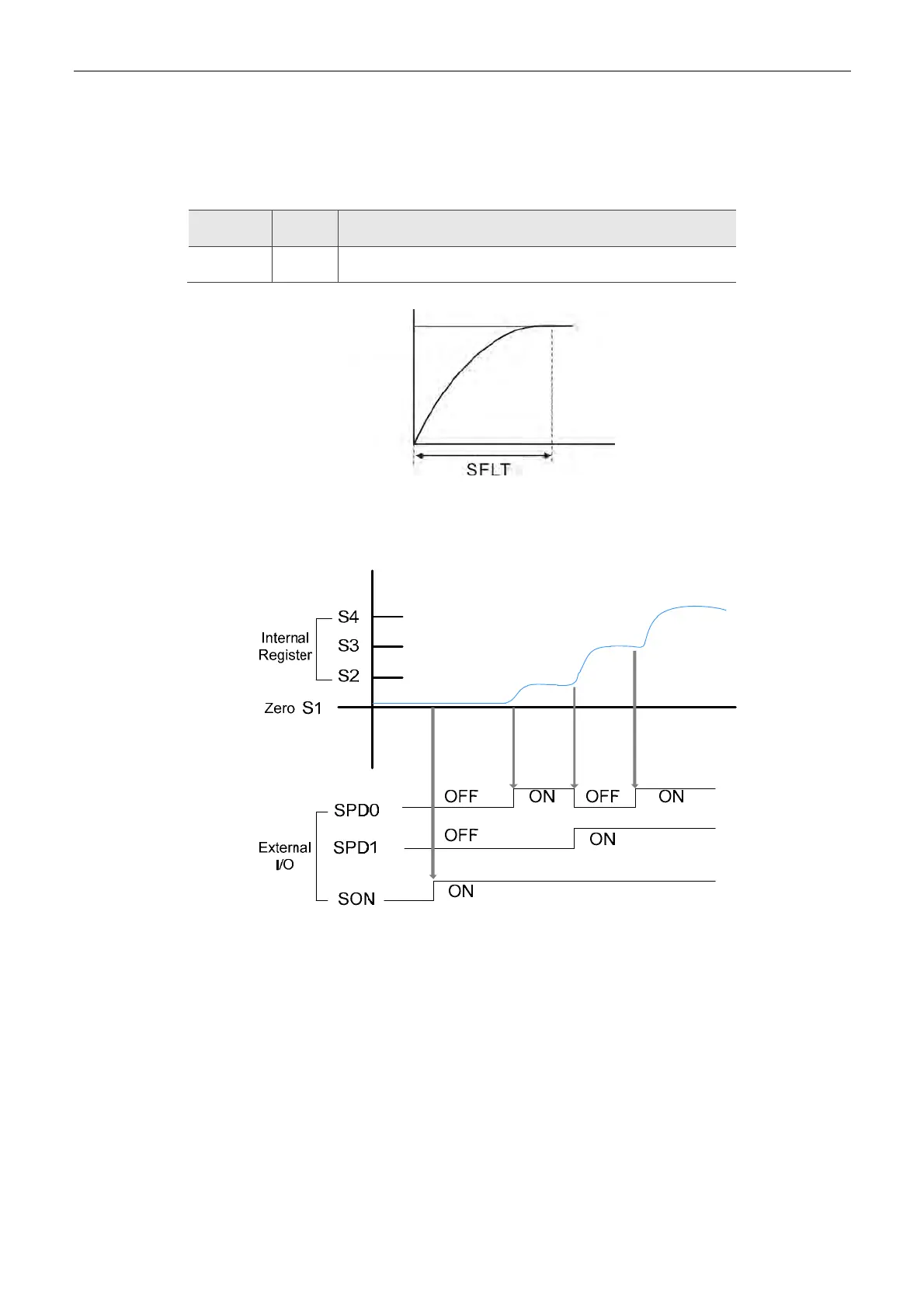

6.3.4 Timing Diagram of Speed Mode
Figure 6-7 Timing Diagram of Speed Mode
Note:
1. OFF means the contact is opened. ON means the contact is closed.
2. Speed command S1 = 0.
3. When Servo On, please select the command by switching the status of SPD0 ~ SPD1.
Target Speed
