Delta ASDA-B2-F Series User Manual

ASDA-B2-F Wiring
September, 2015 3-11
3

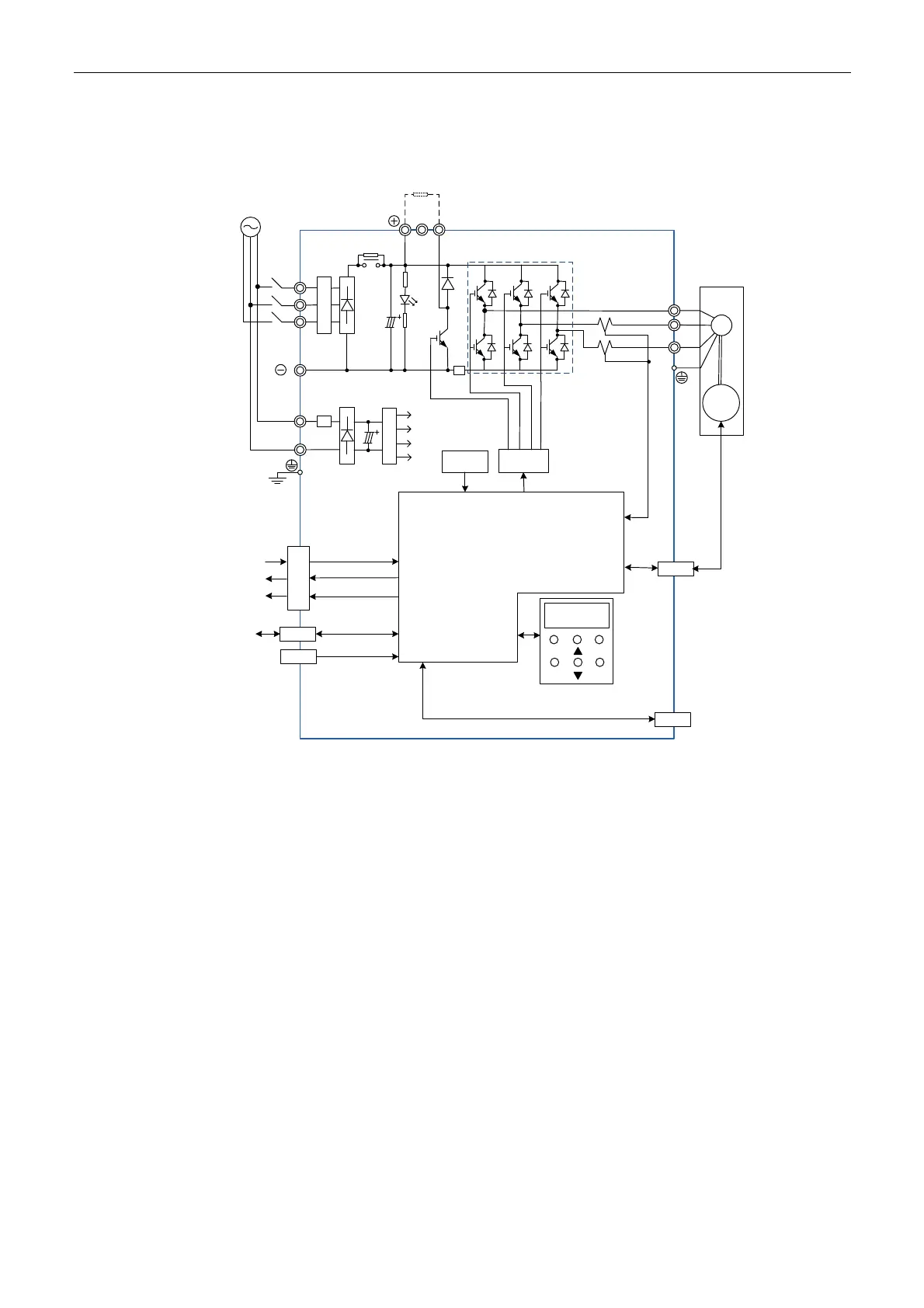

3.2 Basic Wiring
3.2.1 200 W or models below (without regenerative resistor nor fan)
Power
1-phase/3-phase
200 ~ 230 V, 200 W and below
L1 C
L2 C
Rectifier
Circuit
U
V
W
CN2
GATE
DRIVE
CN1
Digital Intput
Digital Output
A & B Output
Serial
Communication
RS-232
Display
MODE SHIFT
SETCHARGE
Encoder
Servo
Motor
M
Protection
Circuit
+3.3V
Phase Loss
Detection
Regeneration
Circuit
Control Power
±15V
+5V
+24V
C
S
T
D
R
P
Connect to external
regenerative resistor
Servo Drive
CN6
CN3
CN4Battery
DMCNET
Data Processing Unit
IPM Module
