Delta ASDA-B2-F Series User Manual

ASDA-B2-F Trial Operation and Tuning
September, 2015 5-7
5

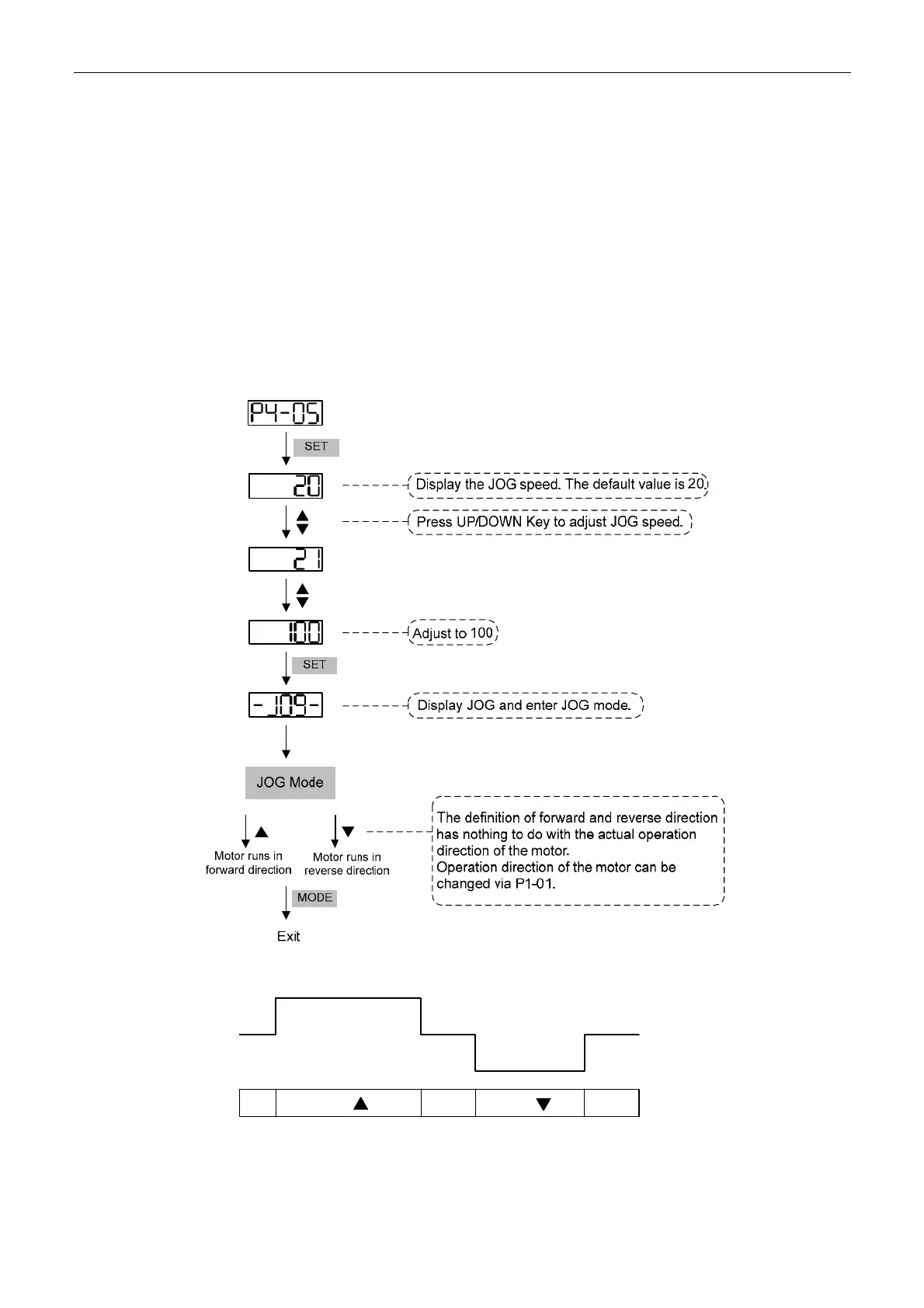

5.3 JOG Trial Run without Load
It is very convenient to test the motor and servo drive with the method of JOG trial run without
load since the extra wiring is unnecessary. For safety reasons, it is recommended to set JOG at
low speed. Please see the following descriptions.
Step 1: Use software setting to Servo On the drive. Set parameter P2-30 to 1. This setting is to
force servo on the drive through software.
Step 2: Set P4-05 to JOG speed (Unit: r/min). After setting the desired JOG speed, press the
SET key, the servo drive will enter JOG mode.
Step 3: Press the MODE key to exist JOG mode.
Release PressPress
Motor stopsSpeed 0
If the motor does not run, please check if the wiring between UVW and encoder cable is correct.
If the motor runs abnormally, please check if the UVW phase sequence is correct.
Motor runs in
forward direction
Motor runs in
reverse direction
