Delta ASDA-B2-F Series User Manual

ASDA-B2-F Installation
September, 2015 2-3
2
The ambient temperature of the motor is between 0°C and 40°C and the ambient conditions should be:
 No over-heat device.
 No water drop, vapor, dust or oily dust.
 No corrosive and inflammable gas or liquid.
 No airborne dust or metal particles.
2.4 Installation Direction and Space
Notes:
 Incorrect installation may result in a drive malfunction or premature failure of the drive and
or motor.
 In order to ensure the drive can be well-cooled and the environment is well circulated,
sufficient space between adjacent object and the baffle is needed.
 Ensure all ventilation holes are not obstructed. Do not install the drive in a horizontal
direction or malfunction and damage will occur.

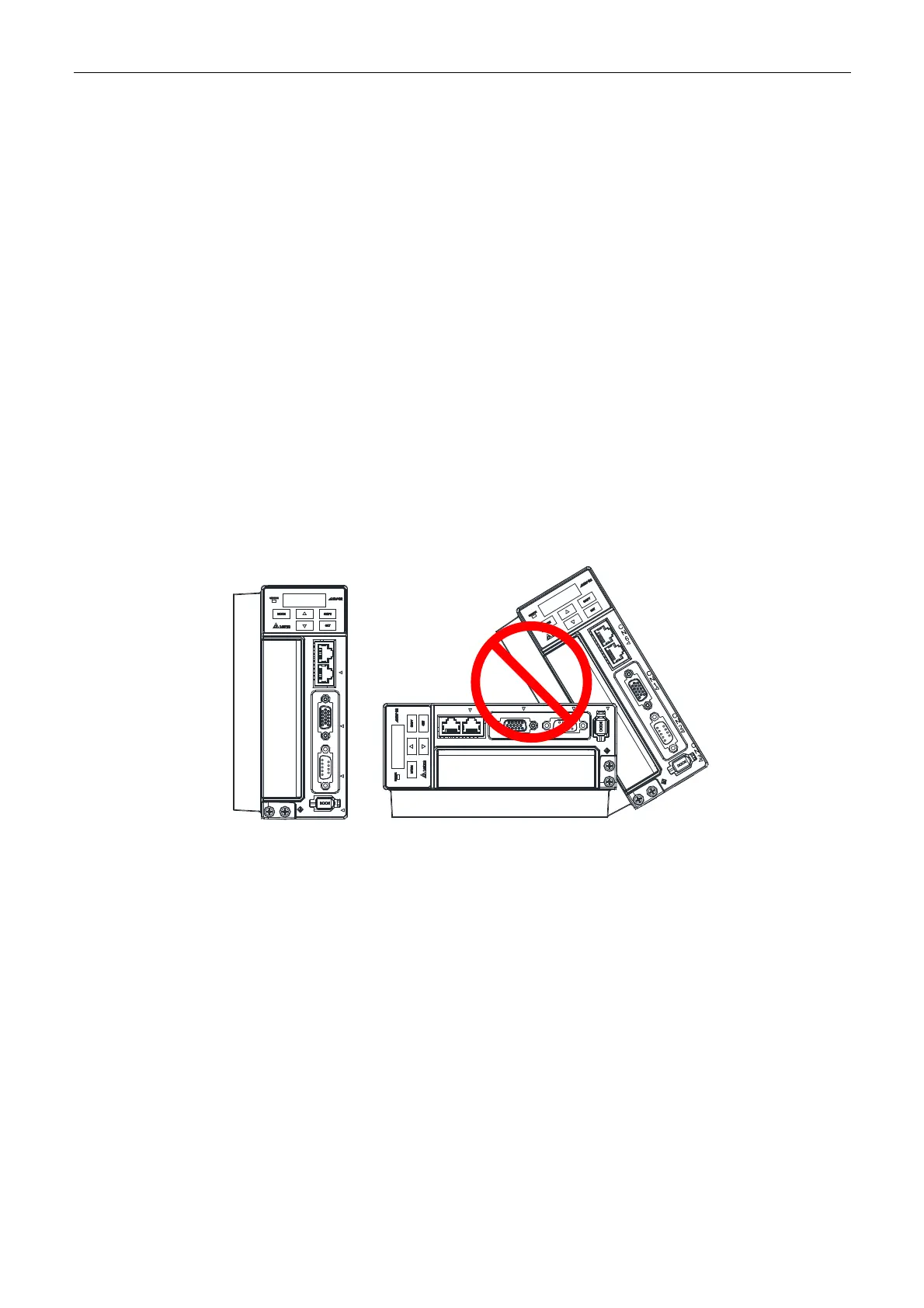

Correct Incorrect
C
N
1
C
N
2
C
N
3
C
N
6
C N 1
C N 2
C N 3
C N 6
Installing servo drives:
ASDA-B2-F series servo drive should be mounted perpendicular to a dry and solid surface that
conforms to NEMA standards. To ensure a well-ventilated environment, sufficient space between
adjacent object and the baffle is required. 50 mm (approx. 2 inch.) of clearance is suggested. If
wiring is needed, please leave the space for it. Please note that the rack or the surface shall
conduct heat well, so as to avoid the overheating of servo drive.
