ASDA-B2-F Control Mode of Operation
September, 2015 6-5
6
Relevant Parameters (Please refer to Chapter 7 for detailed description):
Parameter Abbr. Function
P1-34 TACC Acceleration Constant of S-Curve
P1-35 TDEC Deceleration Constant of S-Curve
P1-36 TSL Acceleration/Deceleration Constant of S-Curve
6.2.3 Electronic Gear Ratio
Relevant Parameters (Please refer to Chapter 7 for detailed description):
Parameter Abbr. Function
P1-44 GR1 Gear Ratio (Numerator) (N1)
P1-45 GR2 Gear Ratio (Denominator) (M)
ElectronicGearRatio  󰇛


󰇜


has to match





 5000
Electronic gear provides simple ratio change of travel distance. The high electronic gear ratio
would cause the position command to be stepped command. S-curve or low-pass filter can be
used to improve the situation. When electronic gear ratio is set to 1, the motor will run one turn
every 10000 PPR. When electronic gear ratio is changed to 0.5, then every two pulses from the
command will be referred to one PUU of the motor encoder.
For example, after setting the electronic gear ratio properly, the moving distance of the object is 1
μm/pulse, which is easier to use.
- Gear Ratio
Moving Distance of Each Pulse Command
Electronic gear
is not applied.
1
1

m
10000
3000
25004
10003
 



Electronic gear
is applied.
3000
10000

m

1


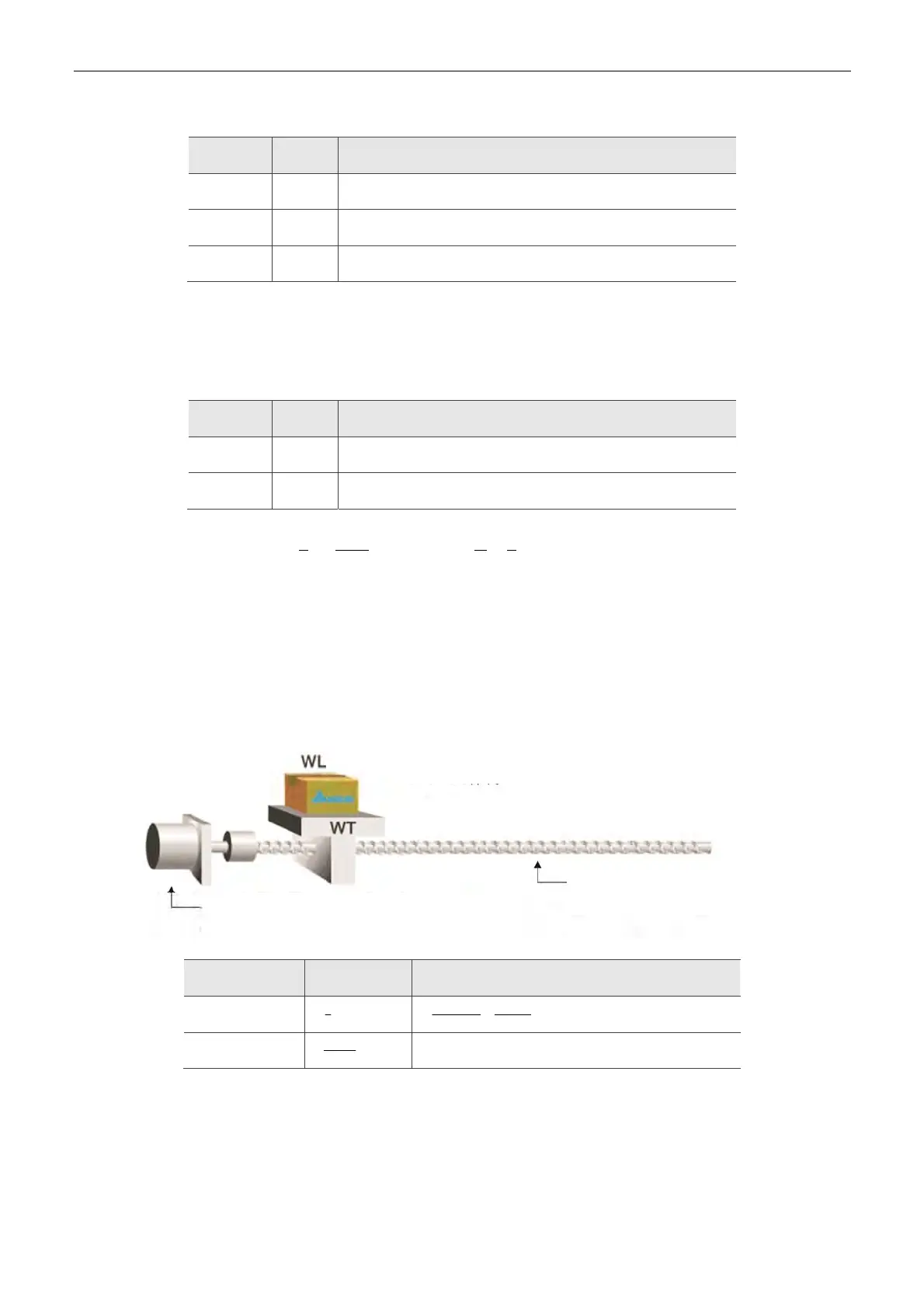

WL: Working Load
WT: Work Piece
Motor (Encoder resolution: A/B, Z)
Encoder PPR: 2500 pulse
Ball Screw
Pitch: 3 mm
