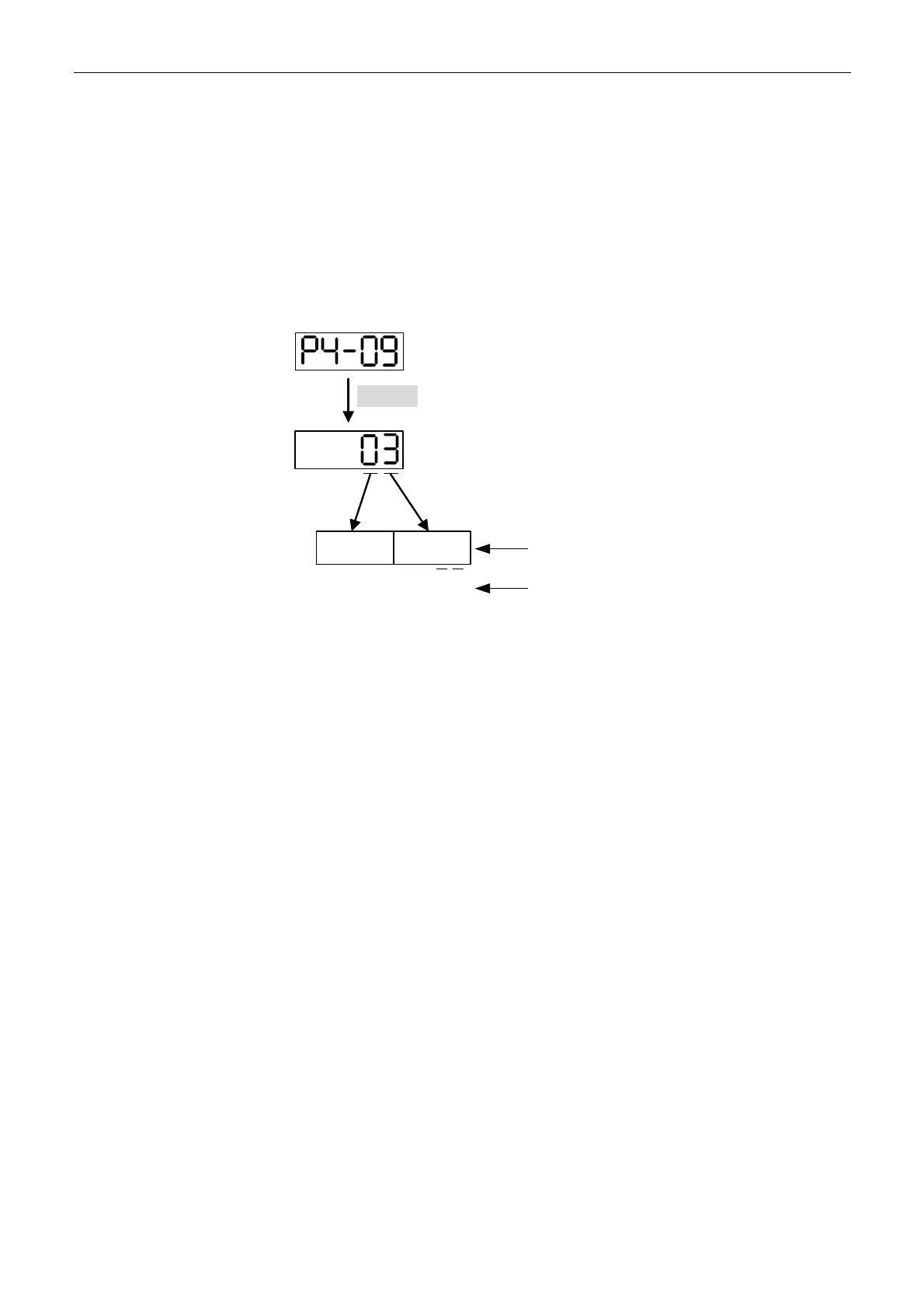

4.4.5 Digital Output Diagnosis Operation
Enter the Diagnosis Mode – DO by the following setting methods. The output signal DO1 ~ DO2
is ON and the corresponding signal will be shown on the panel. It is displayed by bit. When it
shows 1, it means the DO is ON.
For example, if it shows 03, 3 is in hexadecimal format, it will be 0011 when it transfers to binary
format. Then, DO1~DO2 is ON.
SET
0000 0011
DO
2
DO
1
Corresponding
DO Status
Binary Code
The panel displays in
hexadecimal format.
(Display in hexadecimal format)
