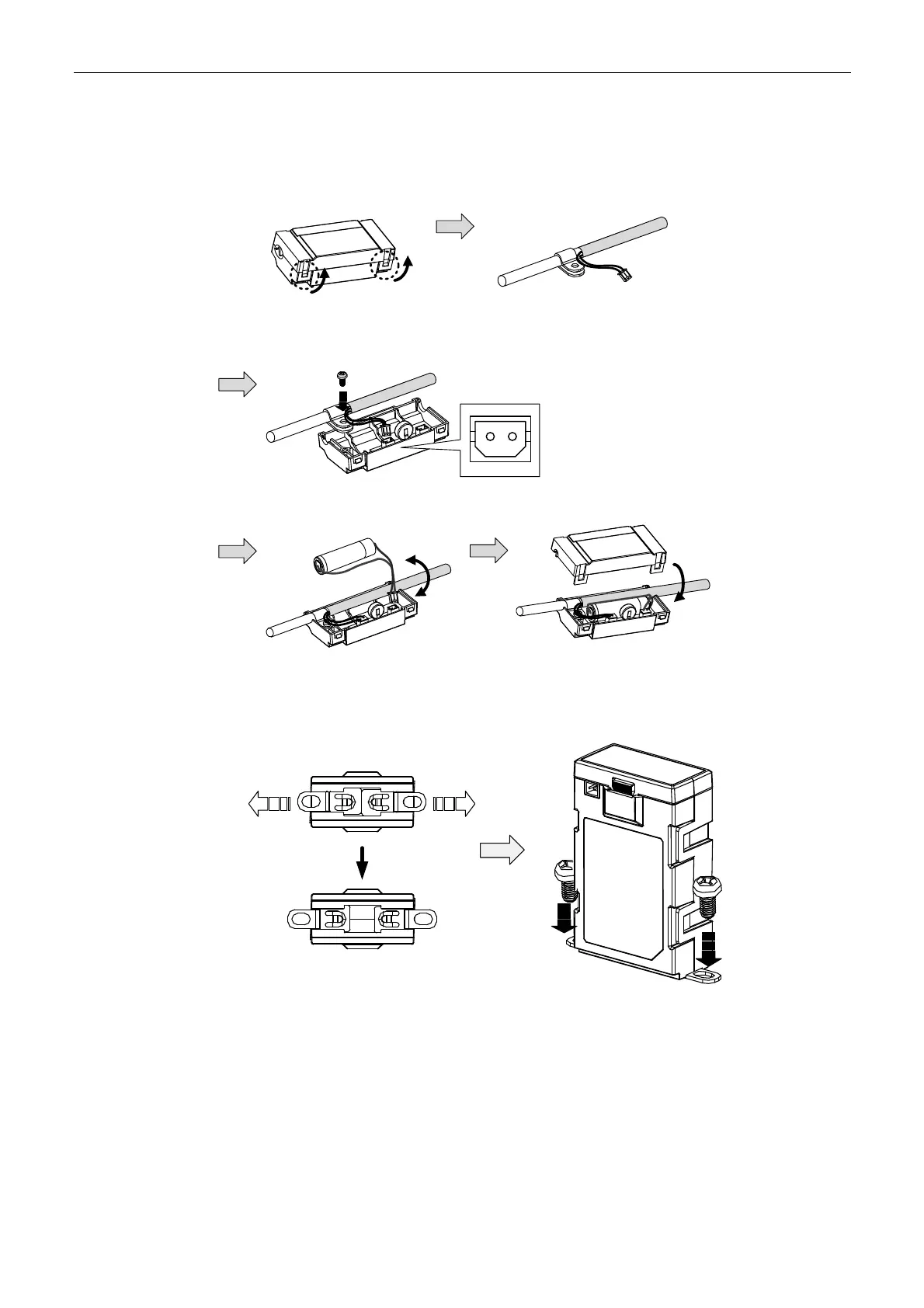

10.2.2 How to Install the Battery
Single Battery Box
Dual Battery Box
Pull the retaining rings from
the bottom of the battery box.
See the figure below.
Tighten the screws to
secure the battery box.
Put the metal clip on
connection cable. Please
note that the metal clip
should be put close to the
heat shrink.
Install a new battery and
connect it to the cable
Loosen the hooks on both sides to
open the lid of battery box.
Place the cable into the box
and cover the lid back.
heatshrink
metal clip
① Plug the connection cable
② Tighten the screw
②
①
12
