ASDA-B2-F Absolute System
September, 2015 10-5
10

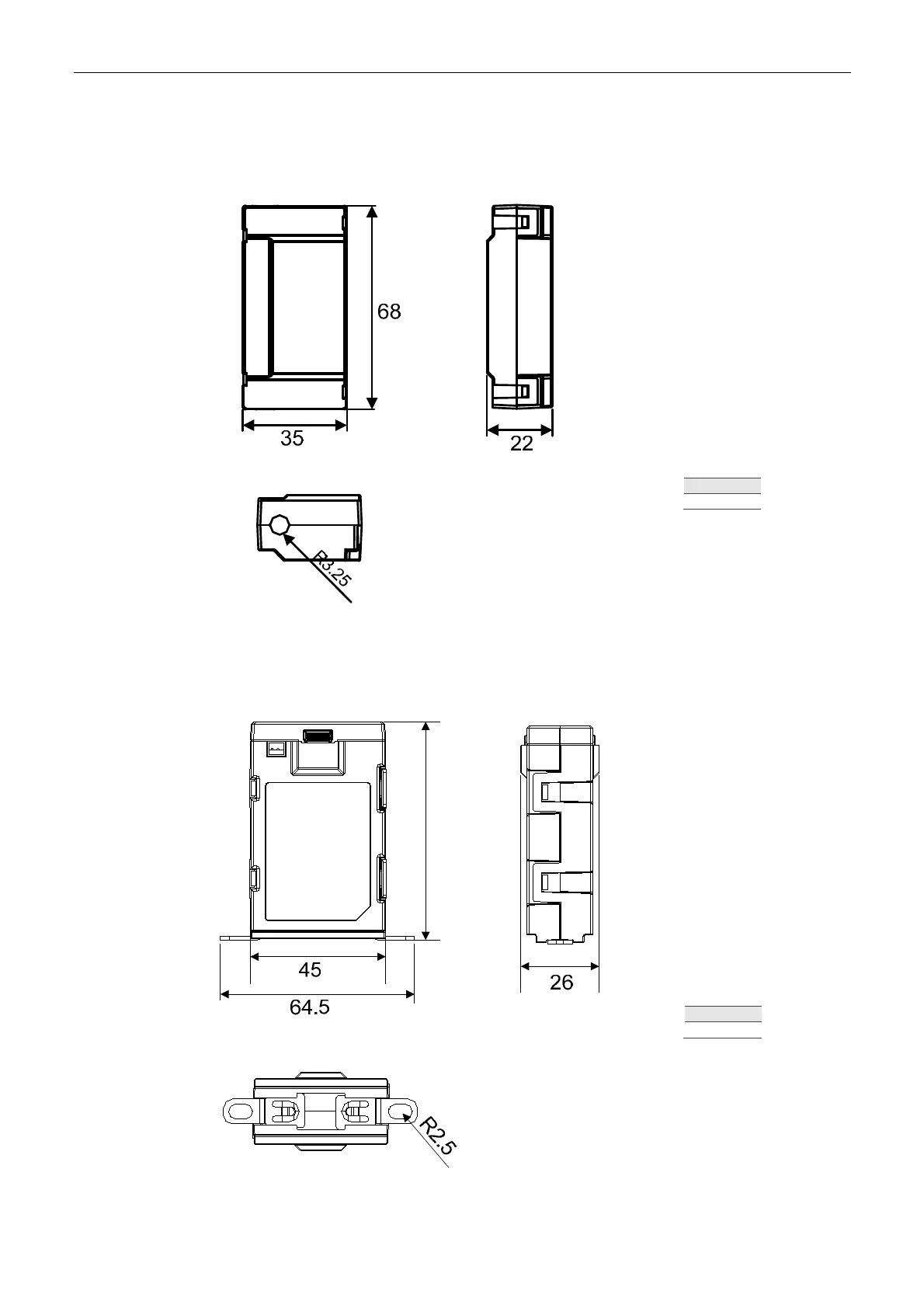

10.1.2 Battery Box Dimensions
Single battery box
Delta Part Number: ASD-MDBT0100
Unit: mm
Weight
44 g
Dual battery box
Delta Part Number: ASD-MDBT0200
72.5
Unit: mm
Weight
80 g
