Denon AVR-4810 User Manual


Getting Started Connections Settings Playback Remote ControlMulti-zone Information Troubleshooting SpecificationsMulti-zone
ENGLISH

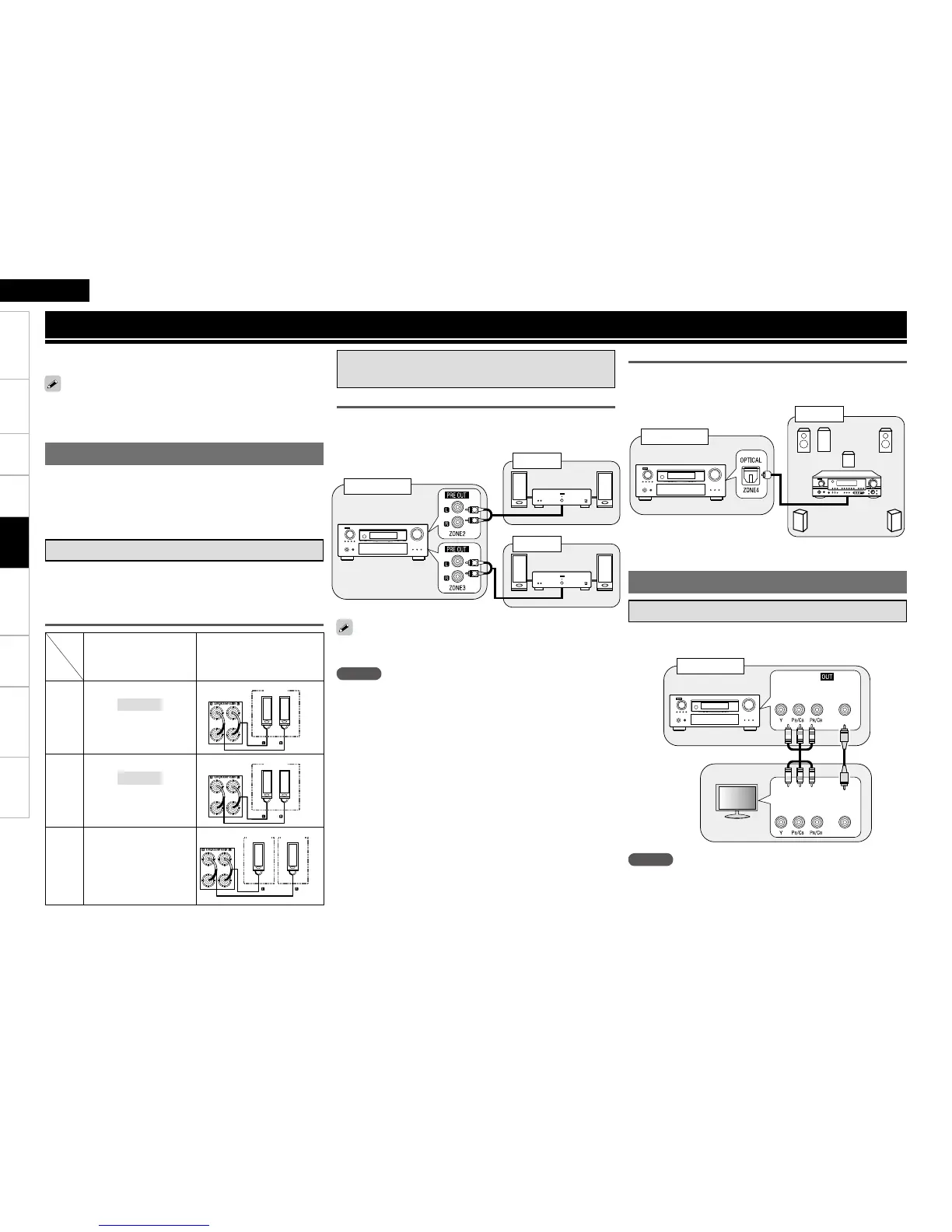

Playing in ZONE2/ZONE3/ZONE4 (Multi-zone Function)
This function allows you to play sound in rooms other than the main
zone where multi-channel sound is played.
Connecting and Setting the Speakers
“Amp Assign” mode
setting (vpage 39) and
the audio signals that
are output
Connecting the speakers
ZONE2
ZONE2
Output signal :
Stereo (L / R)
w q w q
ZONE2
ZONE3
ZONE3
Output signal :
Stereo (L / R)
w q w q
ZONE3
ZONE2
and
ZONE3
b
Mono signals are
outputted when “Amp
Assign” – “Assign
Mode” is set to “FREE”
and the signal assigned
to the power amp is set
to “Z2/Z3 (M)”.
ZONE2
ZONE3
w q w q
Audio Output
There are two methods to do this, as described below. Choose one
of the methods.
q Zone playback by speaker output
w Zone playback by audio output (PRE OUT / OPT OUT)
Use an external amplifier.
The ZONE2 and ZONE3 audio signals are output from the AVR-4810’s
SURR BACK/AMP ASSIGN speaker terminals using the amplifier
assignment function.
The source selected for ZONE2 is also output from the recording
output connectors.
NOTE
We recommend using high quality pin-plug cables for audio
connections in order to prevent noise.
When the input source to which the digital input connectors
(OPTICAL/COAXIAL) are assigned is selected in ZONE2 or ZONE3,
playback is only possible if the digital signal being input is in PCM
(2-channel) format.
It is not possible to play the digital audio signals input from the HDMI
or DENON LINK terminals in ZONE2 and ZONE3.
When certain digital signals are being input, noise may be output
from the ZONE2 and ZONE3 audio output connectors.
In ZONE4, it is not possible to select the sources with no digital input
signals (“TUNER”, “PHONO”, “iPod”, etc.).
•
•
•
•
•
Also be sure to read the operating instructions of the connected
devices.
q Zone Playback by Speaker Output
w Zone Playback by Audio Output
(PRE OUT / OPT OUT)
Video Output
The video signals of the AVR-4810’s ZONE2 video output terminal are
played by the ZONE2 monitor.
$0.10/&/5
7*%&0
;0/&
$0.10/&/5
7*%&0
7*%&0
7*%&0
*/
NOTE
It is not possible to output video signals input to the HDMI to
ZONE2.
MAIN ZONE
AVR-4810
Video Connection
Audio Connections (ZONE2, ZONE3)
The audio signals of the AVR-4810’s ZONE2 and ZONE3 audio output
terminals are output to the ZONE2 and ZONE3 amplifiers and played
on these amplifiers.
"69*/
"69*/
R
L
R
L
AVR-4810
MAIN ZONE
ZONE2
ZONE3
Digital Audio Connections (ZONE4)
Connect audio from the ZONE4 OPTICAL OUT terminal on the AVR-
4810 to the ZONE4 amp.
Use bitstream compatible amps in ZONE4.
•
•
48
'- '3
$
4-
43
MAIN ZONE
ZONE4
AVR-4810

Denon AVR-4810 Specifications

General

Impedance	8 Ω
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.05 %
Equalizer	Yes
Product color	Black
S-Video inputs quantity	7
Component video (YPbPr/YCbCr) in	3
HDMI ports quantity	6
Connectivity technology	Wired & Wireless
Headphone connectivity	3.5 mm
Digital audio optical out	1

Weight and Dimensions

Weight	19100 g
