q Power operation button
(ON/STANDBY) ··········································· (27)
w Power indicator (hON jOFF) ················· (27)
e Power switch ·············································· (27)
r Door
When you are using buttons and/or terminals
behind the door, press the bottom of the door to
open it. When not using buttons and/or terminals
behind the door, close it. Be careful not to catch
your fingers when closing the door.
t QUICK SELECT buttons ·····························(91)
y MASTER VOLUME control knob ··············· (76)
u AUDYSSEY
DYNAMIC VOLUME™ indicator ················ (84)
i AUDYSSEY DSX™ indicator ····················· (84)
o Master volume indicator
Q0 Display
Q1 Remote control sensor ································ (3)
Q2 SOURCE SELECT knob ······························ (30)
Q3 SOURCE button ·········································· (30)
Q4 TUNING PRESET button ···························· (67)
Q5 ZONE 2/3/4 / REC SELECT button ······ (89, 97)
Q6 VIDEO SELECT button ·······························(60)
GWith the door openH
W7 HDMI IN connector ····································· (17)
W8 USB (iPod DIRECT) port ····························· (23)
W9 STATUS button ··········································(87)
E0 DSX button ·················································(84)
E1 RESTORER button ······································ (85)
E2 DIRECT/STEREO button ······················(79, 80)
E3 PURE DIRECT button ································· (80)
E4 DSP SIMULATION button ·························· (79)
E5 STANDARD button ····································· (78)

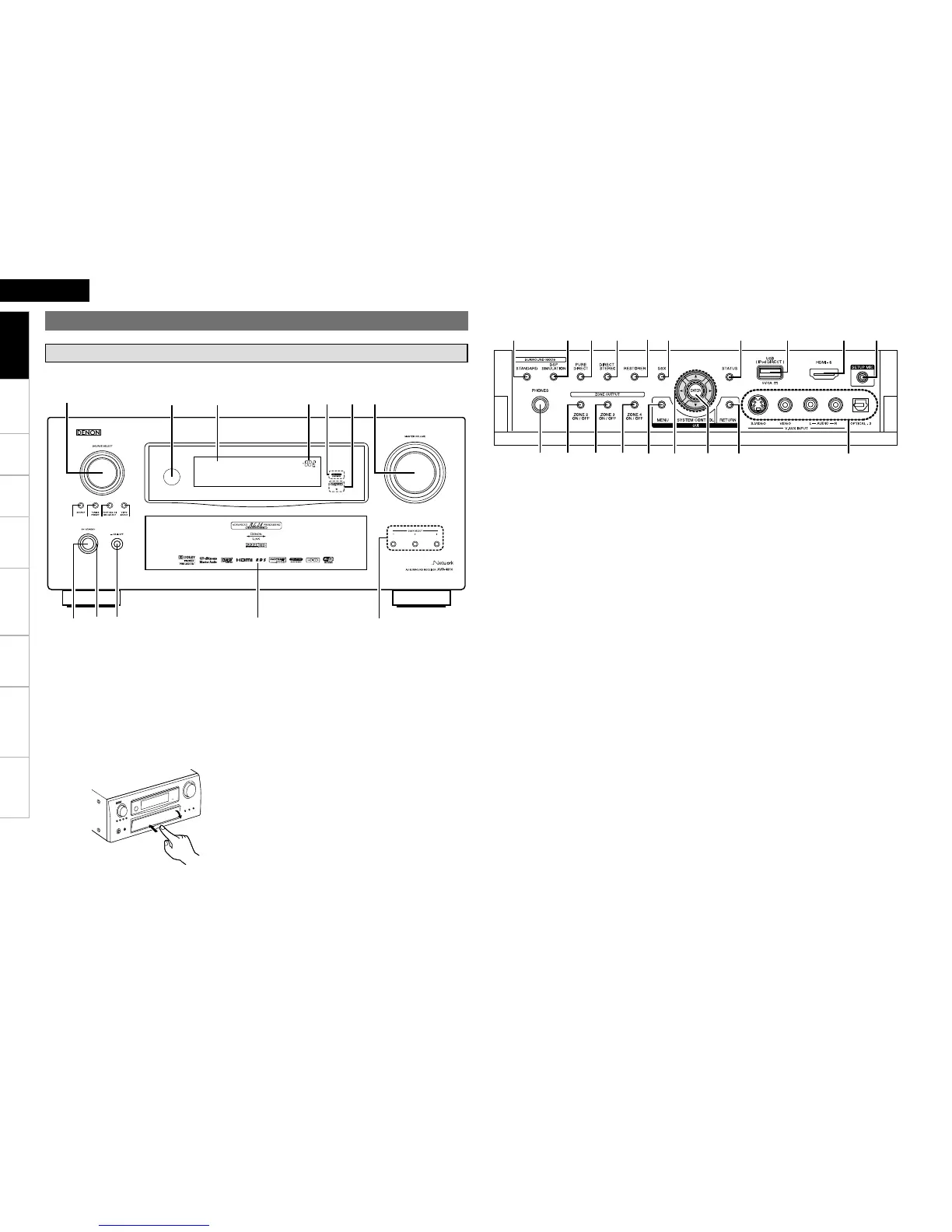

Front Panel
Q7 Headphones jack (PHONES) ······················ (76)
Q8 ZONE2 ON/OFF button ······························ (97)
Q9 ZONE3 ON/OFF button ······························ (97)
W0 ZONE4 ON/OFF button ······························ (97)
W1 MENU button ·············································· (29)
W2 Cursor buttons (uio p) ·························· (29)
W3 ENTER button ············································· (29)
W4 RETURN button ·········································· (29)
W5 V.AUX INPUT connectors ·························· (23)
W6 SETUP MIC jack ·········································· (32)
Getting Started
