Getting Started Connections Settings Playback Remote ControlMulti-zone Information Troubleshooting SpecificationsSettings
ENGLISH
Audyssey MultEQ
®
XT automatically measures the acoustical
problems in the listening environment to create the best audio
experience for your home theater.
When performing Audyssey Auto Setup, the MultEQ
®
XT / Dynamic
EQ™ / Dynamic Volume™ functions become valid (vpage 83, 84).
Use the included setup microphone (DM-A409) to perform Audyssey
Auto Setup.

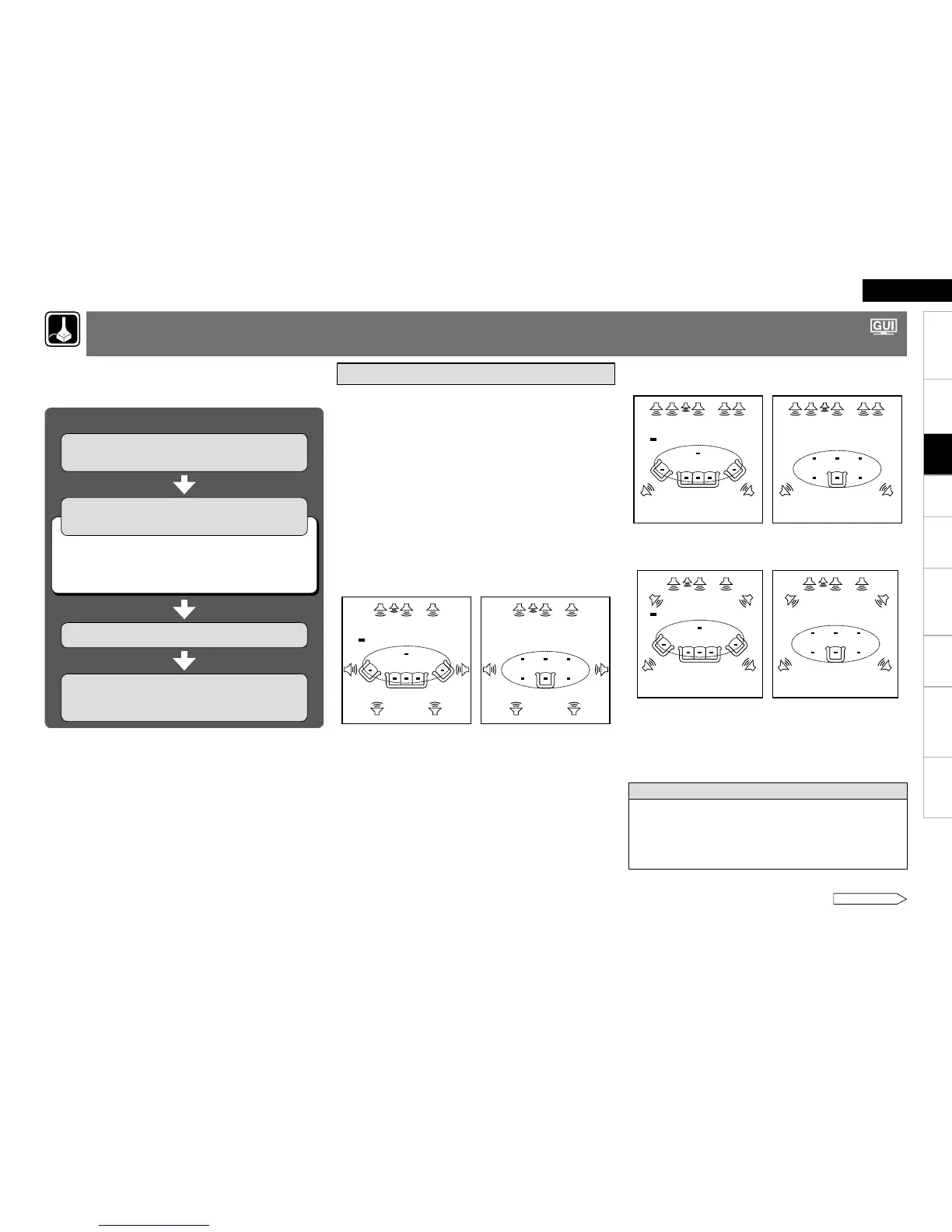

Measurements are performed by placing the setup microphone
successively at multiple positions throughout the entire listening
area, as shown in GExample qH. For best results, we recommend
you measure in 6 or more positions, as shown in the illustration.
Even if the listening environment is small as shown in GExample wH,
measuring at multiple points throughout the listening environment
results in more effective correction.
When Using the Surround Back Speakers
GExample qH GExample wH
SRSL
SBL SBR
FL SW C FRFL SW C FR
*
M
FL SW C FRFL SW C FR
SRSL
SBL SBR
*
M
•
•
•
n
(
: Measuring positions)
Important information
The acoustic characteristics of the connected speakers and
listening room are measured and the optimum settings are made
automatically.
Audyssey Auto Setup Flown
a Connect the Included Setup Microphone
(vpage 32)
d Perform Audyssey Auto Setup (vpage 34)
s Audyssey Auto Setup Preparations
(vpage 33)
Change the Amplifier Assignment (Amp Assign)
(vpage 33)
Set the Channels You will not Use (Channel Skip)
(vpage 33)
n
n
Check the Measuring Results and Equalizer
Type after Audyssey Auto Setup
(Parameter Check) (vpage 37)
When Using the Front Height Speakers
GExample qH GExample wH
When Using the Front Wide Speakers
GExample qH GExample wH
FWL
FL SW C FR
FWR
FL SW C FR
SRSL
*
M
FWL
FL SW C FR
FWR
FL SW C FR
SRSL
*
M
FL : Front speaker (L) C : Center speaker
FR : Front speaker (R) SW : Subwoofer
FHL : Front height speaker (L) SL : Surround speaker (L)
FHR : Front height speaker (R) SR : Surround speaker (R)
FWL : Front wide speaker (L) SBL : Surround back speaker (L)
FWR : Front wide speaker (R) SBR : Surround back speaker (R)
n
n
About the main listening position (*M)
The main listening position refers to the position where listeners
would normally sit or where one would normally sit alone within the
listening environment.
Audyssey MultEQ XT uses the measurements from this position to
calculate speaker distance, level, polarity, and the optimum crossover
value for the subwoofer.
(
: Measuring positions)
(
: Measuring positions)
Make the Optimal Speaker Settings, and Correct the Room Acoustics
(Audyssey™ Auto Setup)
See overleaf
To Next Page
