Connecting Devices

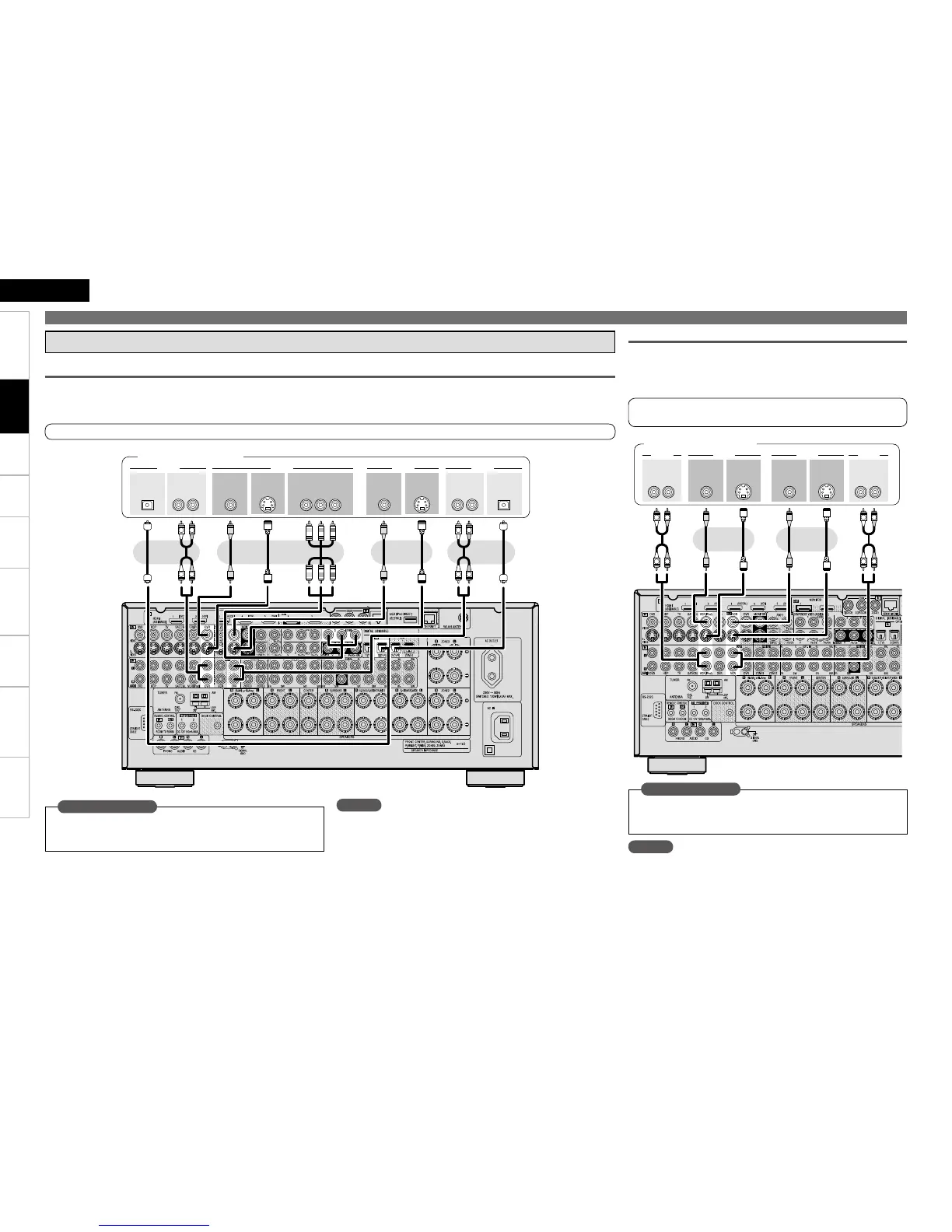

Connecting the Recording Components
Digital Video Recorder
Select the terminal to use and connect the device.
When recording analog audio, use the analog connection.
See page 89 “Recording on an External Device (REC OUT mode)” for operating instructions.
•
•
•
Video Cassette Recorder
Select the terminal to use and connect the device.
When recording analog audio, use the analog connection.
See page 89 “Recording on an External Device (REC OUT mode)”
for operating instructions.
•
•
•
R
L
R
L
R
L
R
L
3- 3-
065
*/
"6%*0"6%*0 7*%&07*%&0
065 */
015*$"-015*$"-
*/
"6%*0"6%*0
065
7*%&0 7*%&0
$0.10/&/57*%&0
: 1# 13
065
47*%&0
065
47*%&0
*/
Digital video recorder
NOTE
To record video signals through the AVR-4810, use the same type
of video cable for connection between the AVR-4810 and the player
as the cable used for connection between the AVR-4810 and the
recorder.
Set this to change the input signal to which the input source is
assigned.
“Input Assign” (vpage 57)
Set as Necessary
R
L
R
L
R
L
R
L
3-
065
"6%*0 7*%&0
"6%*0
3-
*/
"6%*0
"6%*0
065
7*%&0
47*%&0
065
7*%&0
*/
7*%&0
47*%&0
*/
Video cassette recorder
NOTE
To record video signals through the AVR-4810, use the same type
of video cable for connection between the AVR-4810 and the player
as the cable used for connection between the AVR-4810 and the
recorder.
Set this to change the input signal to which the input source is
assigned.
“Input Assign” (vpage 57)
Set as Necessary
For instructions on HDMI connections, see “Connecting Devices Equipped with HDMI Terminals” on page 17.
For instructions on HDMI connections, see “Connecting Devices
Equipped with HDMI Terminals” on page 17.
To Next Page
